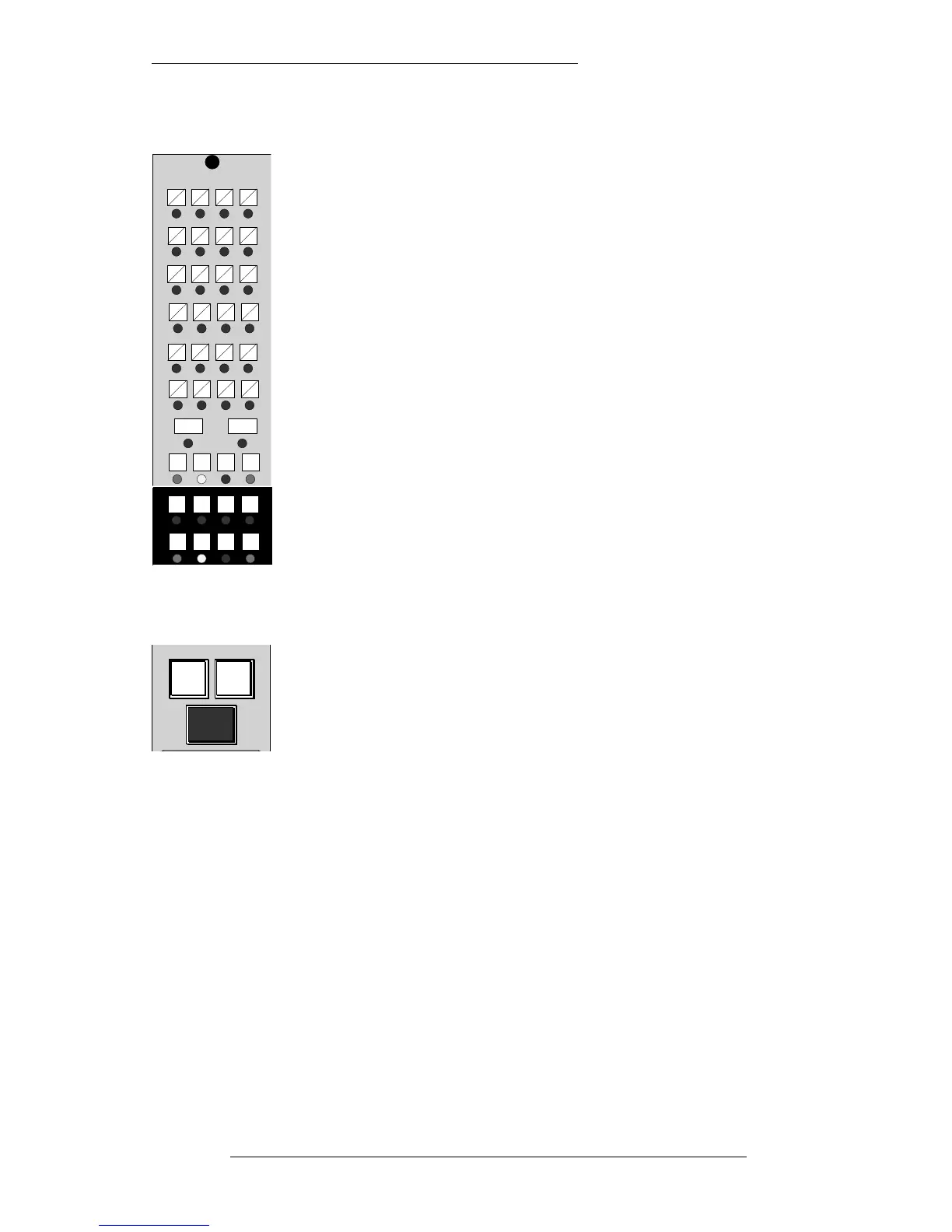

The Routing Matrix
The Routing Matrix provides access to 48 Multitrack busses and four
Stereo Subgroup busses. Bus selection is simple in operation, with
two buttons determining the Multitrack bus selection for tracks 1-24
or 25-48.
Sources for the Multitrack and Stereo Subgroup busses are
determined by the buttons beneath each section. Default selection of
Large or Small Fader sources for the Multitrack busses is made by the
master Status buttons on the SL952J but this can be overridden locally
as required (see later).
Source selections for the Stereo Subgroup busses are independent of
the master console status and may be chosen according to the job in
hand. See Page 2- 25 for a description of the EFX re-assign system.
The Monitor Input Section
The Monitor Input buttons enable two sources to be selected for the
monitor path. GROUP selects that module’s Group Output, which
also feeds the multitrack. TAPE selects the track output of the
multitrack machine. It is possible to select both of these buttons
together to get a mix of the two signals. You will find a more detailed
account of this in Section 3.
Basic Routing and Signal Flow
2-3
5.9.96
25/481/24
5678
29 30 31 32
9 10 11 12
33 34 35 36
17 18 19 20
41 42 43 44
21 22 23 24
45 46 47 48
1613 14 15
37 38 39 40
LF SF
EFX EFX
ODD EV
12 3 4
25 26 27 28
A B C D
SL911
STEREO SUB Gp
LF SF
EFX EFX
ODD EV
24
TAPEGROUP
