Solid State Logic SL 9000 J SERIES User Manual

Studio Loudspeakers and Foldback Sends

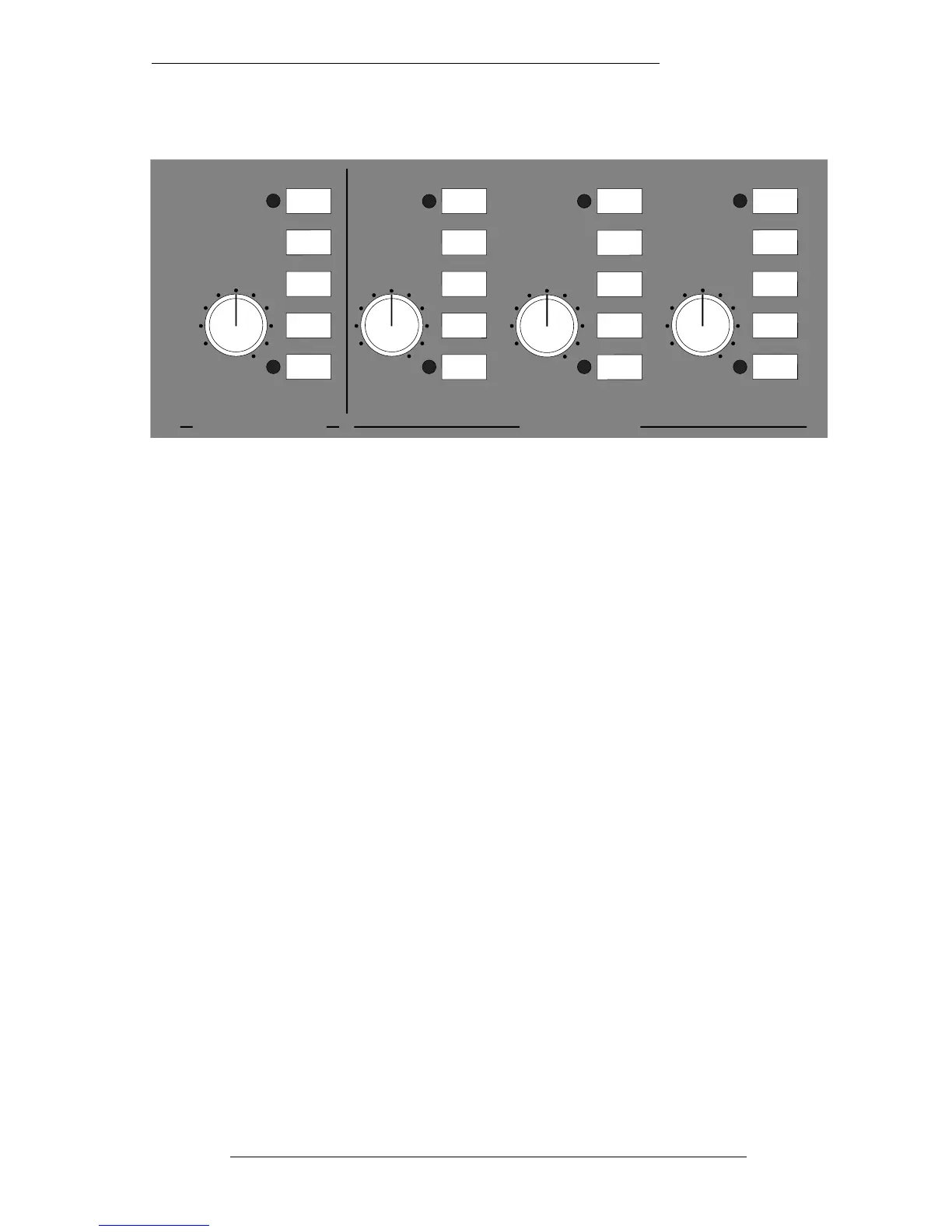

The console provides three stereo headphone outputs - FOLDBACK A, B and C plus a
stereo STUDIO LOUDSPEAKERS (SLS) output (see above).
Each output has dedicated LEVEL control, CUT, AFL and three source selector
switches. Sources can be selected separately or summed together by selecting one or
more of the switches.
The sources for the Foldback outputs are the two external source selectors (EXT 1 and
EXT 2) plus a stereo input from the patch bay. This input is usually normalled from
the Stereo Cue output, but individual consoles may be specified differently.
The sources for the SLS output are the two external source selectors (EXT 1 and EXT 2)
plus the Left and Right main outputs, pre-tone and talkback injection.
Note that the SLS feed is normally cut when the console is in RECORD status, to
prevent speaker howlround.
The Foldback outputs are cut whenever the Oscillator to BUSSES 1-48 switch is
selected.
The Centre Section
5-13
22.12.94
0
0
LEVEL
ST CUE
EXT 1
EXT 2
CUT
AFL
0
0
LEVEL
ST CUE
EXT 1
EXT 2
CUT
AFL
CUE / FX SENDS
STUDIO LOUDSPEAKERS
F/B A F/B B F/B C
STUDIO HEADPHONES
0
0
LEVEL
ST MIX
EXT 1
EXT 2
CUT
AFL
0
0
LEVEL
ST CUE
EXT 1
EXT 2
CUT
AFL
