Solid State Logic SL 9000 J SERIES - FX ODD and FX EVEN Routing

SL 9000 J Console Operator’s Manual
2-24
5.9.96

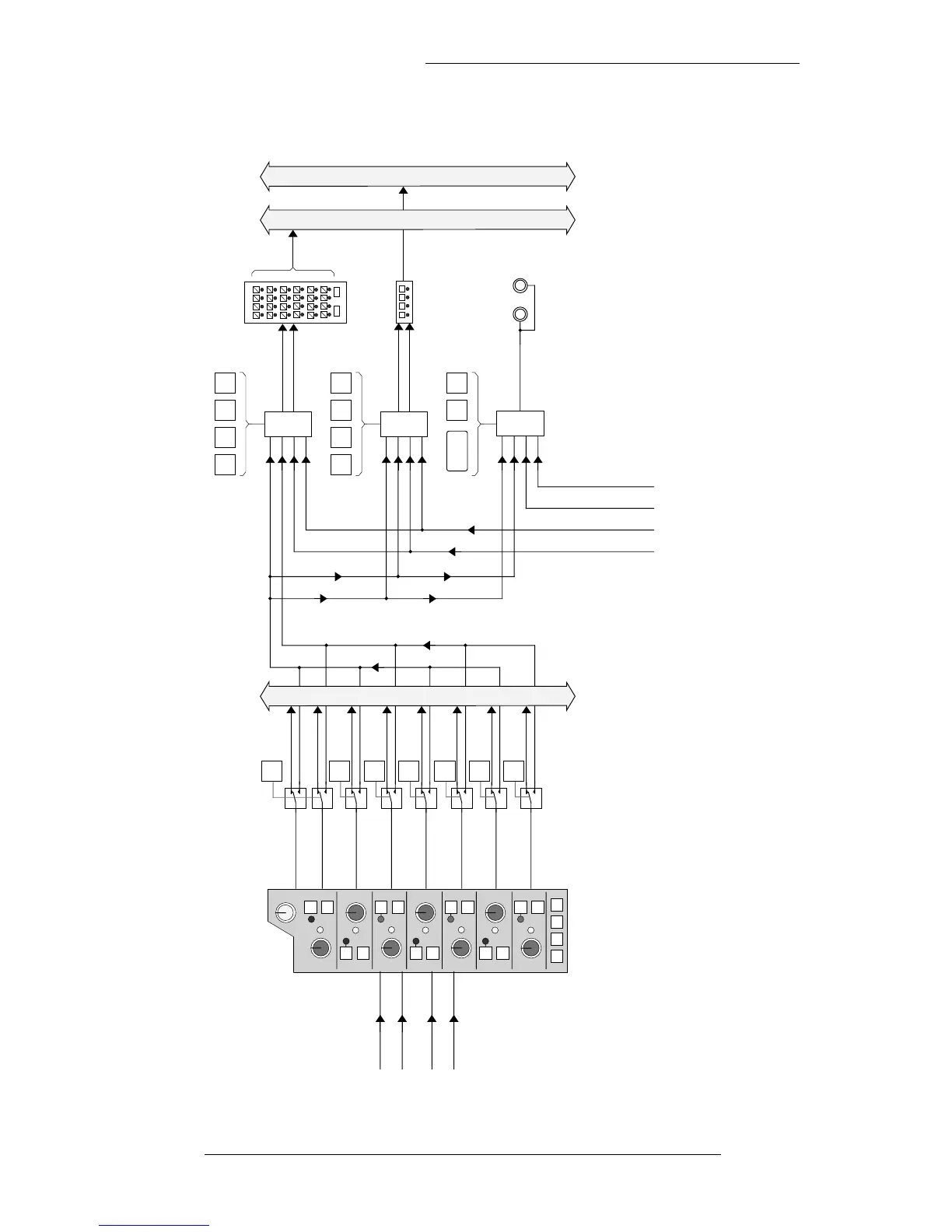

FX ODD and FX EVEN Routing
DIRECT
Pre/Post Large Fader
Pre/Post Small Fader
Stereo Cue
FX 1 FX 2 FX 3 FX 4 FX 5 FX 6
EFX
ODD
EFX
ODD
EFX
ODD
EFX
EV
EFX
EV
EFX
EV
EFX
CUE STEREO and FX 1-6 BUSSES
Note that only one
ODD and one EVEN
numbered FX Send
or
Stereo Cue can be
assigned
simultaneously
1-48
Routing
Stereo
Subgroups
ABCD
LF SF
EFX
ODD
EFX
EV
LF SF
EFX
ODD
EFX
EV
EFX
ODD
EFX
EV
Auxiliary Sends
Section
MULTITRACK BUSSES 1-48
STEREO SUBGROUP BUSSES
GROUP
OUTPUT
MTK SEND & GROUP MONITOR INPUT
Post Large Fader Pan (Stereo)
Post Small Fader Pan (Stereo)
Multitrack Bus Mix Amp O/P
Post Channel Fader
