Stereo Echo Returns
The four stereo Echo Returns are designed to be driven by the outputs of devices
which have been fed from the corresponding mono FX busses described on Page 5-12.
STUDIO – The STUDIO level control and its three associated routing switches (FB
A-C) allow Echo Return signals to be mixed with the three Foldback outputs.
WIDTH – Controls the stereo width of the return. Can be adjusted from full stereo to
mono.
L/R, C, S – These switches route the Echo Return signals to the Main mix busses. Echo
Return signals to Left and Right busses are fed in stereo. The Centre and Surround
busses are fed by a mono sum of the left and right Echo Return signals. The rotary
level controls at the foot of this section set levels to the Main mix busses.
MONO – When this switch is up, the BALANCE control will provide a balance
between the left and right return signals. When MONO is selected, the Echo Return
inputs are summed in mono, and the BALANCE control now acts as a pan control.
This is very useful when you are using a mono FX device, as it saves having to parallel
the Echo Return inputs on the patch.
CUT – Cuts both Left and Right inputs.
AFL – Feeds Echo Return signals (post pan control) to the AFL bus, and switches the
bus output to the main monitors via the AFL level control.
SL 9000 J Console Operator’s Manual
5-14
22.12.94
MONO FULL
0
0
STUDIO
WIDTH
BALANCE
0
0
+6
L
C
R
L/R
C
S
CUT
AFL
FB A
FB B
FB C
MONO
MONO FULL
0
0
STUDIO
WIDTH
BALANCE
0
0
+6
L
C
R
L/R
C
S
CUT
AFL
FB A
FB B
FB C
MONO
MONO FULL
0
0
STUDIO
WIDTH
BALANCE
0
0
+6
L
C
R
L/R
C
S
CUT
AFL
FB A
FB B
FB C
MONO

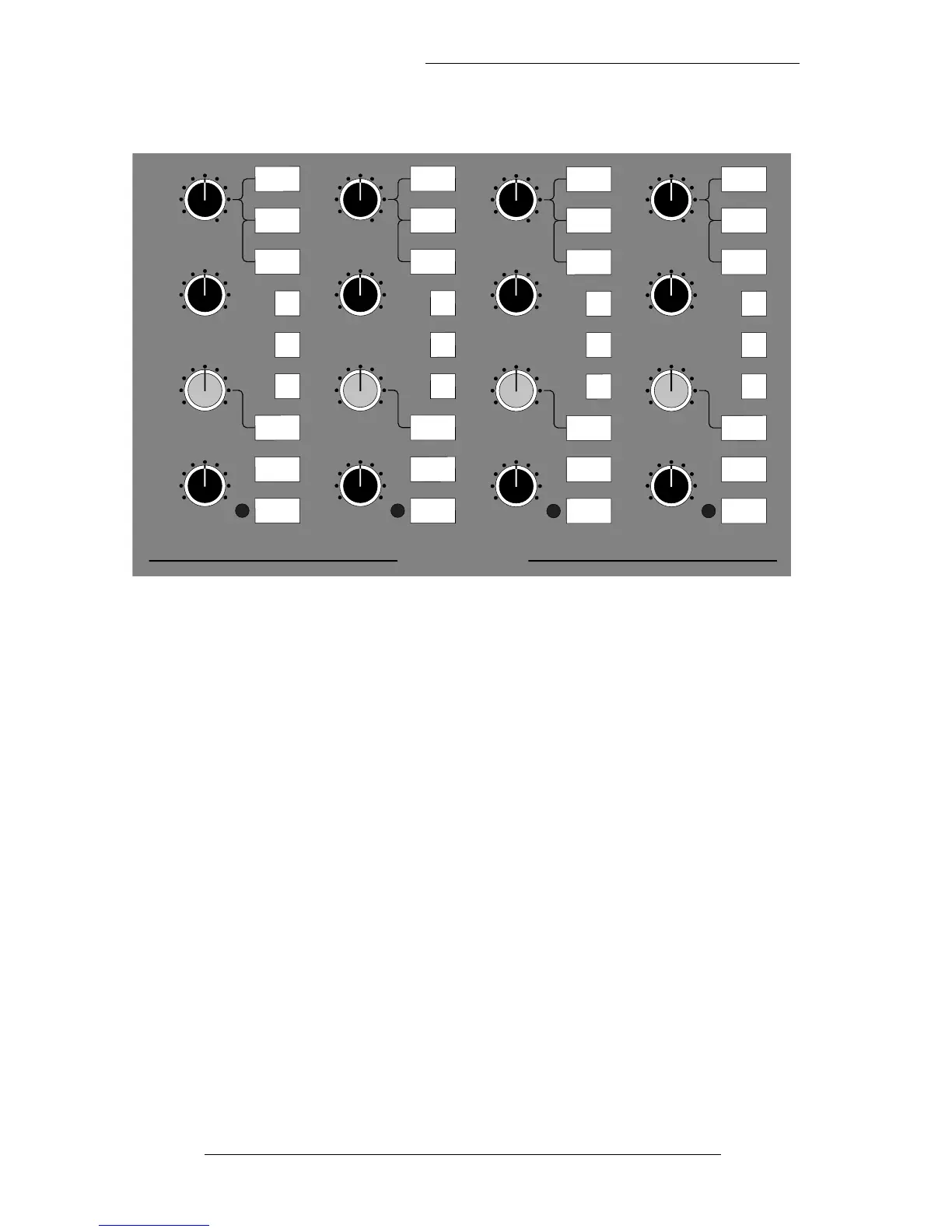

STEREO RETURN 1 STEREO RETURN 2 STEREO RETURN 3 STEREO RETURN 4
STEREO ECHO RETURNS
V
MONO FULL
0
0
STUDIO
WIDTH
BALANCE
0
0
+6
L
C
R
L/R
C
S
CUT
AFL
FB A
FB B
FB C
MONO
