Solid State Logic SL 9000 J SERIES User Manual

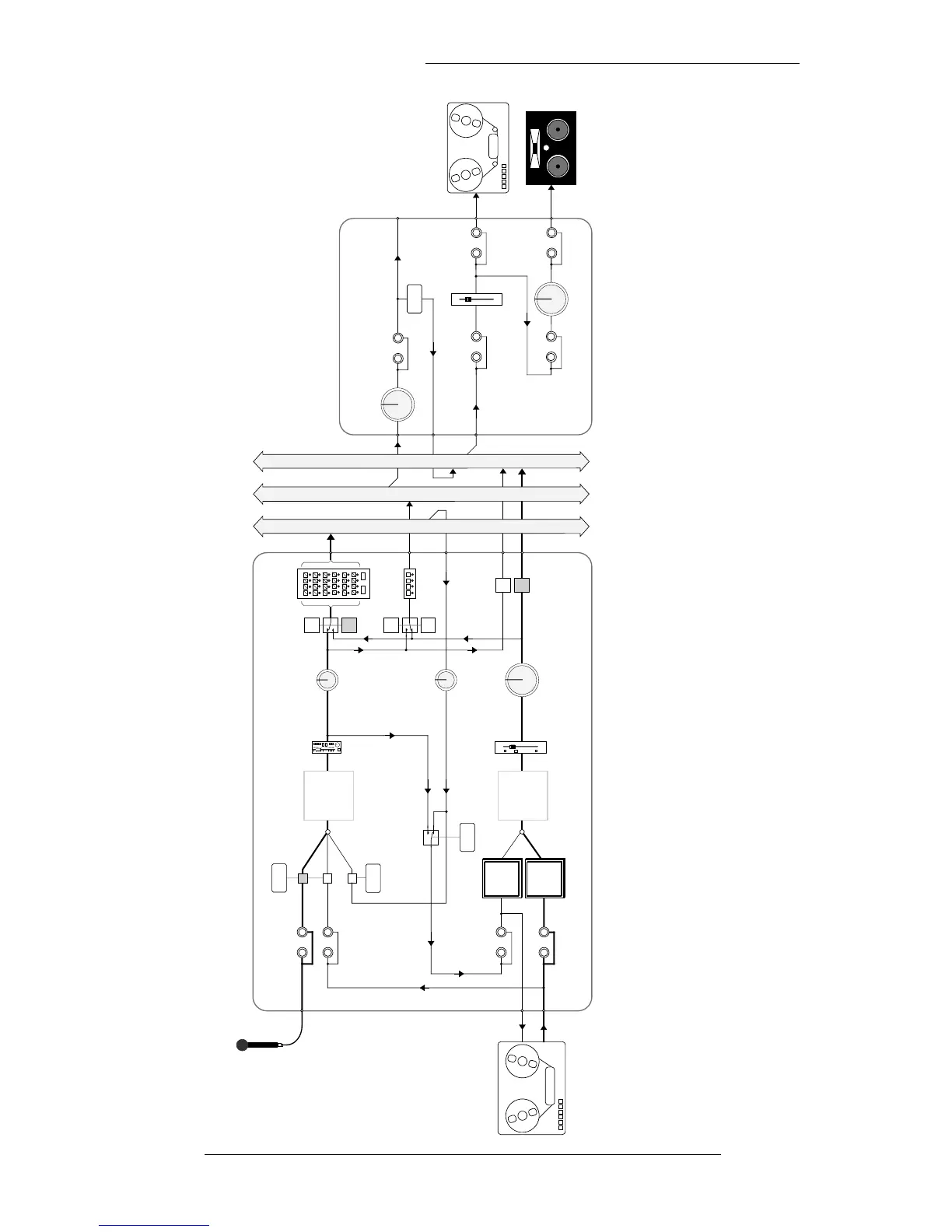

SL 9000 J Console Operator’s Manual
2-6
5.9.96
1-48
Routing
RL
C
Small Fader
Small Fader
Pan
C
ODD EVEN
LINE
Large
Fader
10
5 0 5
10 20 30 40 50
Large
Fader
Pan
C
LR
TAPE
GROUP
FLIP
SUB GP
MIC
MIC
LINE
MIC AMP INPUT
MTK
RETURN
LINE AMP INPUT
Bus
Trim
MTK
RETURN
TAPE MONITOR INPUT
GROUP
OUTPUT
MTK SEND & GROUP MONITOR INPUT
Multitrack
SL911
Stereo
Subgroups
ABCD
Record Status
SF
MIX
LF
MIX
LF
SF
SF
LF
Bus
Master
Level (x4)
TO L/R
Main
Fader
0 5
10 20 30 40 50
1 5 6 0
PRE
FADE
INSERT
Stereo Recorder,
R-DAT etc
Main
Monitor Level
MONITOR
OUTPUTS
Monitor LS
SL951
MAIN OUTPUT
DISTRIBUTION
STEREO BUS
OUTPUTS
MONITOR
INSERT
MULTITRACK BUSSES 1-48
STEREO SUBGROUP BUSSES
MIX BUS
EQ
Filters
Dynamics
EQ
Filters
Dynamics
FADER

Solid State Logic SL 9000 J SERIES Specifications

General

Brand	Solid State Logic
Model	SL 9000 J SERIES
Category	Music Mixer
Language	English
