Mix Status
Line inputs are selected on the channels, sent via the Large Faders and Large Fader
Pans to the main Mix bus and then, via the Master Fader on the SL 952, out to the
mastering machine. The multitrack machine is usually normalled to the Line inputs, so
this single status button will instantly set you up for a mixdown.

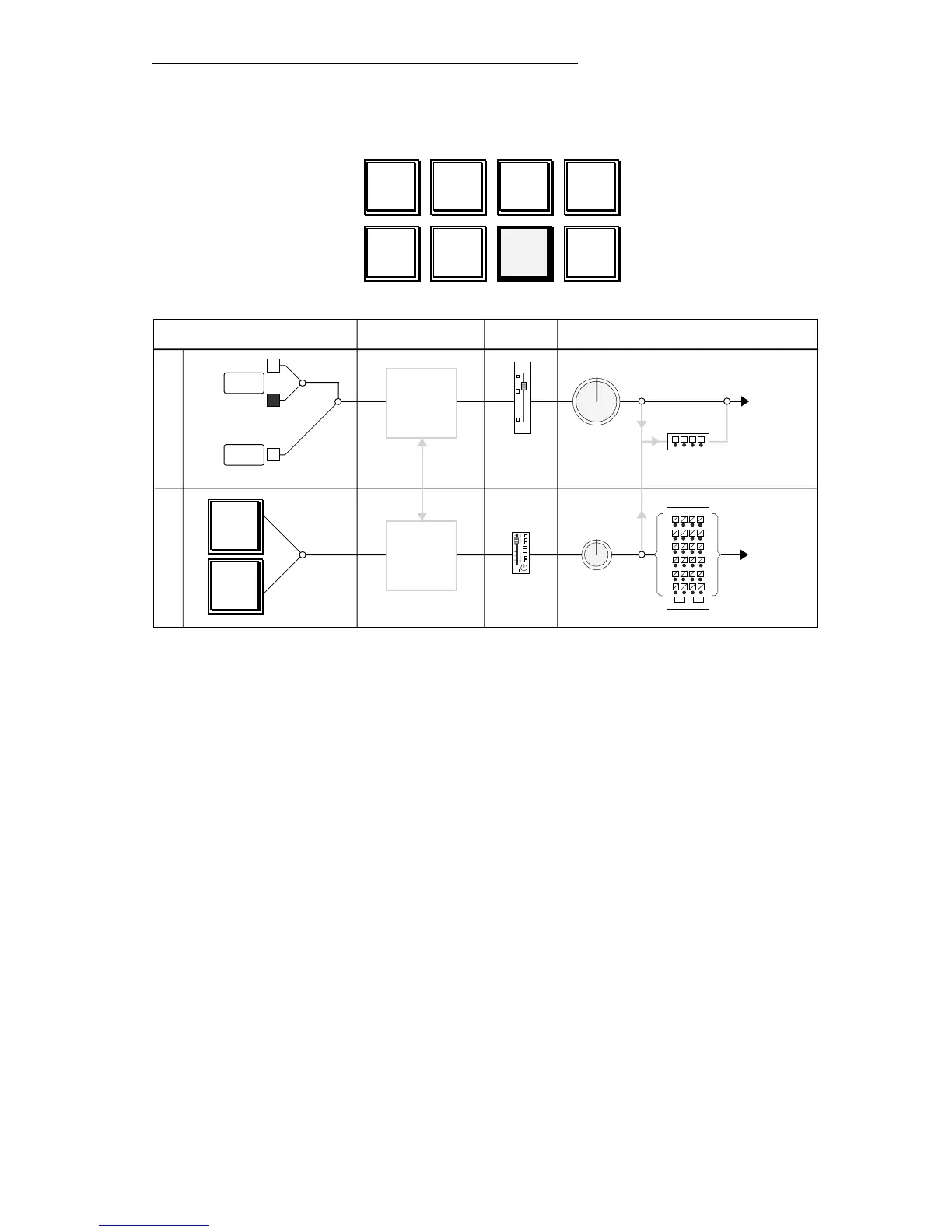

As described on the following pages, the Small Faders can be used for a variety of
different purposes in MIX status. You will see from the drawings above and opposite
that the default Monitor path in MIX status feeds the Tape Monitor Inputs via the
Small Fader and Pan to the Multitrack Routing Matrix.
Basic Routing and Signal Flow
2-15
5.9.96
C
H
A
N
N
E
L
M
O
N
I
T
O
R
INPUT SELECTION PROCESSING FADER OUTPUT ASSIGNMENT
EQ
Filters
Dynamics
LINE
MIC
EQ
Filters
Dynamics
Large
Fader
10
5
0
5
10
20
30
40
50
MASTER
READY
GROUP
MASTER
INPUT
FLIP
SMALL
FADER
TO MON
RECORD REPLAY MIX
STATUS
LOCK
1-48 Routing
Small
Fader
Pan
C
ODD EVEN
To
Bus Trims
and
Tracks
Large
Fader
Pan
C
LR
Stereo
Subgroups
ABCD
To
Main Mix
Busses
TAPE
GROUP
FLIP
SUB GP
RL
C
Small
Fader
