MZC-88 Installation Instructions
Page 41
From Keypads - Zones 1-8
SCSI Cable
KCM-1.0
EZ-CONNECT
KEYPAD MODULE
ZONES 1-8
HED-1.0
FM/AM HEAD
AMP ADAPTOR
MZC-88 MASTER
FM Antenna
AM Loop
Antenna
RG6 Coax
HED-1.0
FM/AM HEAD
AMP ADAPTOR
MZC-88 SLAVE 1
FM Antenna
AM Loop
Antenna
RG6 Coax
A/V In, IR Out - Sources 3-8
A/V, IR, Data Loop to Additional MZC-88’s as Needed
3 Slaves, 32 Zones Max
FROM KCM-1.0
ZONES 9-16
RCA-RCA
A/V
Patch
Cables
PTP-1
Mini-Mini
Patch
Cables
Speaker And Video Feeds - Zones 1-8
Speaker And Video Feeds - Zones 9-16
MZC-88 SLAVE 1
MZC-88 MASTER
CAT-5/RJ45
Patch
Cables
IR Emitters
Source A/V
Earth
Ground
(See Text)
1
4AWG
Earth
Ground
(See Text)
1
4AWG

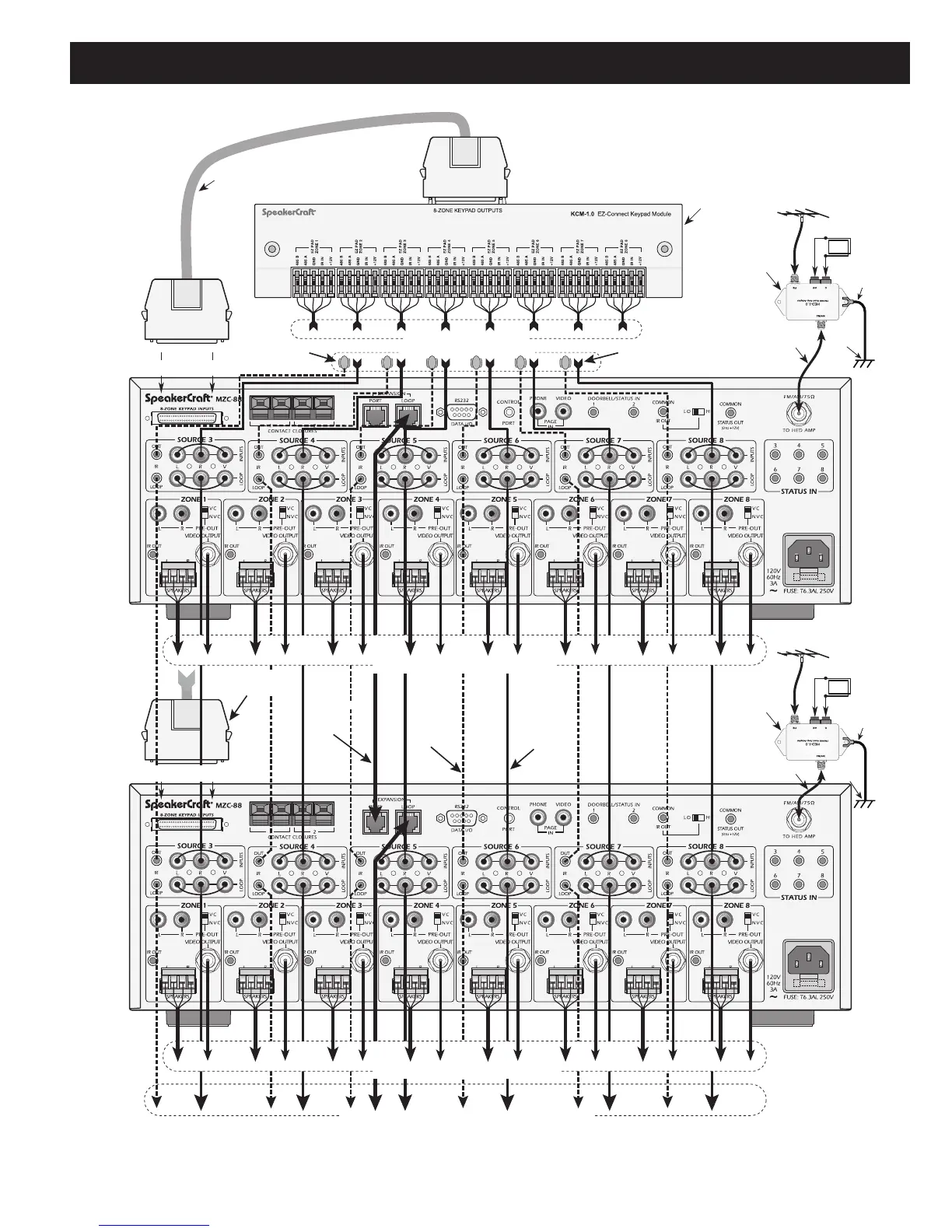

Figure 22
MZC-88 Expanded System
41
43
Table of Contents
Default Chapter
3
Table of Contents
3
MZC-88 SPECIFICATIONS ............................................................................................. 09 Page
6
Introduction
7
Product Features
7
System Overview
8
Ez-Pad Gang Configurations
8
Ez-Pad Feature Descriptions
9
Feature Descriptions
11
Mzc-88 Front Panel
11
Mzc-88 Rear Panel
13
Kcm-.0 Ez-Connect Keypad Module
16
Epr-.0 Ez-Pad Relay Muting Module
17
Hed-.0 Masthead Amplifier
18
Ltm-.0 Learn/Test Module and Transfer/Adapter Cables
19
System Planning and Installation
23
System Installation
25
Wiring
25
Keypads
25
System Installation
25
Rs232
26
Video
26
Speakers
26
Contact Closures
26
Expansion Port/Loop
26
Control Port
26
Video Page in
27
Phone Page in
27
Doorbell/Status in
27
Common Ir out
27
Common Status out
27
Status
27
Fm/Am/75Ω
28
Source Ir out
28
Source Ir Loop
28
Source Audio/Video Input
28
Source Audio/Video Loop
28
Zone Pre-Out
28
Zone Ir out
28
Ez-Pad Configuration
29
Installation
31
Head-End
31
Connections - Head End
31
Keypads
31
External.source.components
31
Emitters.(Source)
31
Speakers
32
Video.output
32
Fm/Am/75Ω
32
Paging
32
Contact.closures
33
Expansion
33
Rs232.Data.I/O
33
Control.port
33
Common.ir.out
33
Common.status.out
34
Status.in
34
Zone.pre-Out
34
High-Power,.Two.channel.amplifier.-.VC,.Variable.output
34
Sub-Zone.expansion,.Multi-Channel.amplifier.-.Nvc,.Fixed.output
34
Zone.ir.out
34
120V.60Hz.3A
34
Zones
35
Connections - Zones
35
Keypads
35
Speakers
35
Direct.speaker.connection.to.mzc-88.Or.amplifier
35
Speaker.connection.to.epr-1.0.Ez-Pad.relay.muting.module
35
Video
35
Other.zone.connections
35
External Amplifiers
37
Adding a High-Power Two-Channel Amplifier to a Zone
37
Installation
37
Connections.and.configuration
37
Adding a -Channel Amplifier to a Zone
39
Installation
39
Connections.and.configuration
39
Expanded Systems
41
Installation
41
Connections.and.configuration
41
Common.status.out
45
Mzc-88 Internal Tuner Setup
45
Programming.tuner.presets
46
Programming with Ez-Tools
47
Download Ez-Tools
47
Assigning.ir.commands.to.button.keys
48
Power Management/Events Programming
49
Power.on
49
Power.off
50
Cloning and Programming the Remaining Zones
51
Advanced Programming
52
Delays
52
Punched Commands
53
Priority
54
Priority.-.Equal
54
Priority.-.First.come,.First.served
54
Zone.priority
55
Source.priority
55
Individual.key.priority
56
Zone/Whole House Muting
56
EPR-1.0.Muting.relay
56
Designated.relay.mute.key
56
Insert.mute.commands
58
Keypad.-.Mute.on,.Off.or.toggle
58
Zone.-.Mute.on,.Off.or.toggle
59
Global.-.Mute.on,.Off.or.toggle
59
Learning Ir Commands
60
Using the Ltm-.0 Learning Sensor System
60
New.brands
60
Existing.brands
61
Programming Learning Remotes with Ez-Code System Commands
62
Programming.procedure
62
EZ-Code.group.settings
64
Programming Learning Remotes with Library Ir Commands
64
Programming.procedure
64
Templates
65
Exporting.source.banks.as.template.files
66
Importing.source.bank.template.files
66
Icon.templates
67
Exporting.icons.as.template.files
67
Importing.icon.template.files
68
Doorbell/Page.programming
68
Timeout.and.momentary.page.control
68
Timeout.programming
69
Momentary.page.programming
71
Direct.door.viewing/Listening
71
Programming.mzc-88.Internal.commands
71
Tone.commands
73
Tier.programming
73
Audio.routing.commands
75
Video.routing.commands
76
Contact.closure.commands
76
Mzc-88 Setup Menus
77
Source.assignments
77
Misc
77
EZ-Code.group
77
Mzc-88 System Configuration for Zone Expansion
78
Zone.setup.menus
78
Name/Sources
78
Name/Description
78
Available.sources:.(Check.to.enable.in.this.zone)
79
Whole.house/Mute
80
Whole.house/Party.mode
80
Events Setup
81
System.turning.on
81
Zone.on)
81
System.turning.off.(Last.zone.off)
82
Zone.turning.on.&.Zone.turning.off.events
83
Doorbell.triggers.#1.And.#2
84
Party.mode.start-Up
84
Zone Expansion
85
Programming for Zone Expansion
85
Downloading.to.master.&.Slave.units
86
Printing Projects
87
Printing.the.project
87
Saving and Backing up Ez-Tools Files
89
Autosave
89
Back.ups
89
Firmware & Ez-Tools Upgrades
90
Firmware.updates
90
EZ-Tools.upgrades
92
Command.library.merges
93
Appendix
94
EZ-Tools.menu.items
94
File
94
Edit
94
Project
94
Installation Instructions
94
Tools
95
View
96
Help
96
Importing.pronto.hex.code
97
Importing.xantech.palette.(".Pal").Files
99
Command.properties.(Ir)
100
Command.protocol.&.Data
100
Wide.bursts
102
Min
103
Frequency.(25K-470K)
103
Capture
103
Repeating.data
103
Min..output.time.(Sec.)
103
Custom.code.&.Data.code.fields
104
Rs3 Commands
104
Programming.rs232.Commands.to.ez-Pads
104
Adding.new.rs232.Commands.to.the.command.library
105
Troubleshooting
108
MZC-88 Specifications
110
