Page 42 MZC-88 Installation Instructions
VIDEO OUTPUT
1. Connect the VIDEO OUTPUT of each MZC-88 Zone Output to the appropriate zone TV/Video Display.
SPEAKERS
1. Connect the L+,L-/R-R+ SPEAKER-LEVEL OUTPUTS of each MZC-88 to the appropriate zone speakers.
EXPANSION
1. Connect one, CAT-5 patch cable terminated with RJ45 connectors from the EXPANSION LOOP Terminal on the MZC-
88 MASTER to the EXPANSION PORT Terminal on the next MZC-88 Slave in the chain. (Master to Slave 1, Slave 1 to
Slave 2, etc.)
3. Repeat steps 1-2 for all MZC-88s in the chain.
ANTENNAS
1. Connect one HED-1.0 to EACH MZC-88.
2. Connect the FM/AM/75Ω Terminal on the MZC-88 to the FM/AM terminal on the HED-1.0 using up to 100’ of RG6 coax.
3. Connect the included FM dipole antenna to the FM terminal on the HED-1.0
4. Connect the included AM loop antenna to the AM and G spring clip terminals on the HED-1.0 (polarity non-critical).
5. Repeat steps 1-4 for each MZC-88 in the chain. (4 MZC-88’s Max.)
PAGE IN
NOTE: If only connecting audio for Phone Paging, ‘Y’ connectors can be used to connect the paging source line-level
audio feed to the PAGE IN/PHONE jacks on all MZC-88s. When connecting a composite video feed, an appropriate 75
ohm matching distribution amp is required. If connecting audio and video, both signals can be fed to the Page In jacks
from the distribution amp.

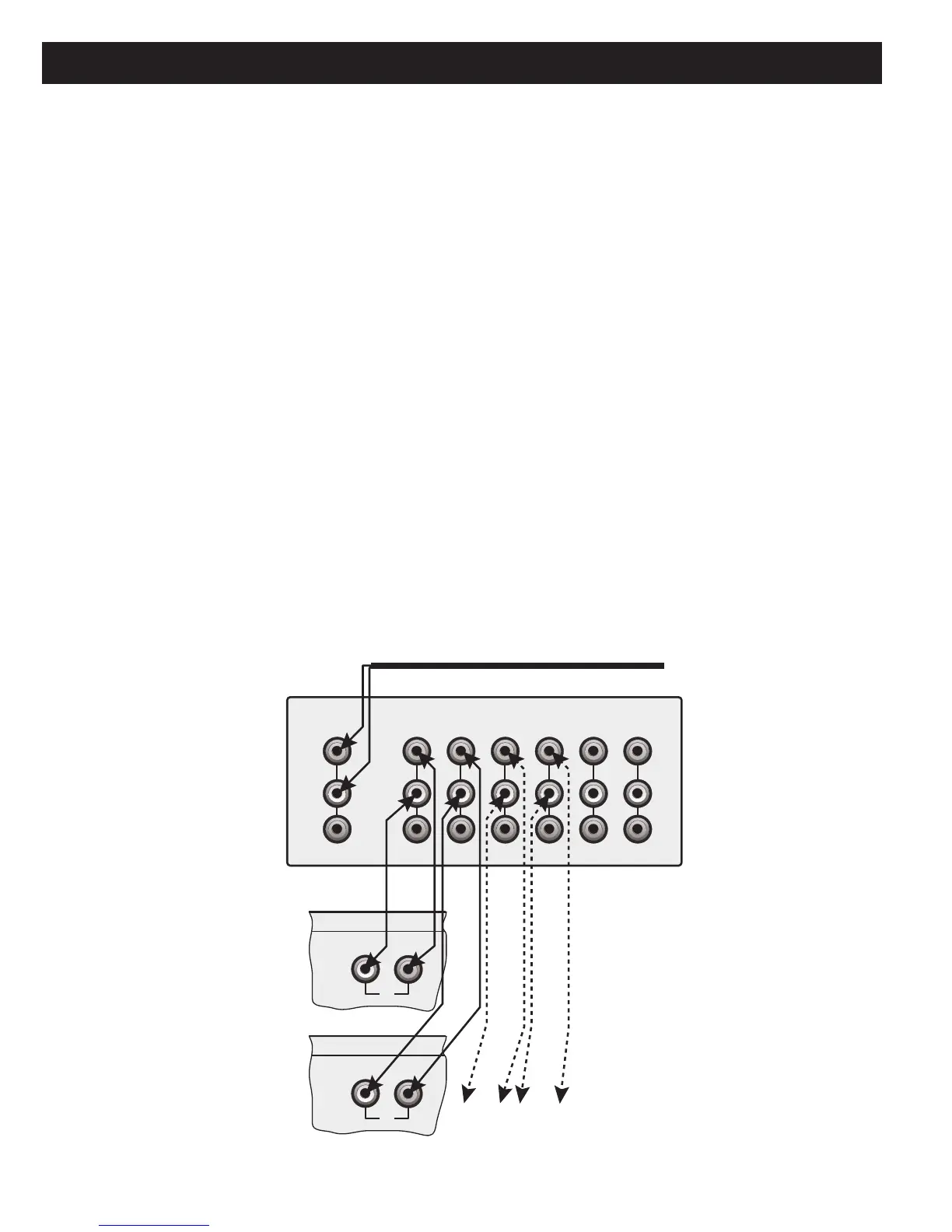

1. Connect the line-level audio and/or composite video out of the paging source to the audio and/or composite video IN
on the distribution amp, using RCA-RCA patch cables.
2. Connect the audio and/or video OUTPUTS of the distribution amp to the PAGE IN PHONO/VIDEO Inputs on the MZC-88
Master and Slaves as shown in Figure 23.
FROM DOOR A/V CAMERA, ETC.
To Additional MZC-88's
(slaves #2 and #3) if needed
MZC-88
Master
MZC-88
Slave #1
AUDIO VIDEO DISTRIBUTION AMPLIFIER
OUTPUTS
1 2 3 4 5 6
V
L
R
V
L
R
V
L
R
PHONE VIDEO
PHONE VIDEO
PAGE
IN
PAGE
IN
VIDEO AUDIO
Figure 23
Page Phone/Video IN Expansion
