Steris 4095 - Figure 1-2.Pinch Points (Illustration 2 of 2)

1-7
Safety Precautions Operating Manual 056404-443

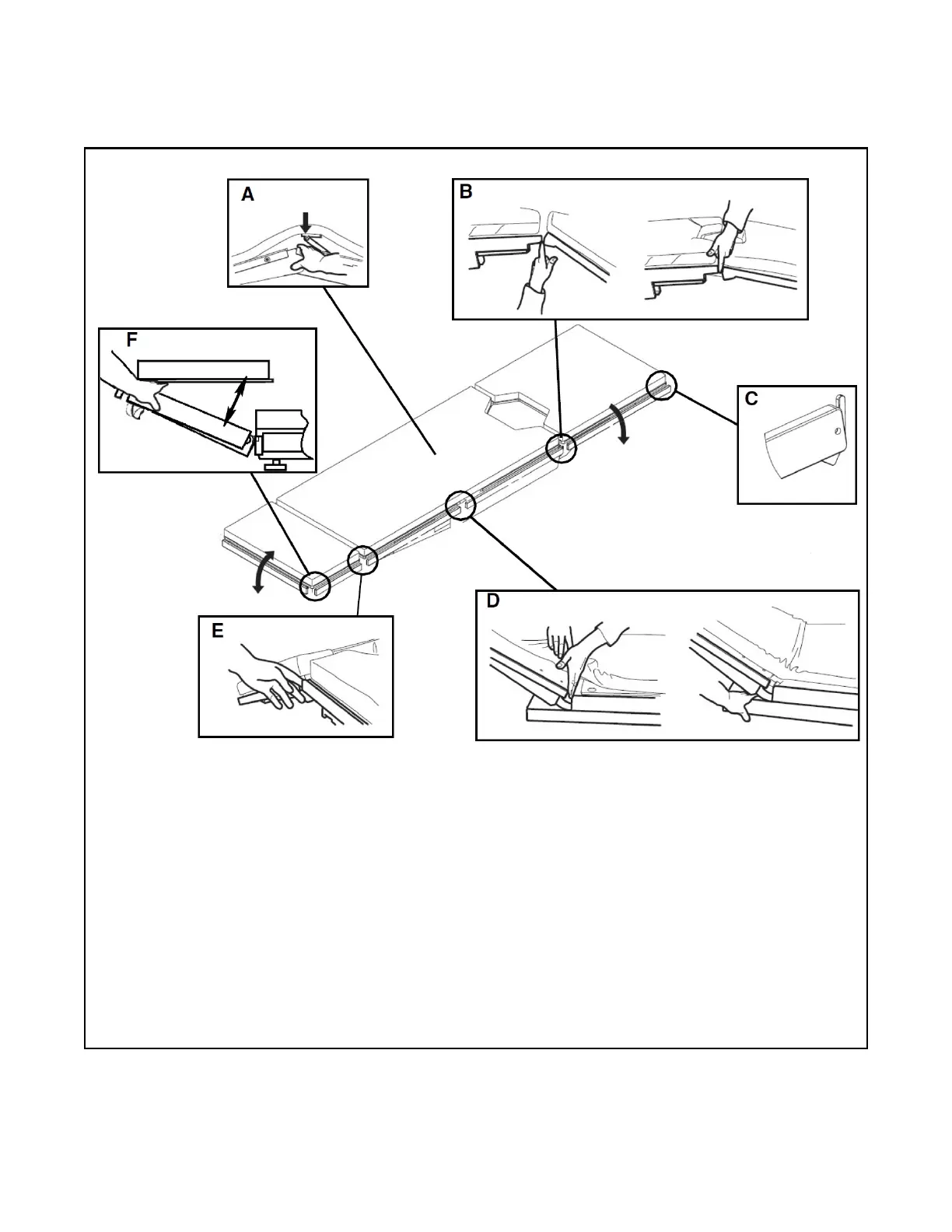

Figure 1-2. Pinch Points (Illustration 2 of 2)
Pinch points:
A) Between Kidney
™
Elevator Mechanism and Seat Section
B) Between Leg Section and Seat Section
C) Side Rail Lock
D) Between Back Section and Seat Section
E) Between Head Rest and Back Section
F) Between Head Board and Head Rest Base
