4.6 Installing Main Control Fuses (F6 and F7)
If not installed, install two 4 Amp main control fuses (F6 and F7) (639600038) into head-end of table base as
follows:
1. Locate F6 and F7, 4 Amp, in a cartridge beside the ac input at head-end of table base.
2. Turn power OFF.
3. Disconnect ac power cord from wall receptacle.
4. Pry cartridge out with a small screwdriver to access fuses.
5. Remove blown fuse(s) and replace.
6. Push cartridge back into connected position.
7. Remove battery fuse at foot-end of table base.
8. Reconnect ac power cord to wall receptacle.
9. Turn power ON.
10. Verify INTELLIPOWER dual power system indicates table is operating on ac power (green LED must be ON).
11. Ensure table functions properly.
12. Return battery fuse.
If table is going to be stored for more than six months, remove fuse to limit battery discharge.

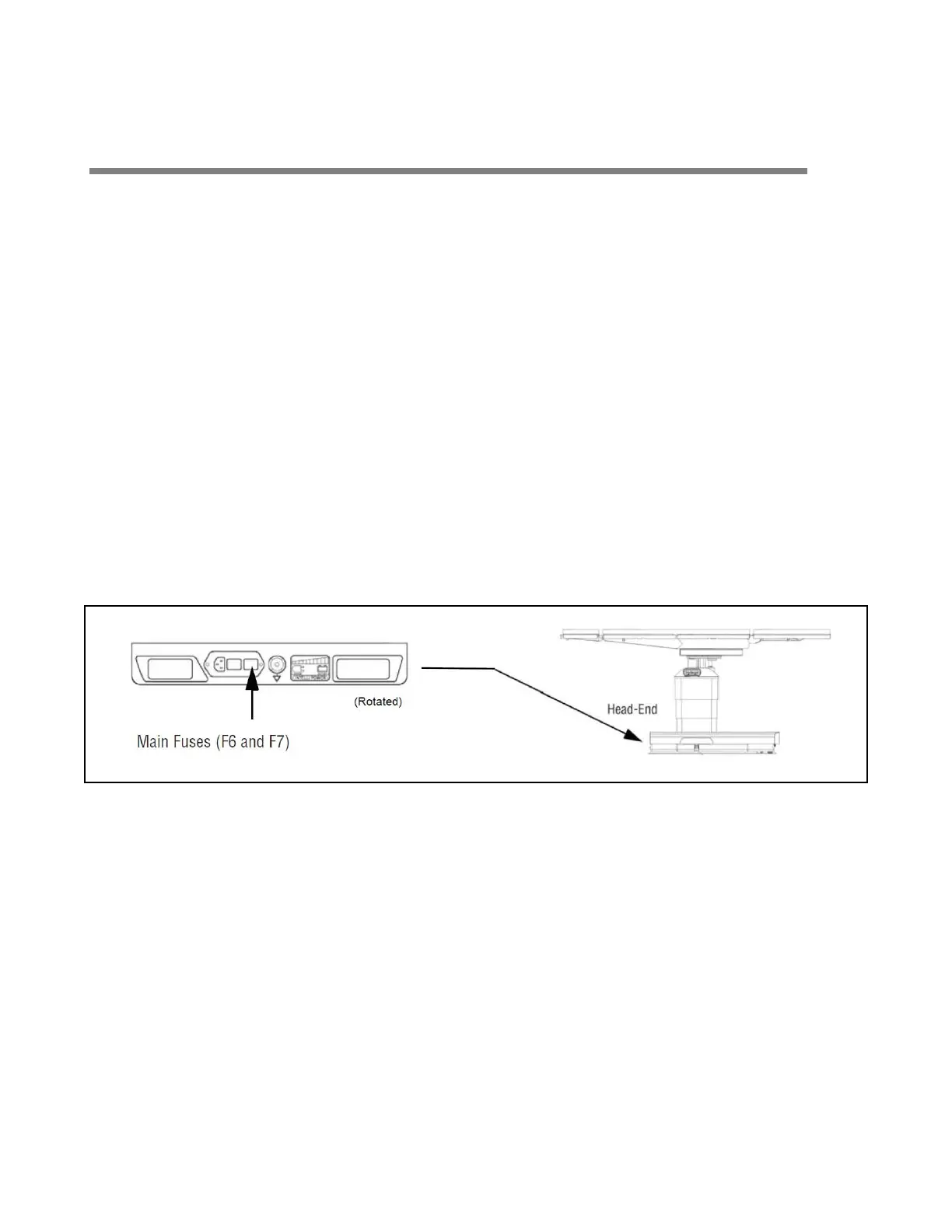

Figure 4-2. Installing or Replacing Main Fuses F6 and F7
