056404-443 Operator Manual Operating Instructions
5.5 Message Display With Numeric Error Codes
Universal Hand Control displays numeric error messages beside Wrench symbol when V2 table control board is
installed in a Surgical Table. Numeric error codes persist during a key press for articulation related errors.
Numeric error codes persist until the Surgical Table is powered off for errors related to system failures. Figure 5-3
shows a typical error code display. Table 5-2 lists error codes (wrench codes) and their meanings.

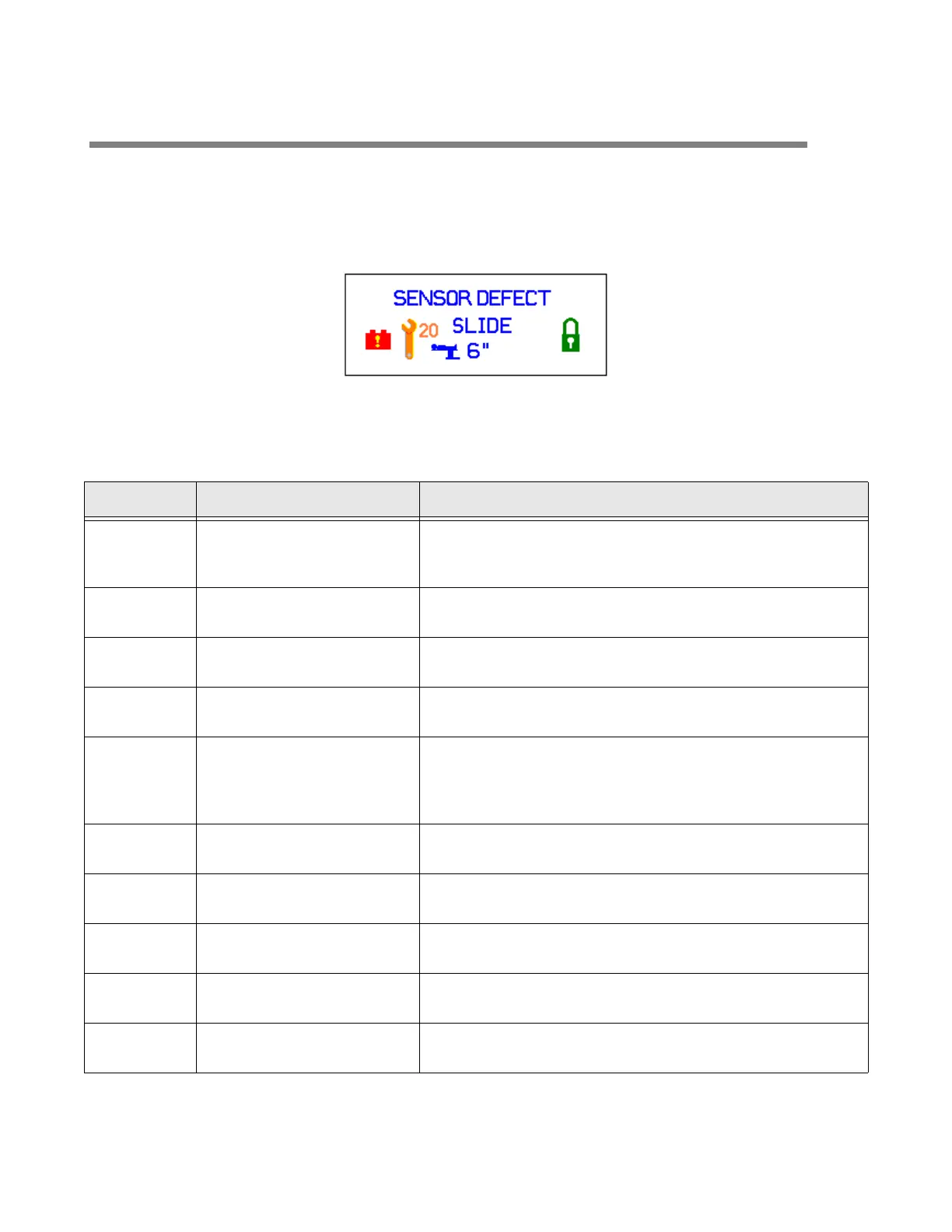

Figure 5-3. Example of Error Code Display - Error Code 20 Shown
Table 5-2. Display Screen Numeric Error Codes
WRENCH # CONDITION ACTION
2 ALARM - Commands
received from both Primary
and Auxiliary Hand Controls.
Only one Hand Control (Primary or Auxiliary) is required to
perform user guided task.
7 ALARM - SLIDE blocked. Press STOP. Slide function is blocked causing an overvoltage
situation, address obstruction.
9 ALARM - Table batteries
depleted.
Plug table into facility power.
10 ALARM - Floor locks not
detected.
Floor Lock pressure switch failure. Call STERIS.
11 ALARM - Controller button
depressed too long.
If no button found depressed, press STOP to stop any table
movement and call STERIS. If button was pressed for more
than one minute, release button and repress for less than one
minute.
12 ALARM - TILT sensor failure. Combination movements (Level, Flex and Reflex) are not
allowed. Call STERIS Service.
13 ALARM - TRENDELENBURG
sensor failure.
Combination movements (Level, Flex and Reflex) are not
allowed. Call STERIS Service.
14 ALARM - BACK sensor
failure.
Combination movements (Level, Flex and Reflex) are not
allowed. Call STERIS Service.
15 ALARM - LEG sensor failure. Combination movements (Level, Flex and Reflex) are not
allowed. Call STERIS Service.
17 ALARM - HEIGHT sensor
failure.
Combination movements (Level, Flex and Reflex) are not
allowed.
