6-14
056404-443 Operator Manual Routine Maintenance

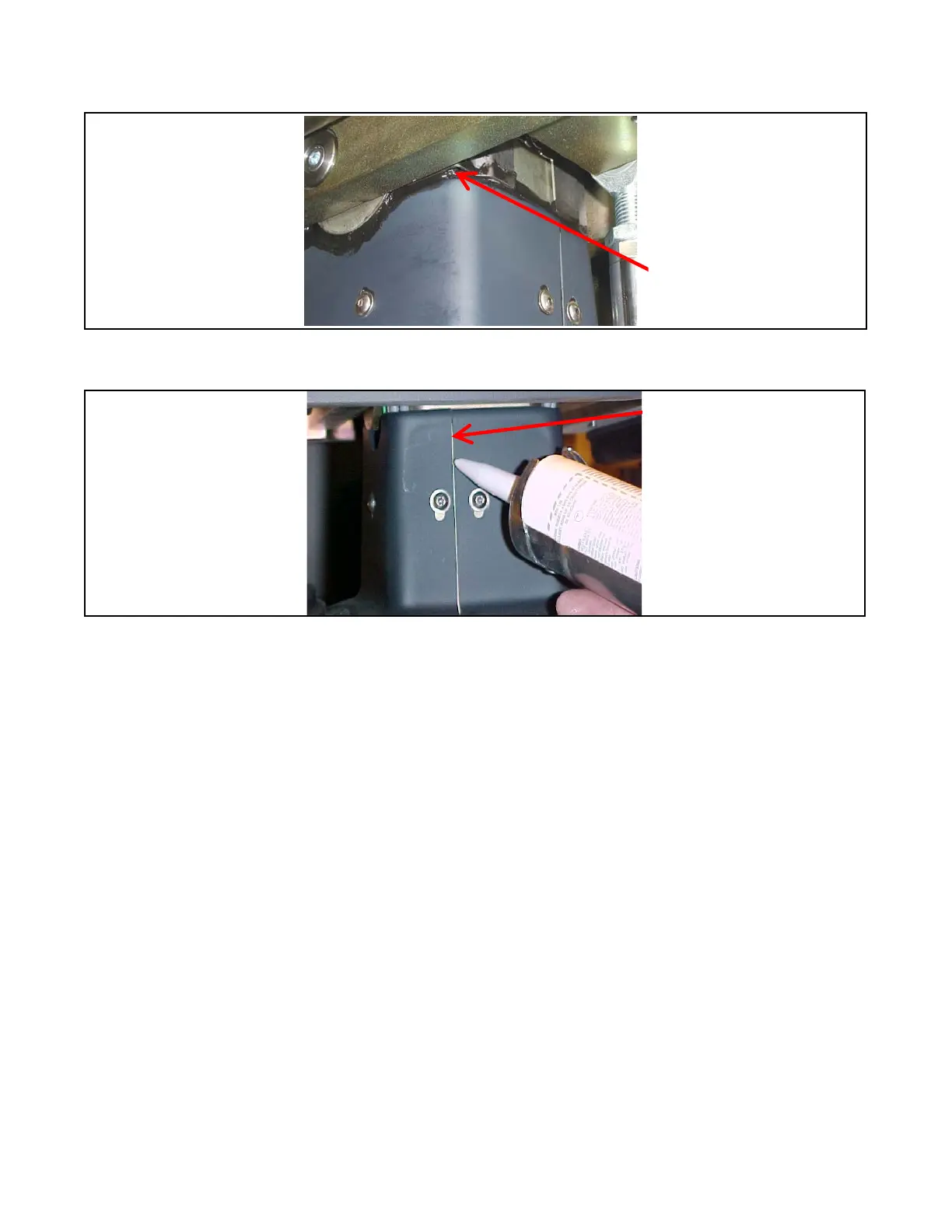

Figure 6-8. Seal Around Upper Plastic Covers and Column
7. Seal along both seams of upper plastic column covers as shown in FIGURE 6-9.
Figure 6-9. Seal Along Both Seams of Upper Plastic Column Covers
8. Install lower (inner) column cover around column.
9. Snap halves together and fasten using previously removed screw. Repeat for all column covers.
10. Secure upper (outer) cover to bracket using six existing fasteners.
11. Secure lower cover to base using four existing fasteners.
12. Secure base cover to base using screw and spacer.
13. Ensure telescoping column covers move smoothly and do not separate during operation.
14. After applying RTV, remove any excess sealant using an alcohol dampened rag.
15. Allow sufficient cure time as recommended by the RTV manufacturer before returning table for use.
6.11.2 One-Part Base Cover (Plastic)
1. Seal area where power supply inlet is exposed through base (see FIGURE 6-7).
2. Install base cover insert and fasten to base cover (see F
IGURE 6-10).
