Steris 4095 - Figure 3-3. STERIS 4095 Tabletop Dimensions (Typical); Figure 3-4. Image Amplification Coverage

3-5
Introduction to Table Operator Manual 056404-443

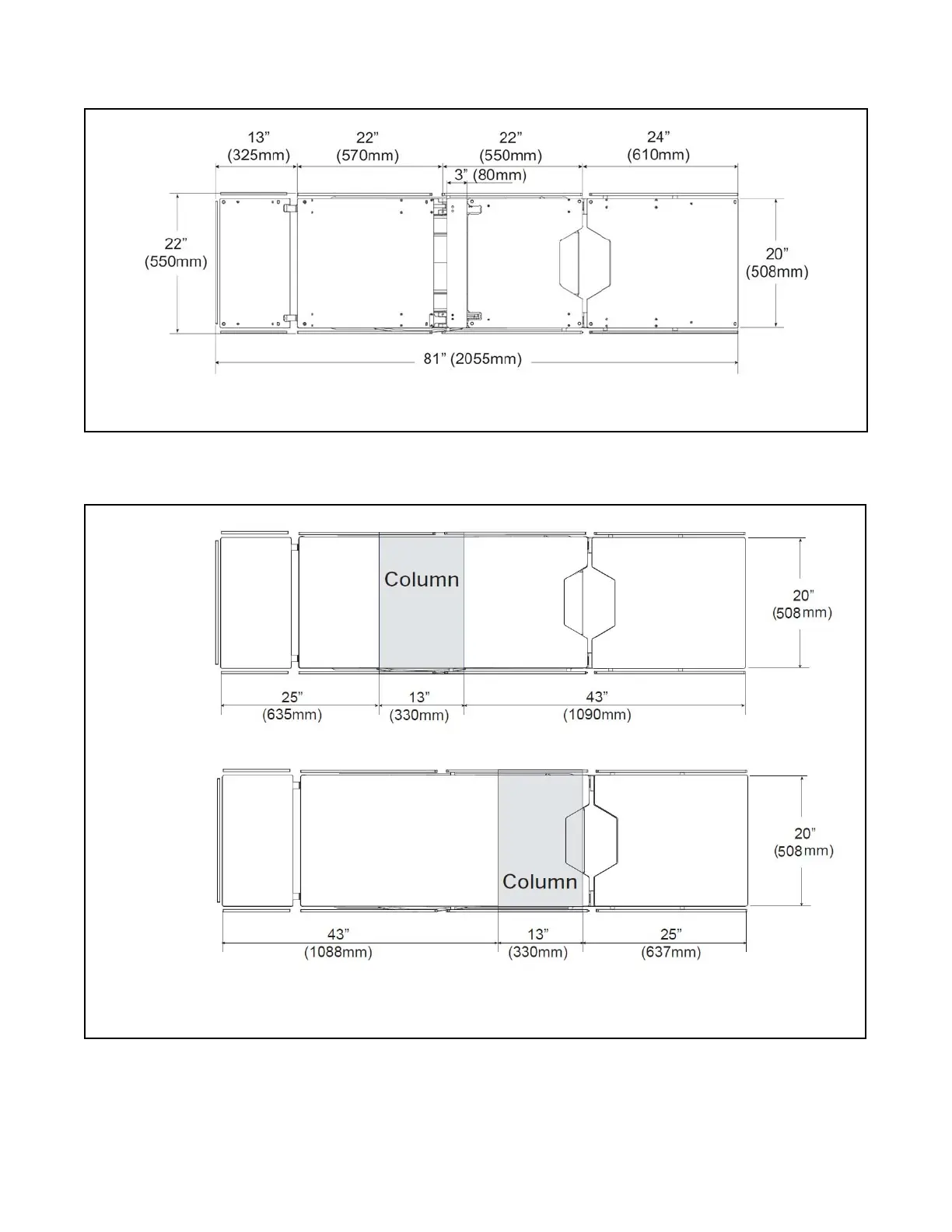

Figure 3-3. STERIS 4095 Tabletop Dimensions (Typical)
Figure 3-4. Image Amplification Coverage
SAE measurements are approximate based on metric dimensions.
SAE measurements are approximate based on metric dimensions.
Tabletop fully
transitioned toward
head end, normal
patient orientation.
Tabletop fully
transitioned toward
foot end, normal
patient orientation.
