Steris 4095 - Figure 3-1. Table Components

To Next Page

To Previous Page

3-2

056404-443 Operator Manual Introduction to Table

Figure 3-1

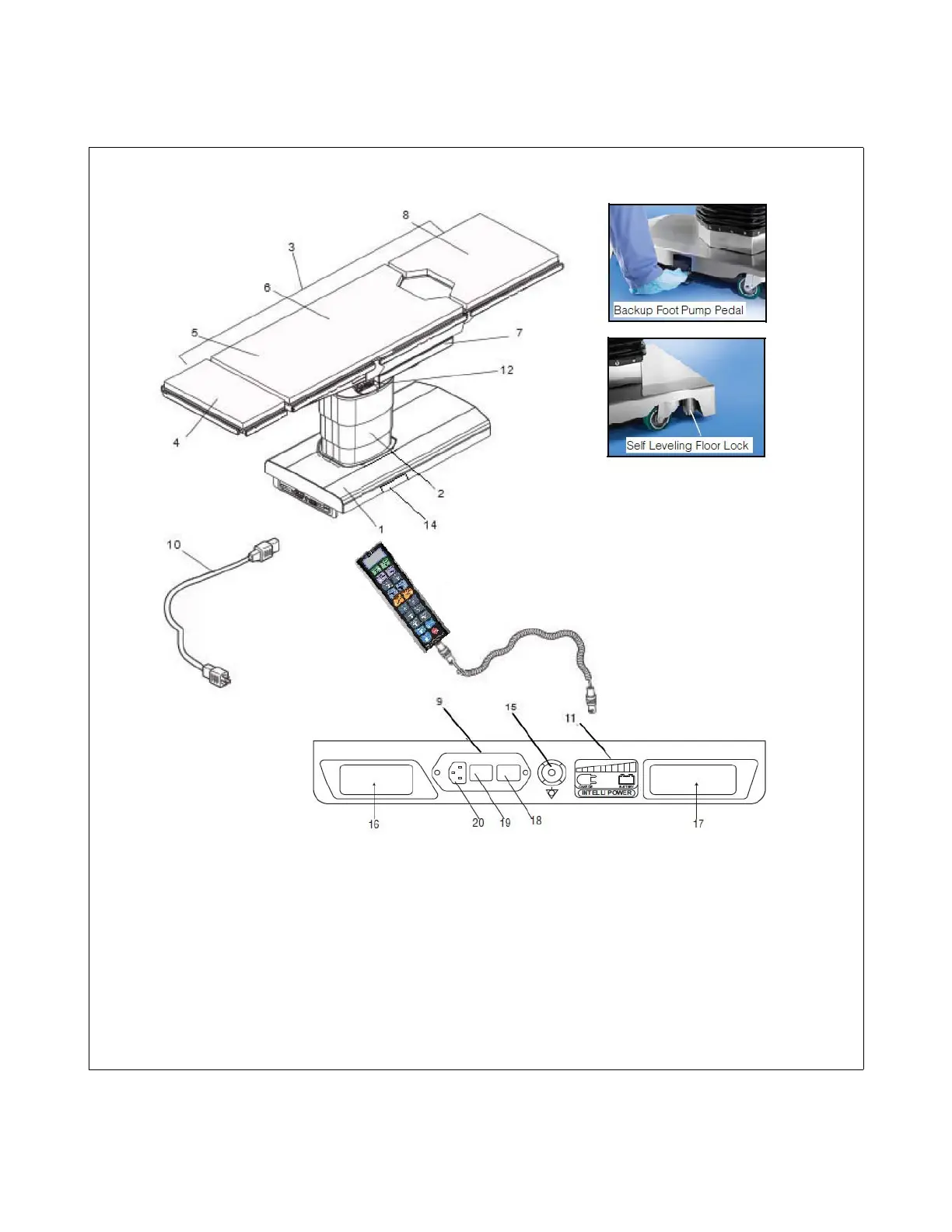

Figure 3-1. Table Components

KEY:

1. Table Base 11. INTELLIPOWER Dual Power System Display

2. Column 12. Connection Panel

3. Tabletop 13. Hand Control

4. Head Rest (Dual-Articulating) 14. Auxiliary Control System

5. Back Section 15. Ground Equalization Terminal (Male Connection)

6. Kidney Elevator Mechanism 16. Service Label

7. Seat Section (Sliding) 17. Service Bar Code Label

8. Leg Section 18. Primary Fuses

9. Power Panel 19. Main Power Switch

10. Power Cord 20. AC Receptacle
