Operating Instructions Operator Manual 056404-443
4.11 Installing/Removing Leg Section
4.11.1 Installing the Leg Section
NOTE: The table is equipped with Hi-Lock™ locking mechanism enabling quick and easy removal/installation of
the leg section with a safety lock feature.
1. Position table top seat section to horizontal by pressing LEG UP button on hand control, refer to Section 5.3,
Universal Hand Control if needed.
2. With top seat section of table horizontal, insert both leg section installation rods into seat frame until fully
engaged. Listen for "click" sound to indicate correct installation (see Figure 4-10).
NOTE: The leg section should slide easily into the back frame (seat section). Do not force.

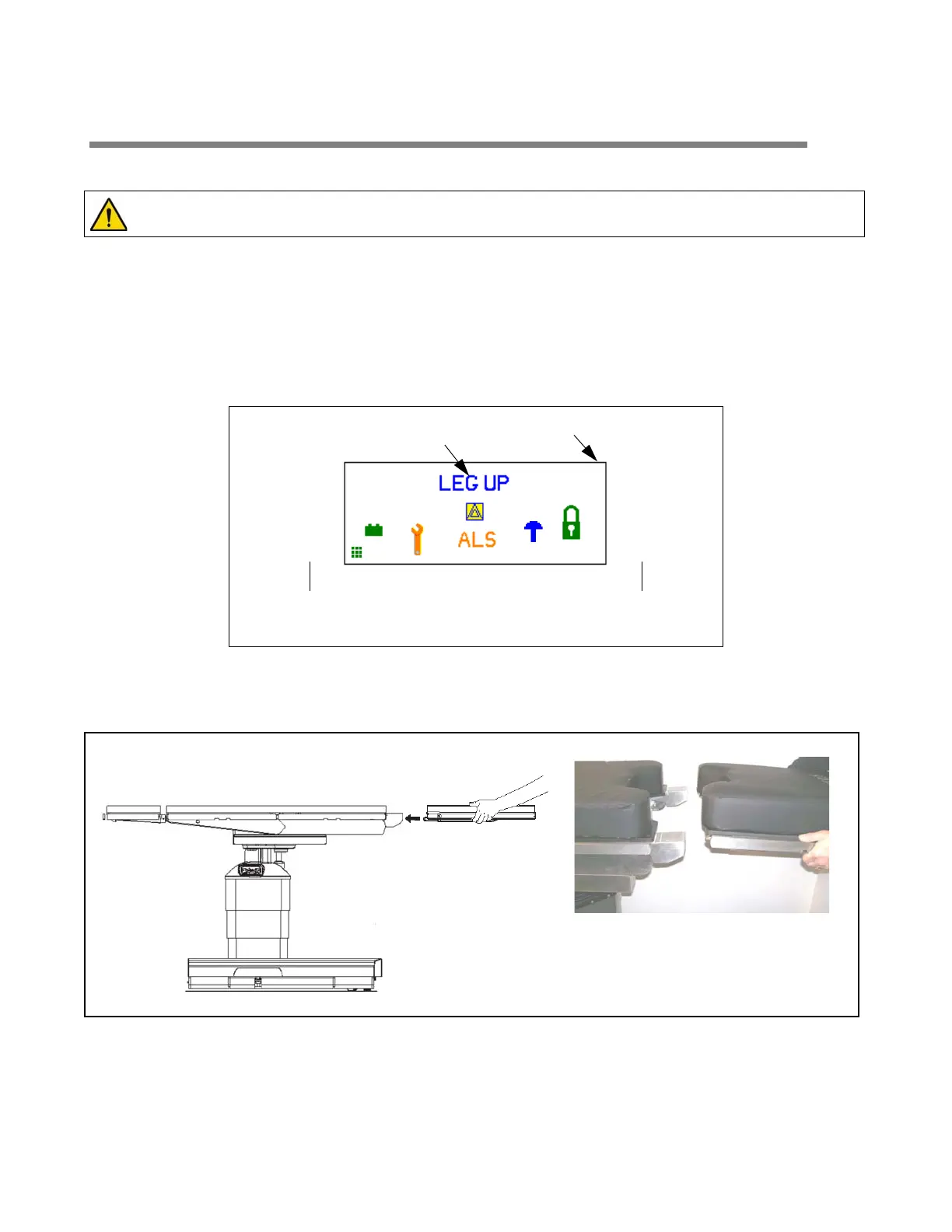

Figure 4-10. Attaching Leg Section
3. Pull leg section (both sides) to ensure correct installation. Leg section should remain firmly in place.
WARNING – PERSONAL INJURY HAZARD: Do not exceed 350 lbs. (159 kg) on the leg section.
.
Figure 4-9. Universal Hand Control,
LCD Screen
Tabletop Positioning
LCD Display
