4) When any tabletop function button (except SLIDE) is pressed, green LED next to USE WITH FOOT PUMP
should light.
5) The ALS System is NOT active during Backup (Override) Control System operation.
6) When table is in the Backup UNLOCK configuration, tabletop functioning IS active. LOCK table before
moving tabletop.
7) Reverse Orientation is NOT available in Backup Control operation. If patient was in reverse orientation when
auxiliary control was activated, change TREND to REV. TREND, LEFT TILT to RIGHT TILT, etc.

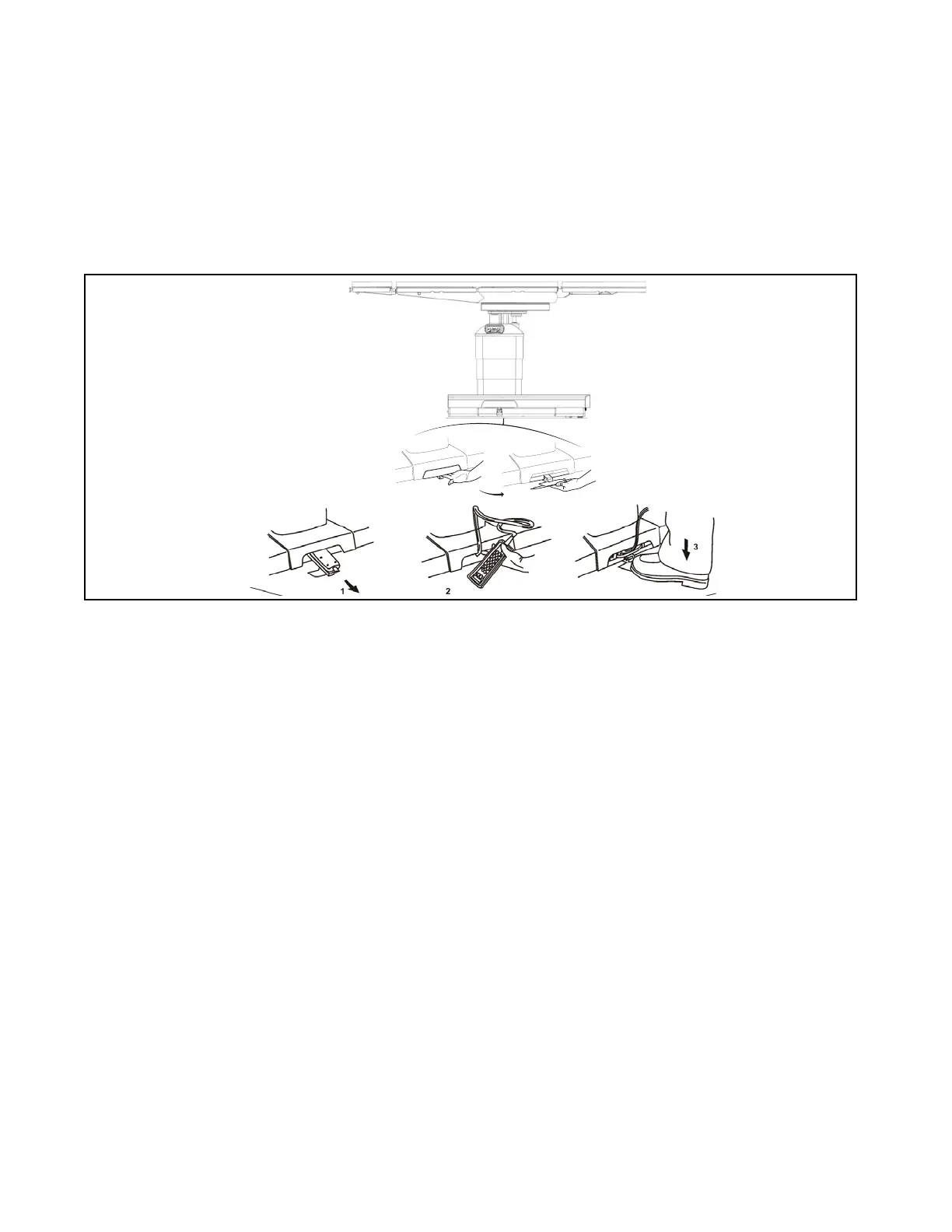

Figure 5-4. Backup (Override) Control System
5.9.2 Backup Hand Control Description
The Backup Hand Control pushbutton descriptions are as follows (Figure 5-5):
NOTE: Simply release the Backup Hand Control pushbutton when desired STERIS 4095 General Surgical Table
Tabletop position has been reached and table automatically stops and locks in position. Refer to S
ECTION 3.2.3,
R
ANGE OF MOTION, for the positioning of the following table functions.
SLIDE HEAD:
When depressed, Zip-Slide moves tabletop toward head end. When slide returns to central ("0")
position, movement stops for one second before continuing. Function powered by battery.
SLIDE FOOT: When depressed, Zip-Slide moves tabletop toward foot end. When slide returns to central ("0")
position, movement stops for one second before continuing. Function powered by battery.
HEIGHT UP: When depressed and pumping simultaneously, the entire tabletop raises.
HEIGHT DN: When depressed and pumping simultaneously, the entire tabletop lowers.
TREND: When depressed and pumping simultaneously, the head end of the tabletop lowers; or, foot end raises.
REVERSE TREND: When depressed and pumping simultaneously, the head end of the tabletop raises; or, foot
end lowers.
TILT LEFT: When depressed and pumping simultaneously, the tabletop rolls to the left (patient's left or viewing
the table from the head end).
TILT RIGHT: When depressed and pumping simultaneously, the tabletop rolls to the right (patient's right or
viewing the table from the head end).
BACK UP: When depressed and pumping simultaneously, the tabletop back section raises.
BACK DN: When depressed and pumping simultaneously, the tabletop back section lowers.
