4.13 Installing/Removing X-Ray Top
The STERIS 4095 General Surgical Table is designed to enable installation of an X-ray top to allow use of X-ray
cassette film. Attach the four-part X-ray top as follows (see Figure 4-13):
1. Carefully remove X-ray top sections from packing container.
2. Remove pads from tabletop (see S
ECTION 4.12, INSTALLING/REMOVING TABLE PADS).
3. Position X-ray top section over corresponding tabletop section, aligning posts to mounting holes.
4. Press down on X-ray top section until a “click” is heard.
5. Ensure X-ray top sections are securely mounted by gently pulling up on section.
6. Reinstall tabletop pads.
7. Remove and store X-ray top by reversing above steps.

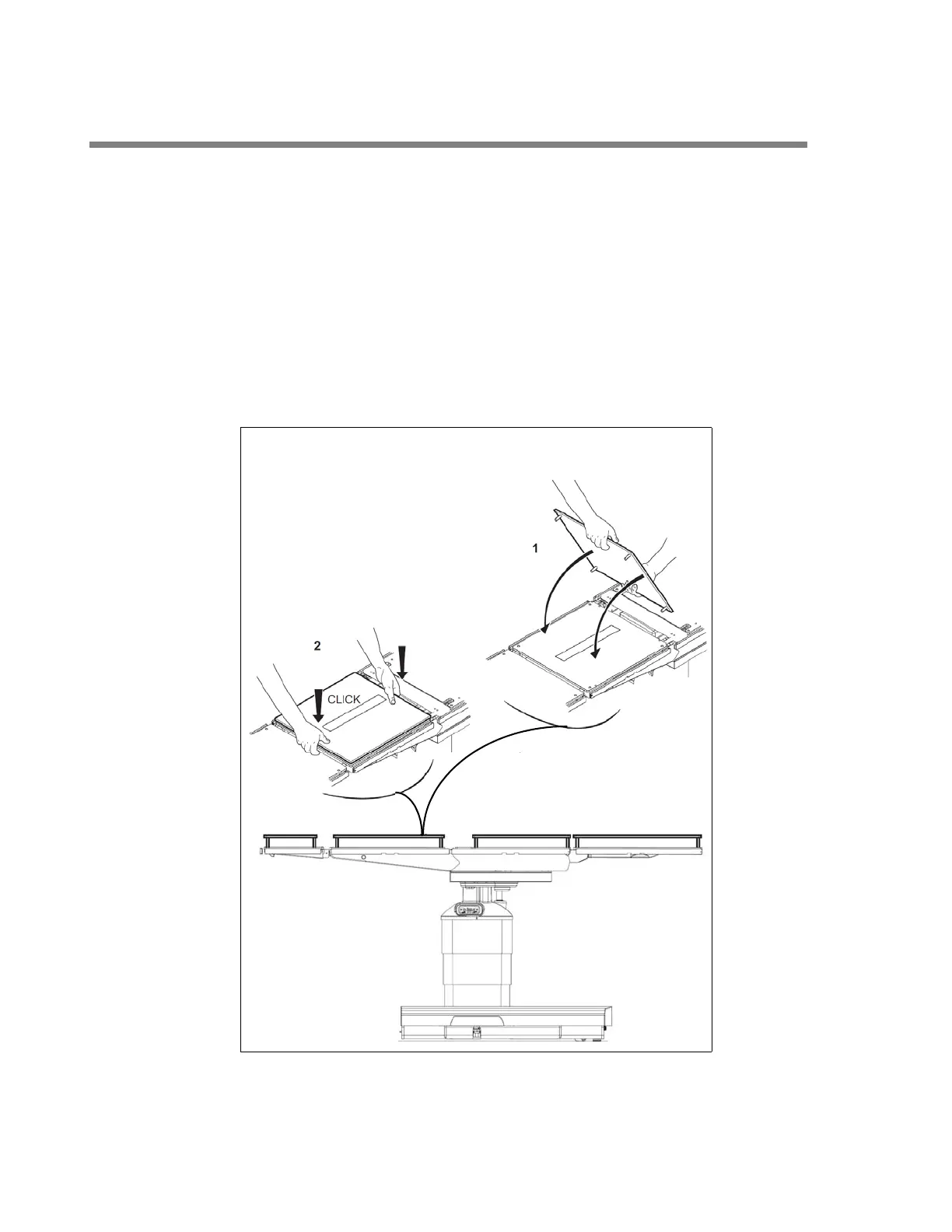

Figure 4-13. X-Ray Top Installation (Typical)
