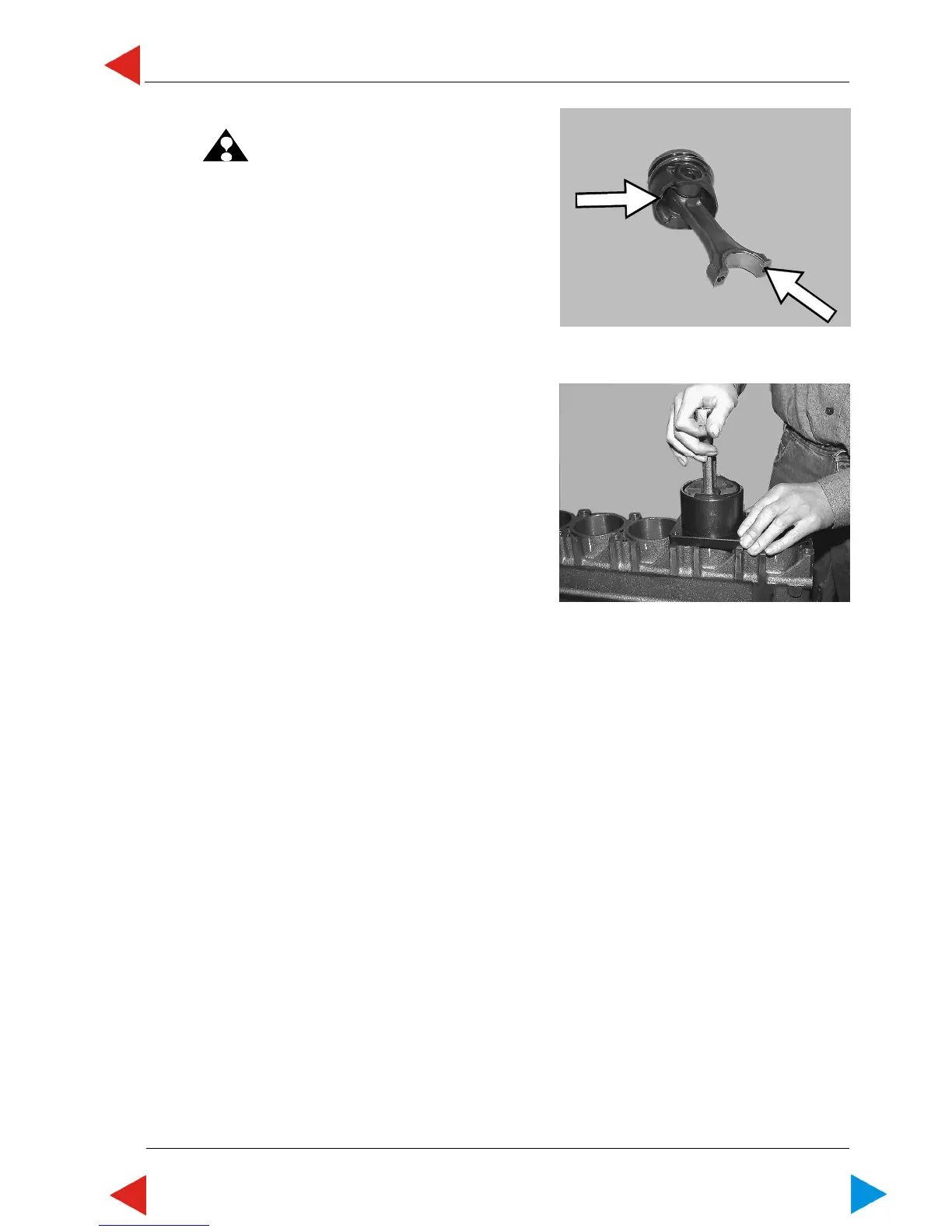

ATTENTION: For assembly of piston and
connecting rod, take care that
positioning groove of connecting
rod bearing is opposite to the
clearance for injection oil nozzle.
NOTE: For best result position rings with piston
gap about one third of a turn a part
from each other gap.
NOTE: When inserting the piston into cylinder
bore, with special tool No. 2300714/1,
take care that arrow marking on piston
bottom shows to the front.
04.01 ill.6
04.01 ill.5
