01 ENGINE
Page ENGINE - 46 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
04.01 ill.1
04.01 ill.2
04.01 ill.3
04.01 ill.4

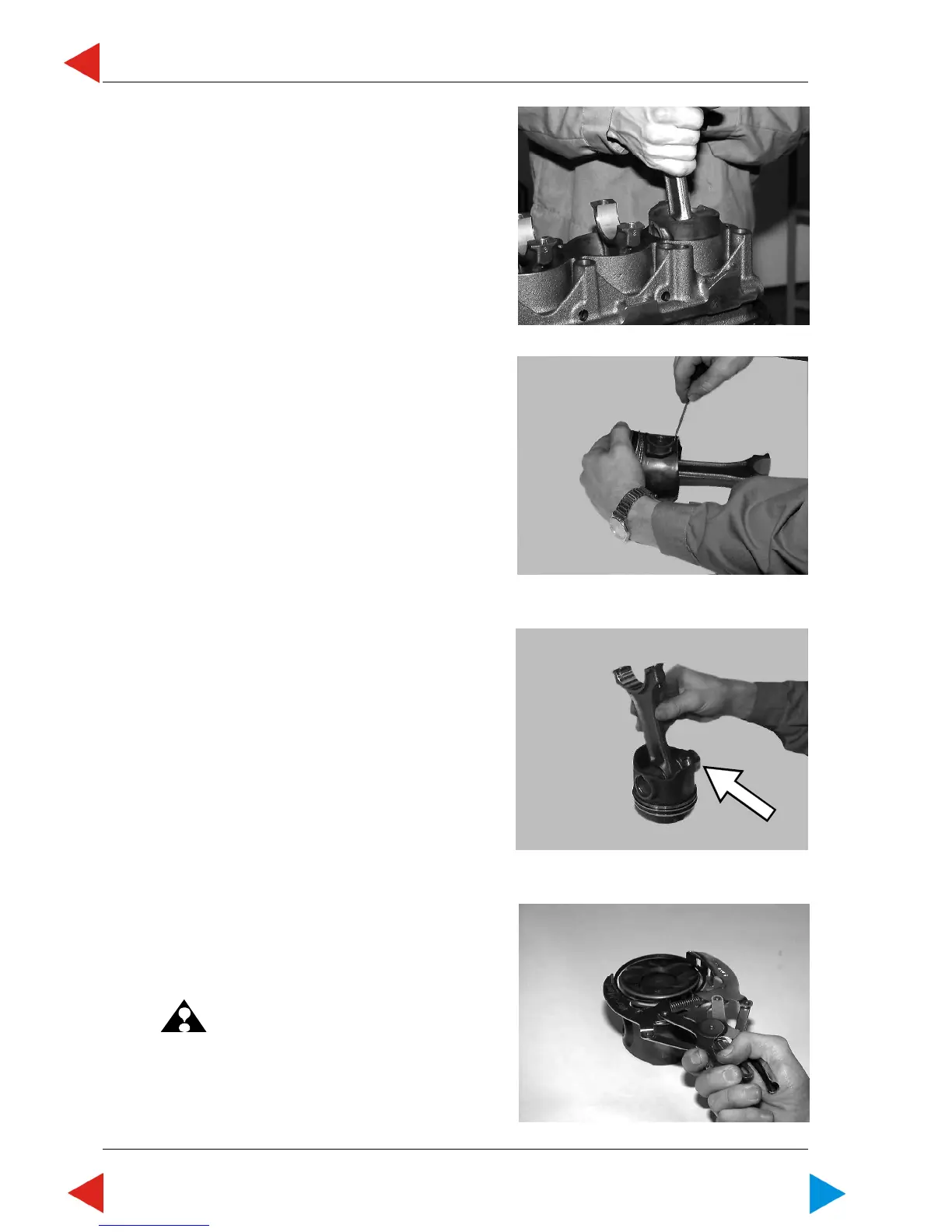

01.04 PISTON AND CONNECTING ROD
01.04.01 Dismantle piston and
connecting rod
Preparation: dismantle engine housing, 01.06.01
disassemble crankshaft, 01.02.01.
1 Pull out piston with connecting rod.
2 Remove retainer ring of piston pin by means of
a screwdriver.
3 Push out piston pin, remove piston from connecting
rod.
4 Remove piston rings by means of piston ring pliers.
Special tool: piston ring pliers 2300906/0
ATTENTION: For assembly of piston rings, take
care of marking "TOP".
In case of a change of cylinder
diameter, take care of respective
repair steps.
