03.08.02 Install control solenoid
To install control solenoid assembly onto camshaft
housing, proceed as follows:
NOTE:Usenewgasketforcontrolsolenoidiftted.
O-ring can be re-used.
1 Remove camshaft housing cover.
2 Move control rack by hand (ill.1) to front position and
hold.
3 Insert control rack lever in to the solenoid as shown.
(ill.2/pos.1)
4 Bring up control solenoid assembly parallel to sealing
surface of camshaft housing, put it onto the dowel
pin(s) (ill.3/pos.1) and hold.
5 Slowly release control rack and fasten control so-
lenoid housing by means of 4 screws.
6 For 4 cyl. engines only
Secure the 4 screws with LOCTITE 243 and tighten
with a torque of 23 Nm +/-2.
For 6 cyl. engines only (item 8-9)
7 Cover the two lower screws with LOCTITE 243 and
slightly tighen.
8 Cover the two upper screws with LOCTITE 243. Bring
into position bracket with potentiometer accelerator
andxwithupperscrews.Tightenthe4screwswith
a torque of 23 Nm+/-2.
9 Check whether the control rack can be moved over
a distance of approx.18mm.
ATTENTION: Pin of control rack position sensor is
spring-loaded and might easily slip
off from the face of control rack lever,
during assembly. In such a case, the
control rack is blocked and thus pre-
ventsresettingtozerodelivery
===> ENGINE FAILURE.
10 Remaining assembly is done in reverse order.
NOTE: The rack position sensor is magnetism
sensitive. All external magnets must
be kept away as the may disturb the
sensor.

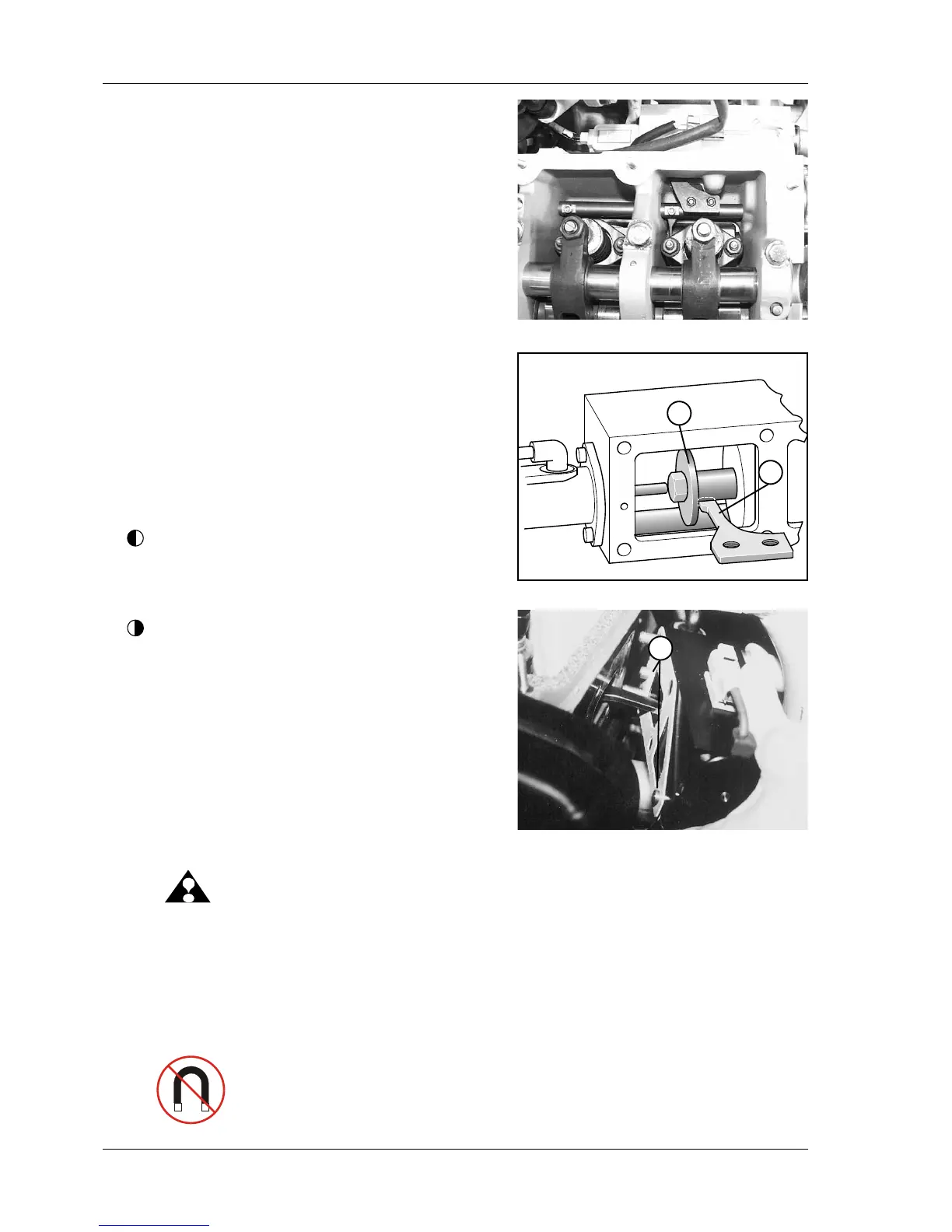

08.02 ill.1
08.02 ill.3
08.02 ill.2
1
1
2
