Z001019/0_6_July 2008 Page ENGINE - 73
01 ENGINE
SERVICE MANUAL MARINE ENGINES
01.06.05 Replace oil suction pipe
Preparation: Exchange engine housing,
01.06.01.
1 Unscrew 2 screws (ill.2/pos.1) on main bearing block.
Remove plate (only possible at 4 cyl. engines) - (ill.2/
pos.2).
2 Pull of oil suction pipe. Check O-ring (ill.2/pos.3),
replace if necessary.
ATTENTION: During assembly of oil suction pipe,
take care that no bracings occur.
Assembly is done in reverse order.
3 Grease O - ring during assembly.
4 Secure the screws with thread protection LOCTITE
243 and tighten with a torque of 10 Nm +/- 1.

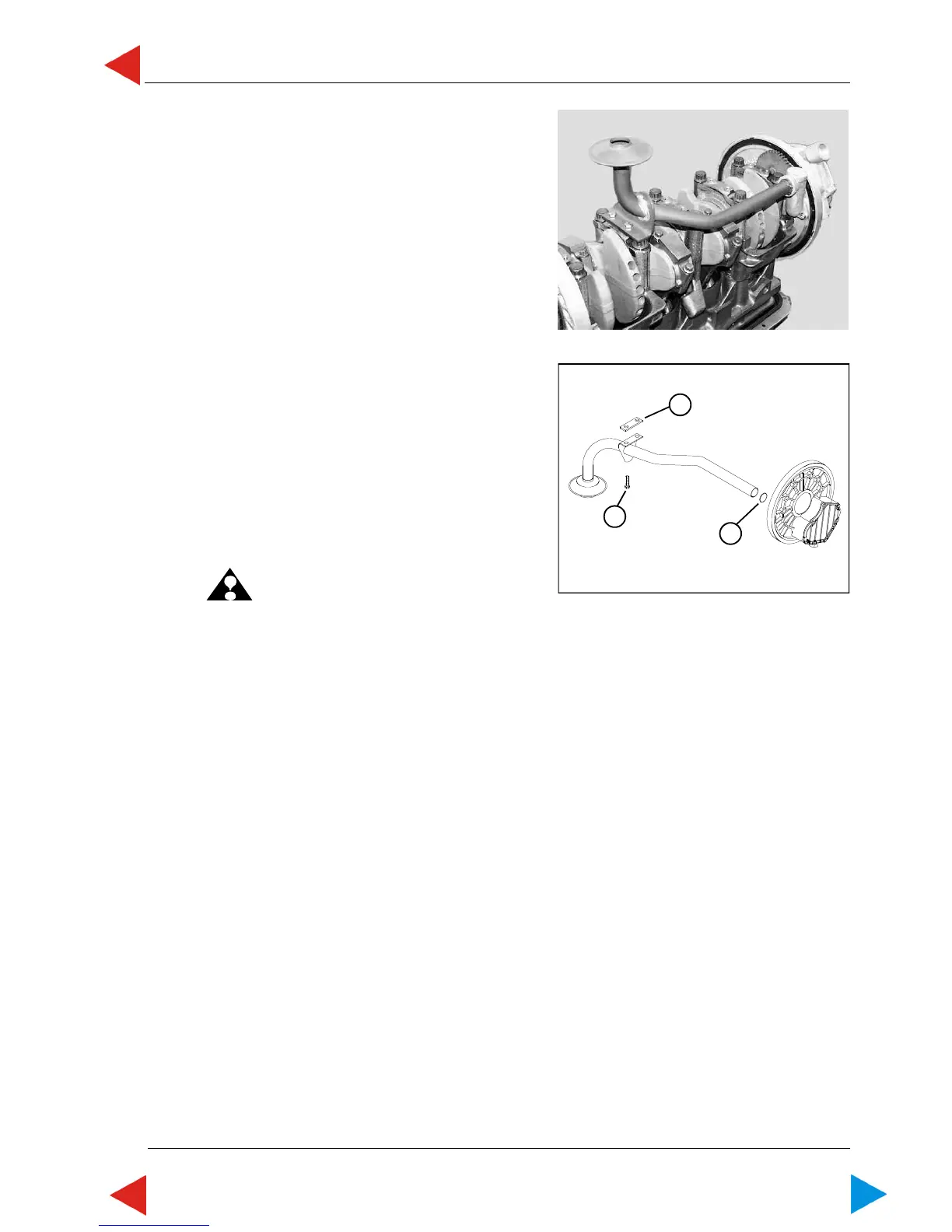

06.05 ill.2
1
2
3
06.05 ill.1
