Z001019/0_6_July 2008 Page ELECTRICAL SYSTEM - 21
06 ELECTRICAL SYSTEM
SERVICE MANUAL MARINE ENGINES

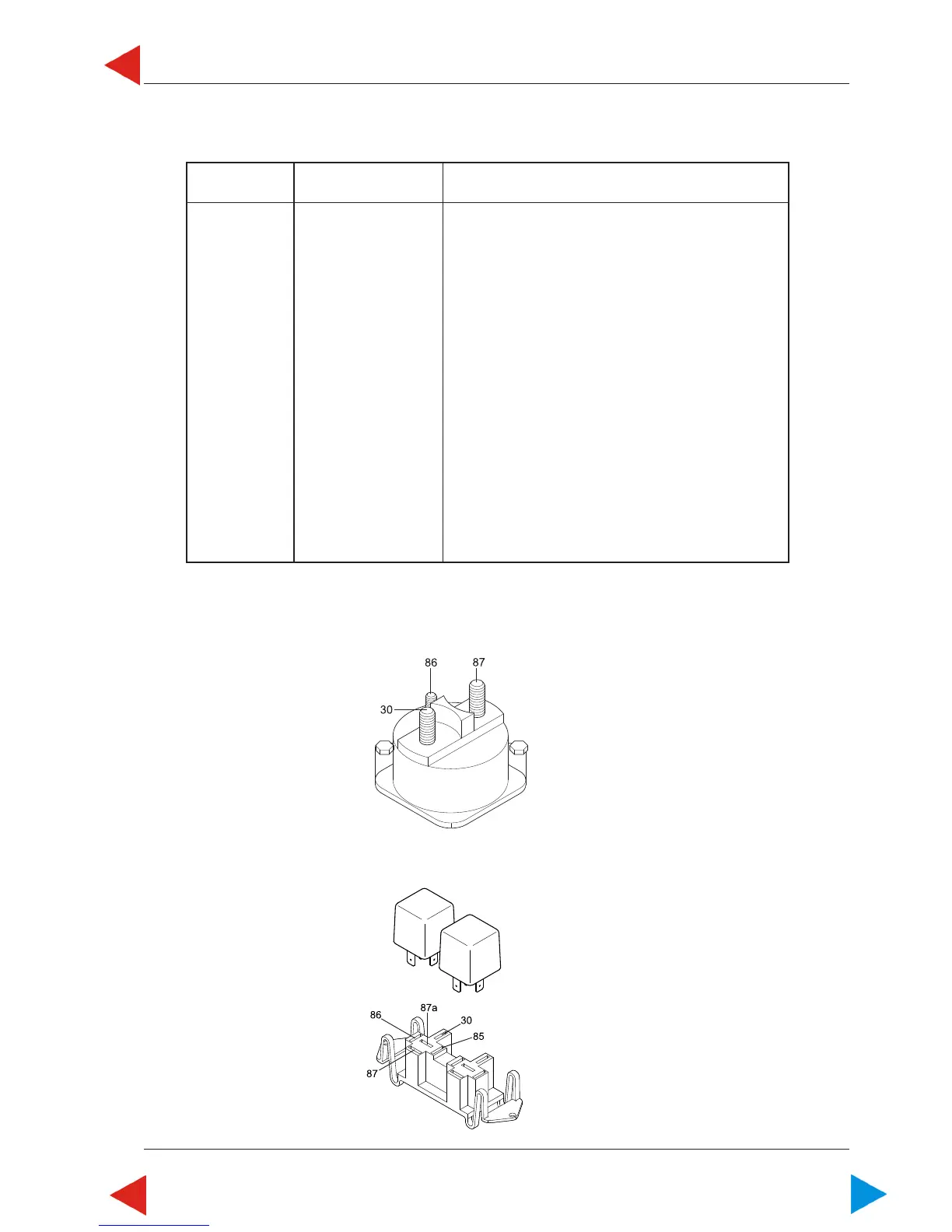

06.05.02.02 Connection start assist relay K28
06.05.02.03 Connection relay socket for K24, K26-1, K26-2 and K27
05.02 ill.2
05.02 ill.3
Designat. Component Description
A5 E - box control unit
F1 fuse 50 A main fuse
F2 fuse 50 A glow plugs
F3 fuse 50 A glow plugs
F4 fuse 5 A permanent current module
F5 fuse 10 A switched current for module (K27)
F6 fuse 10 A fuel pump (K24)
J1 plug 23-pole connection engine cable - instrument cable
K24 relay fuel pump
K26-1 relay preheating
K26-2 realy preheating
K27 relay main circuit
K28 relay start assist relay
X5 plug 35-pole module
06.05.02.01 Components of E - box; to eng.no.: 482 17 000
