01.01.08 Replace external screw adaptor

for oil cooler

Preparation: Disassemble oil cooler,

01.06.01.

1. Screw in external screw part (ill.1/pos.1) with a torque

of 100 Nm +/-5.

2. Put on new O-ring. (ill.1/pos.2)

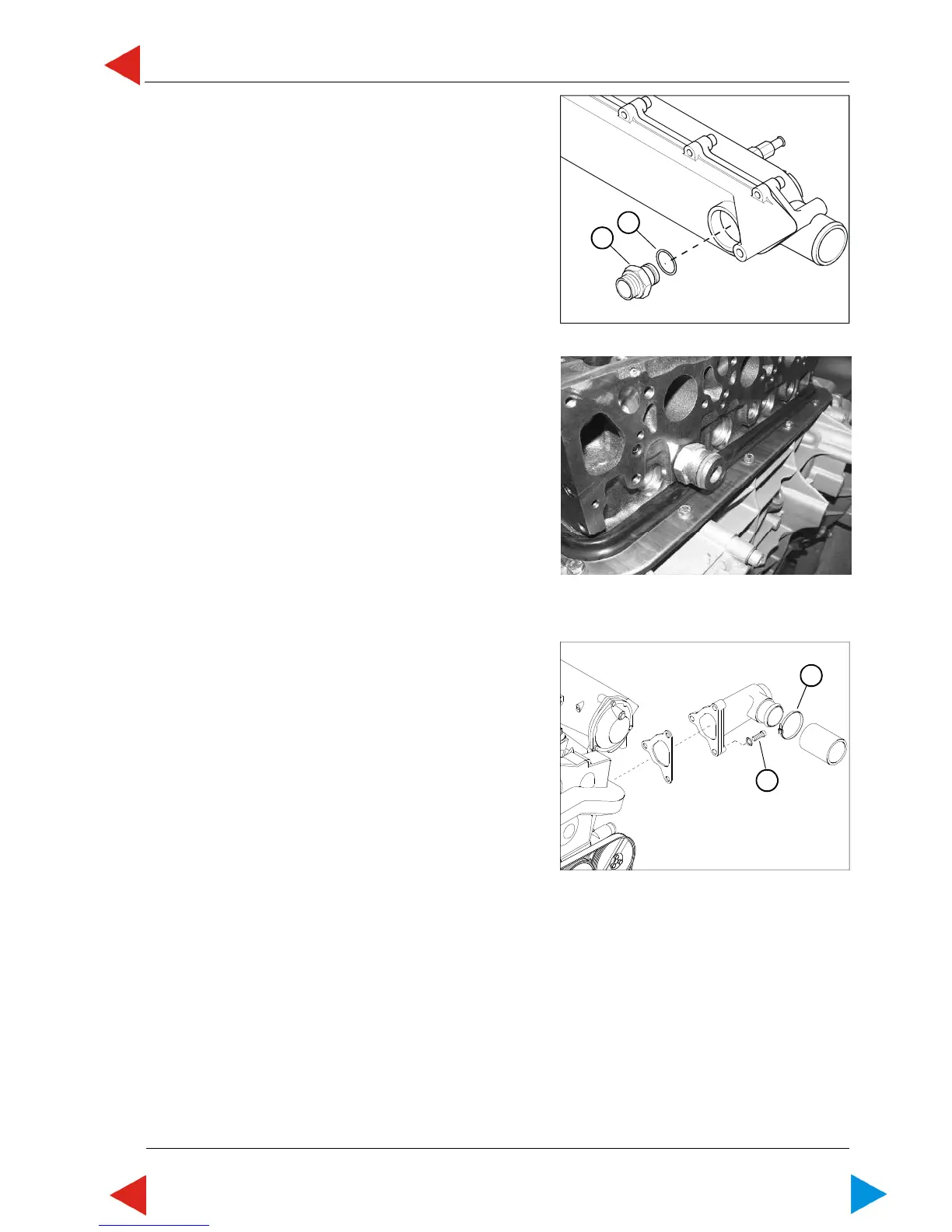

01.08 ill.1

01.08 ill.2

01.09 ill.1

01.01.09 Replace coolant supply pipe

Preparation: Disassemble control solenoid,

03.08.

1 Loosen hose clamp (ill.1/pos.1), remove hose.

2 Loosen three allen head screws (SW5) (ill.1/pos.2),

remove coolant supply pipe.

NOTE: Use new seal for assembly.
