01 ENGINE
Page ENGINE - 42 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES

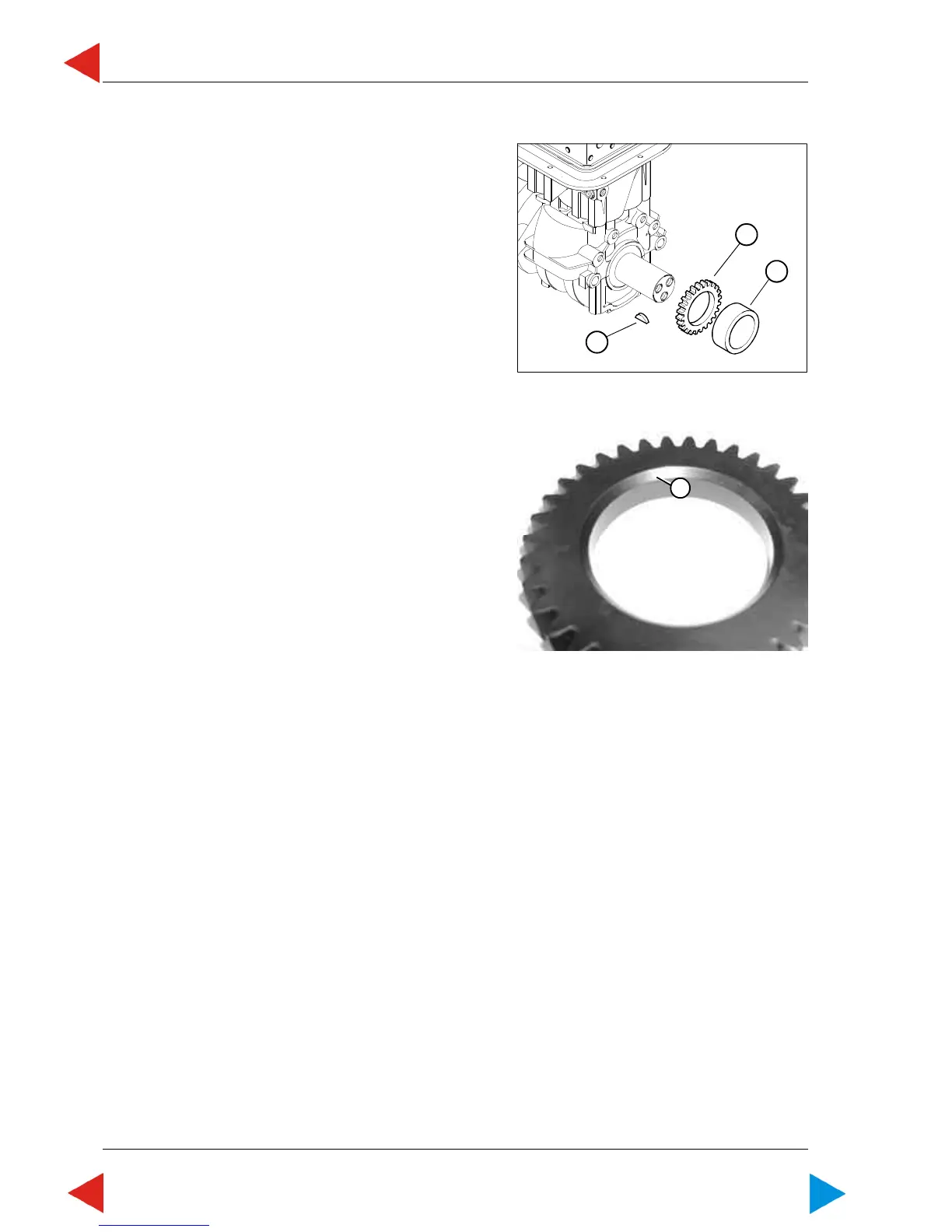

02.02 ill.1
1
2
3
01.02.02 Replace gear for oil pump
drive
Preparation:
Disassemble engine housing, 01.06.01,
Disassemble timing belt,
Disassemble oil pump, 01.06.02,
Disassemble oil suction pipe, 01.06.03.
1 Remove woodruff key.(ill.1/pos.1)
2 Pull off gear (ill.1/pos.2) with sleeve ring (ill.1/pos.3).
NOTE: Apply surface sealing agent 509 to
contact surfaces of gear towards
crankshaft and sleeve ring.
3 Place oil pump drive gear with larger chamfer against
crank shaft contact surface to clear machined shaft
radius. (ill.2/pos.1)
02.02 ill.2
1
