Page COOLING SYSTEM - 24 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
05 COOLING SYSTEM
05.01.05 Assembly of exhaust manifold
Preparation: Check heat exchanger,
refer to 05.01.03
1 Clean sealing surfaces on motorblock.
2 Clean sealing surfaces on exhaust manifold (ill.2/
pos.1).
For 4 cyl. engines only (item 3-5)
3 Insert O-ring on cyl. bloc (ill.3/pos.1) by means of
Molykote.
4 Insert two O-rings (ill.4/pos.1) into exhaust manifold
by means of Molykote.
ATTENTION: different sizes
5 Thinly cover sealing surfaces (ill.4/pos.2) of exhaust
manifold with surface sealing agent LOCTITE 5900.

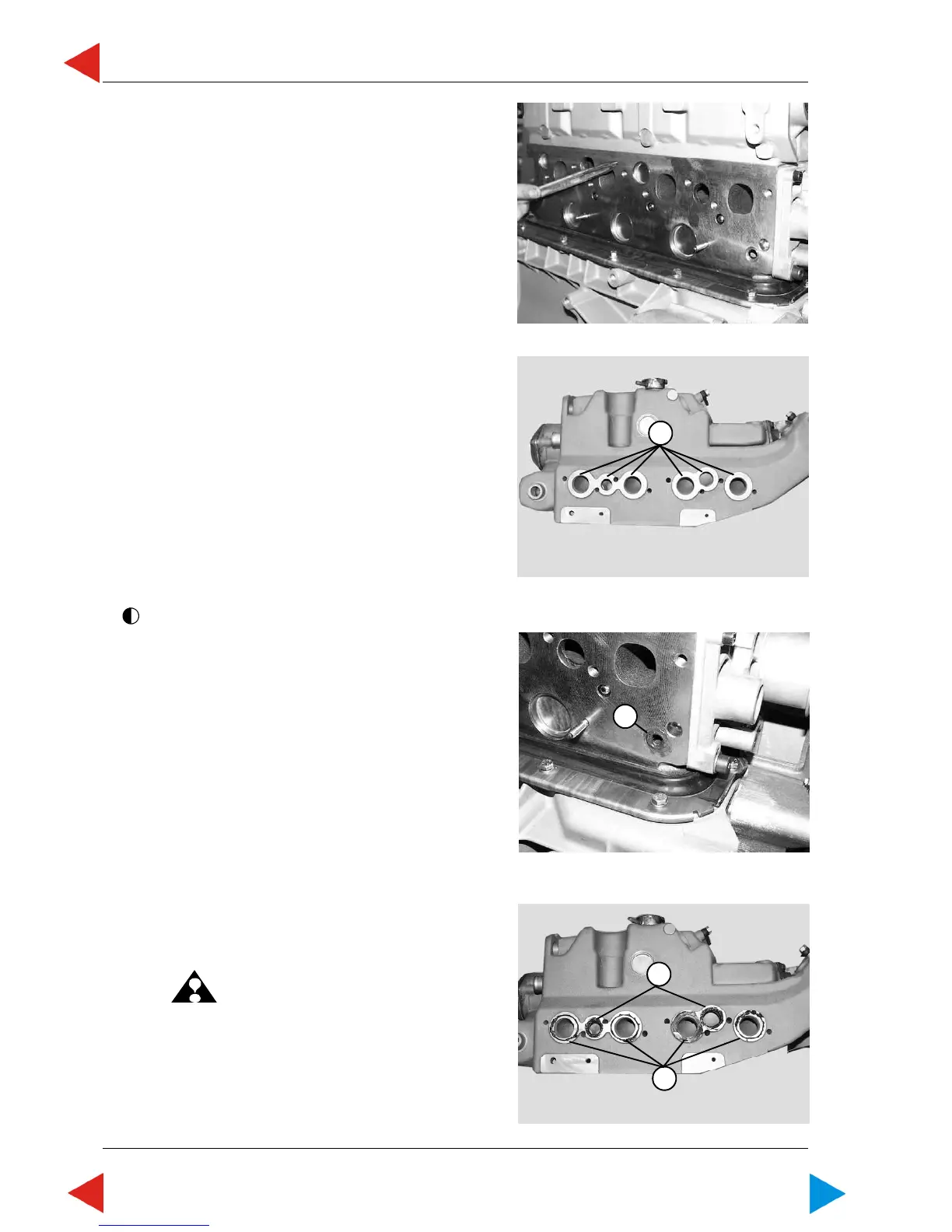

01.05 ill.2
01.05 ill.1
01.05 ill.3
01.05 ill.4
1
2
1
1
