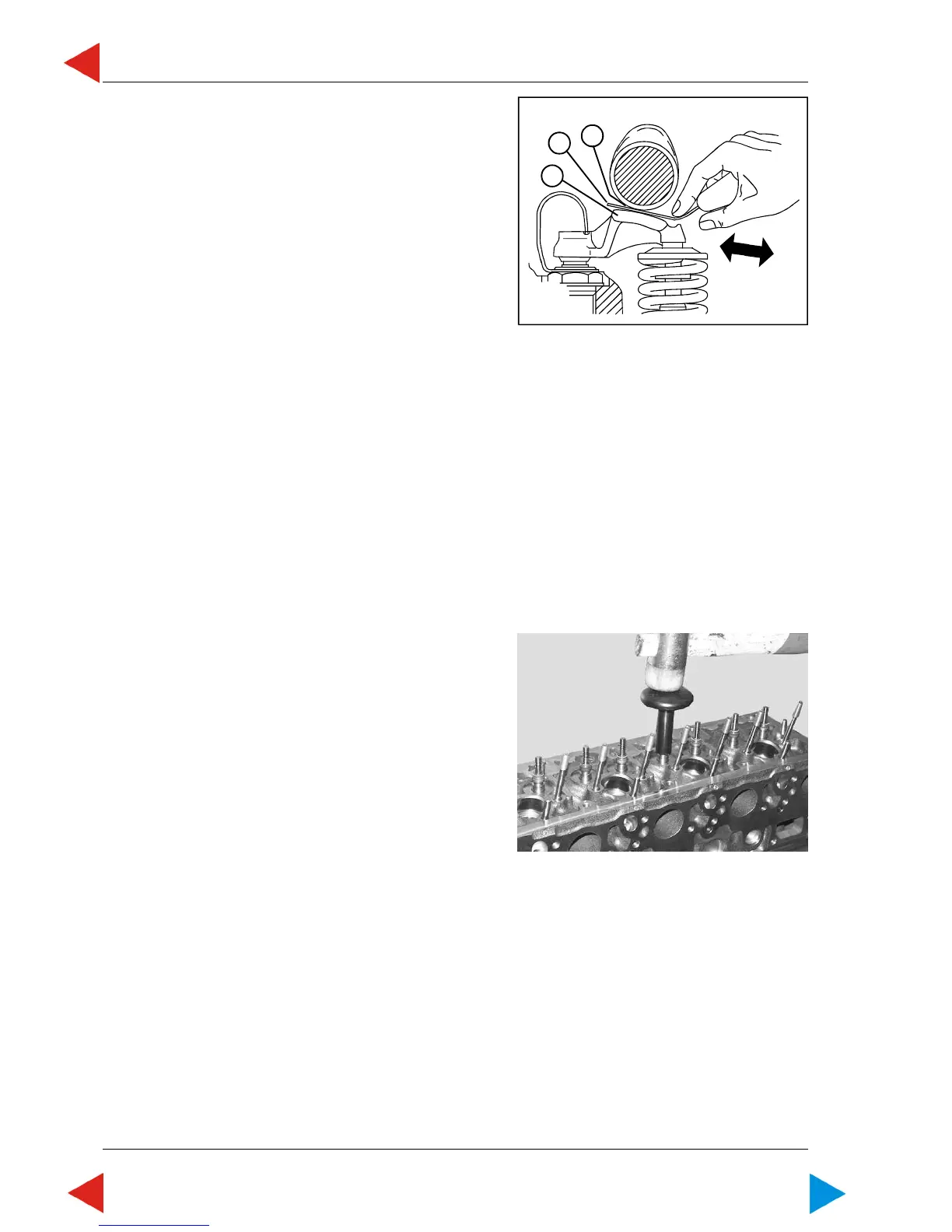

01.01.02 Adjust valve clearance
Preparation: Remove camshaft housing cover
Valve clearance is adjusted by means of special tool
No. VR 00125/0 and adjusting gauge 2300712/3
(ill.1/pos.1) between camshaft base circle (ill.1/pos.2)
and cam follower (ill.1/pos.3).
NOTE: index value outlet valve 0.25 mm
index value intake valve 0.25 mm
01.02 ill.1
1
3
2
01.03 ill.1
01.01.03 Replace valve guide
Preparation: Disassemble valves, 01.01.01.
1 Press out valve guide with special tool
VR00154/0.
2 Insert valve guide with special tool VR00109/0.
