01 ENGINE
Page ENGINE - 56 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
01.05.04 Replace camshaft
Preparation: disassemble camshaft housing,
refer to 01.05.01.
1 Loosen hexagon nut (SW30). (ill.1/pos.1)
2 Disassemble camshaft wheel with special tool No.
VR00113/0 (ill.2), remove washer.
3 Remove axial holder of camshaft and rocker arm
shaft. (ill.3)
4 Disassemble all cam followers, refer to 01.05.07.

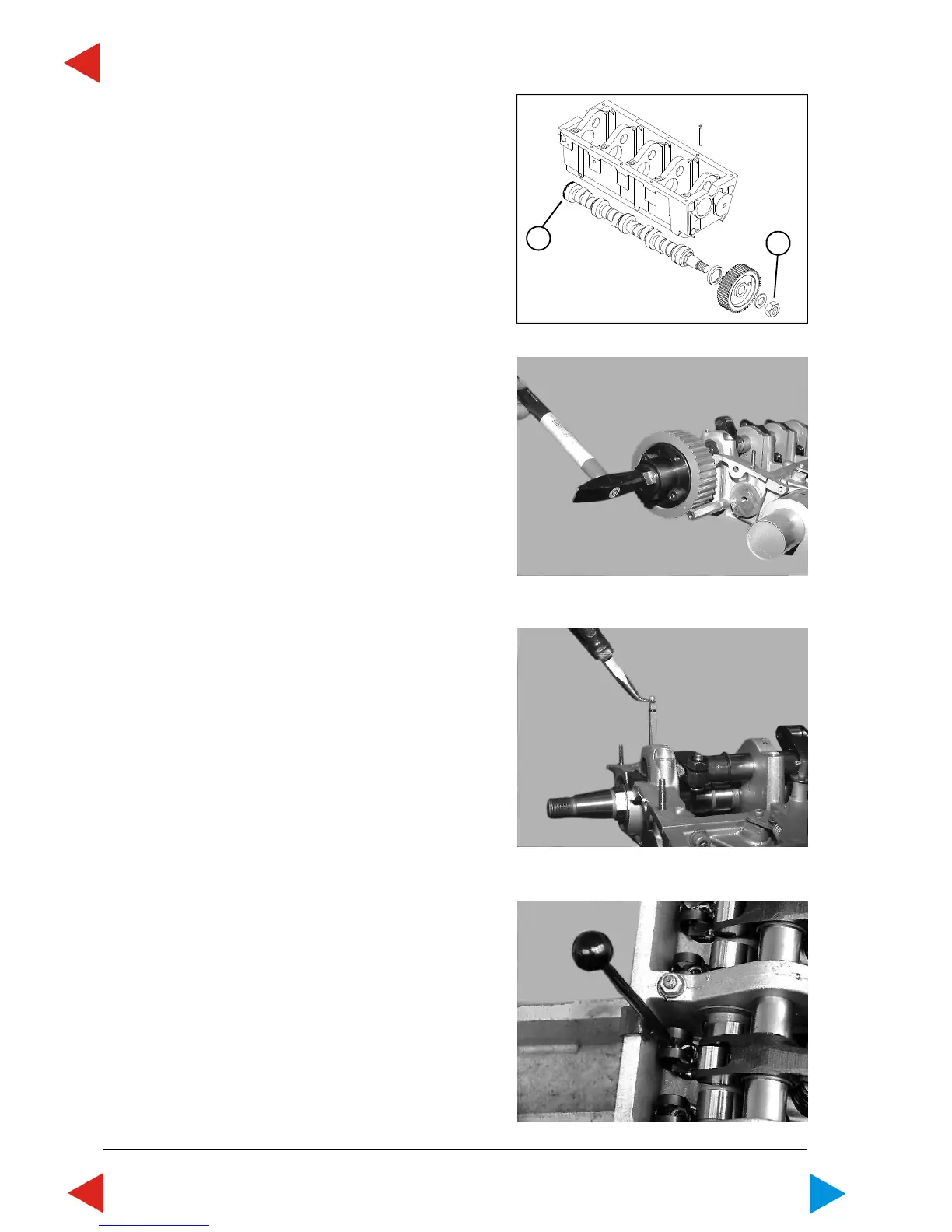

05.04 ill.1
05.04 ill.2
05.04 ill.3
05.04 ill.4
1
2
