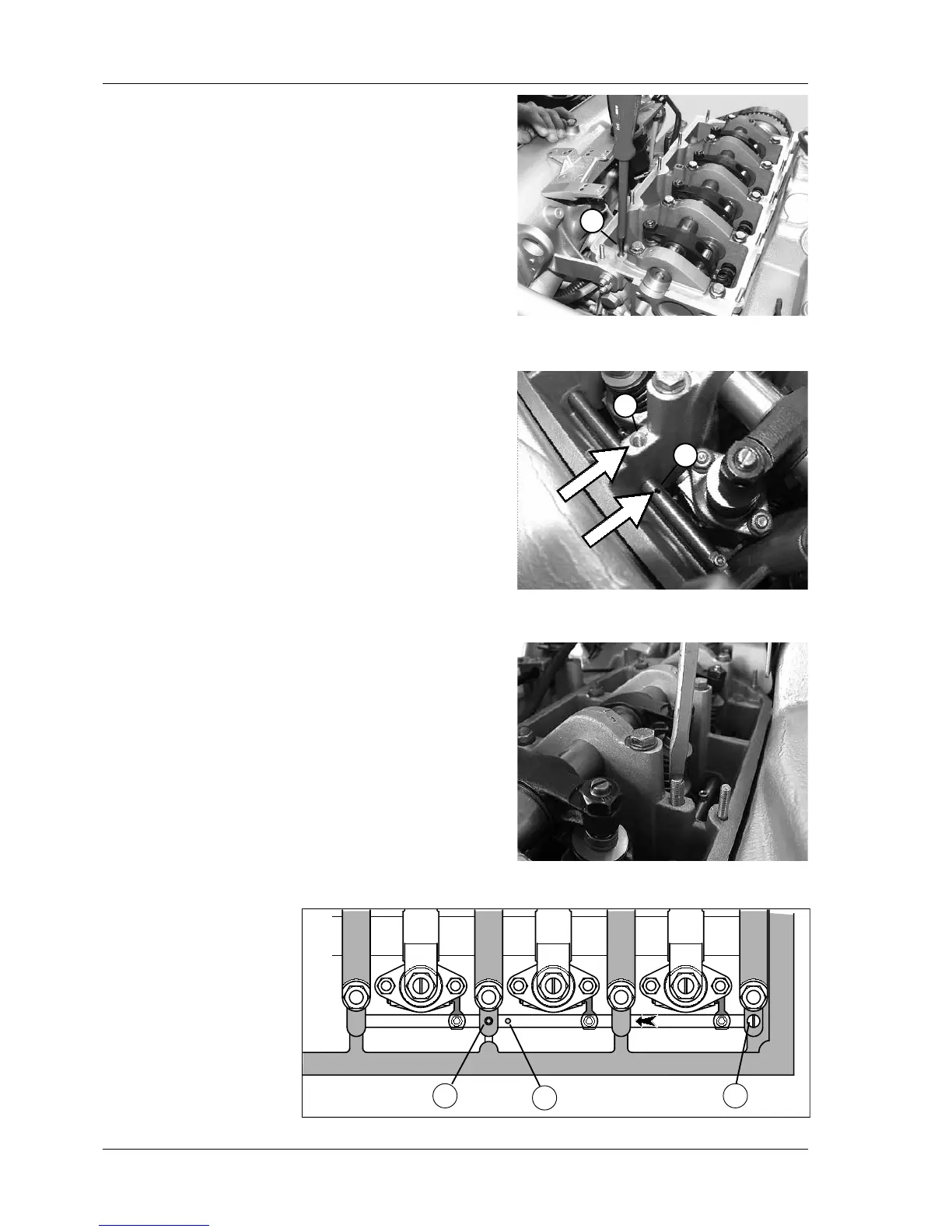

03.02.03 Fix control rack
Preparation: Remove camshaft housing cover,
refer to 01.00.02
1 Unscrew setpin of control rack (ill.1/pos.1) at the back
of camshaft housing, as shown.
2 Position bore (diameter 4 mm) in control rack(ill.2/
pos.1) over reference bore (ill.2/pos.2) in the bulkhead
wall.
3 Pull control rack manually to the front, against spring
resistance, and hold. Insert setpin, as shown, and
fasten sturdily.
02.03 ill.1
02.03 ill.2
02.03 ill.3
1
02.03 ill.4
2
3
1
1
2
