Z001019/0_6_July 2008 Page ELECTRICAL SYSTEM - 73
ELECTRICAL SYSTEM
SERVICE MANUAL MARINE ENGINES
single instruments double instruments (requires special sensor)

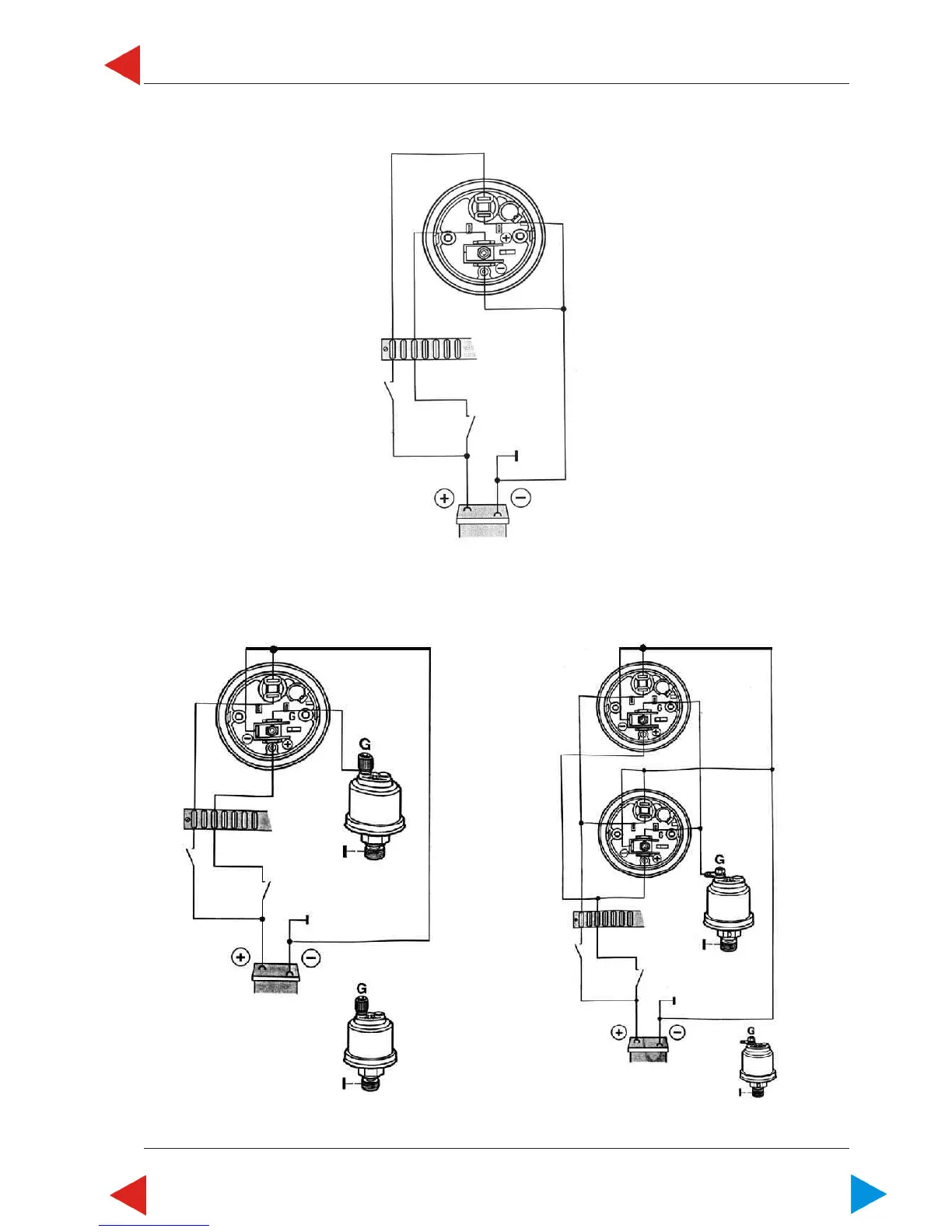

06. 07. 14. 03 Circuit diagram voltmeter (optional)
06. 07. 14. 04 Circuit diagram oil pressure gauge (optional, sensor B19 - gauge P2)
sensor marking "G"
one sensor for two displays
07.14 ill.2
07.14 ill.3
06. 07. 14. 04 Circuit diagram oil pressure gauge (optional, sensor B19 - gauge P2)
sensor marking "G"
one sensor for two displays
07.14 ill.2
07.14 ill.3
