STEYR 4 CYLINDER User Manual

01 ENGINE
Z001019/0_6_July 2008 Page ENGINE - 3
SERVICE MANUAL MARINE ENGINES
01.00 ENGINE TIMING, ENGINE MOUNT
01.00.01 Lock crankshaft
Preparation: Put engine out off operation
Disconnect battery
Remove camshaft housing cover, 01.00.02
Special tool: for vibration damper screws No. 2300767/0
Locking pin No. 2300551/2

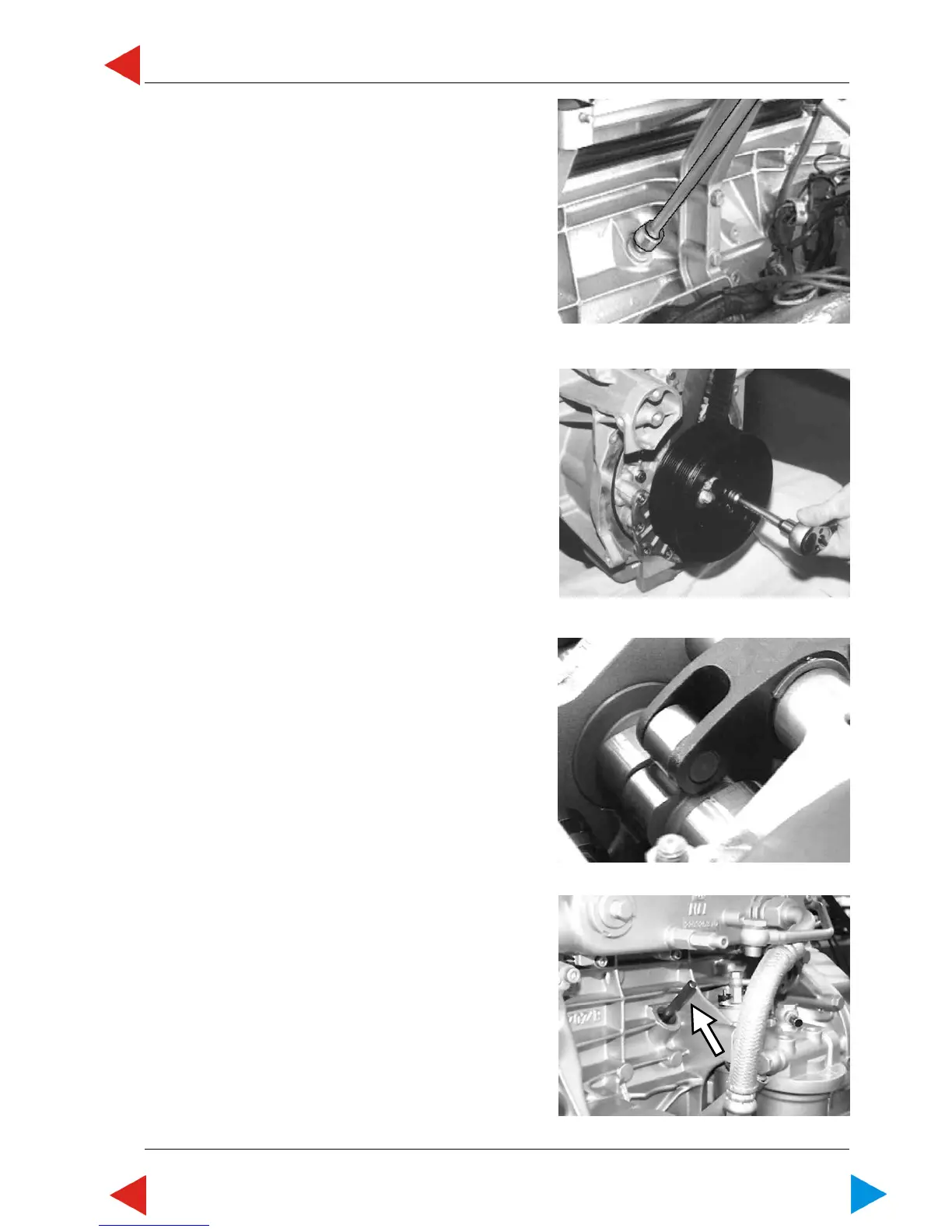

1 Unscrew allen head plug screw (ill.1) (SW 10).
2 Turn crankshaft by means of special tool 2300767/0
(ill.2) until roller of rocker arm cyl. 1 runs up the ramp
of injection cam (ill.3).
3 Insert locking pin 2300551/2 into guide hole and
slightly press it against crankshaft counter weight.
00.01 ill.1
00.01 ill.2
00.01 ill.3
00.01 ill.4
