Removal of locking pin
1 Pull out locking pin 2300551/2.
2 Screw in plug screw with hexagon socket and tighten
with 50 Nm +/- 5.
NOTE: Use new copper sealing.
ATTENTION: Prior to starting, make sure that
locking pin has been removed.
3 Clean sealing surface of camshaft housing and
camshaft housing cover.
Check seal for hardening and damage. Exchange, if
necessary. See 01.00.02
4 Remaining assembly is done in reserve order.
4 Continue to turn crankshaft slowly manually in
direction of rotation until locking pin engages into slot
of crankshaft.
ATTENTION: Never actuate starter engine as long
as locking pin is inserted.

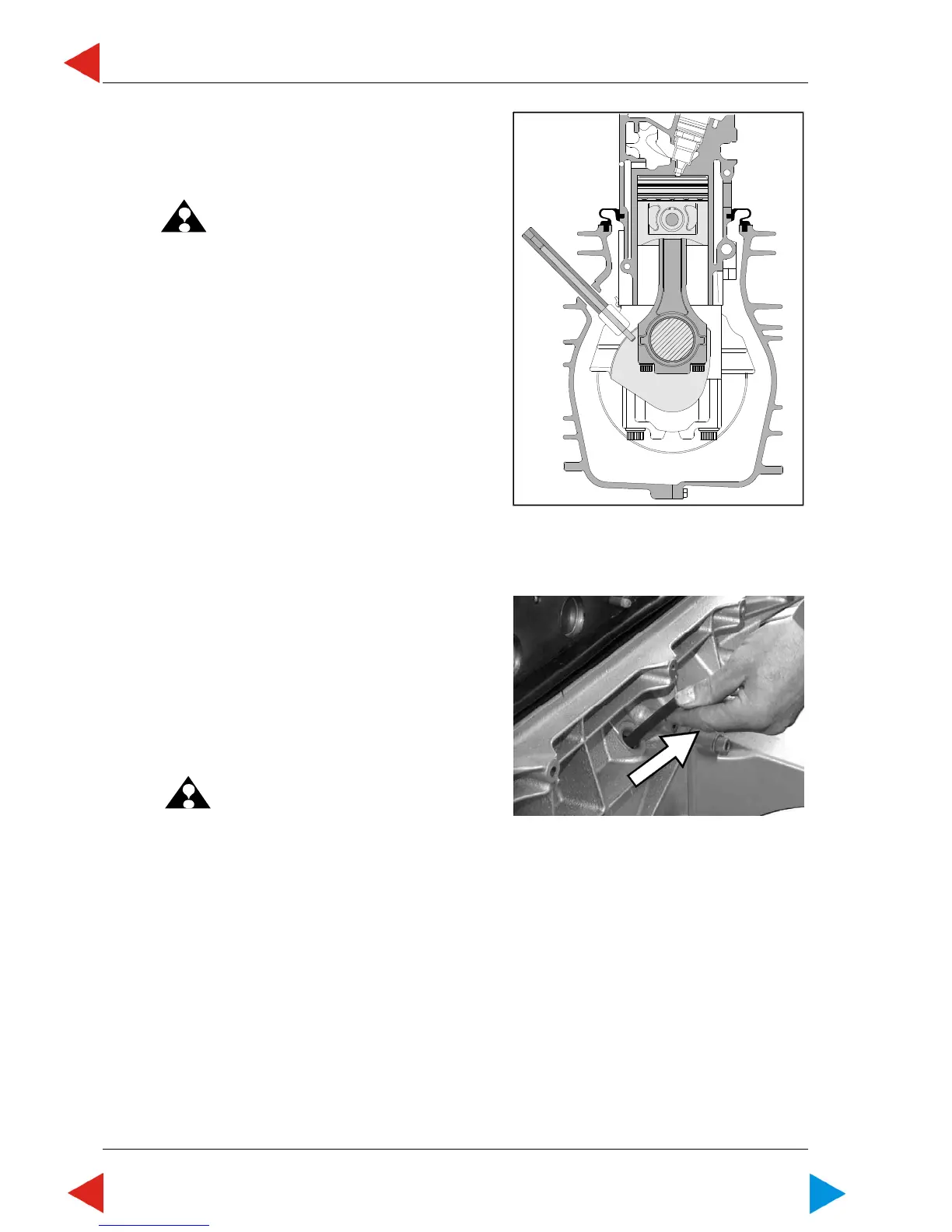

00.01 ill. 6
00.01 ill.5
