Z001019/0_6_July 2008 Page COOLING SYSTEM - 27
SERVICE MANUAL MARINE ENGINES
05 COOLING SYSTEM
05.03 PIPES, THERMOSTAT
05.03.01 Coolant pipes and hoses
Remove defective hoses by loosening the respective hose clamps and replace.
ATTENTION: Tightning toose clamps with a torque of 3,5 Nm.
05.01.08 Exchange triple cooler
Disassembly
Preparation: vent fuel system, refer to 03.09,
item 1
1. Remove drain plug at triple cooler to drain the raw
water system.(ill.1/pos.1)
2. Loosen union nuts of oil hoses (ill.1/pos.2) (SW 32)
at the triple oil cooler.
3. Loosen hose clamps (ill.1/pos.3) of hose to raw
water hoses.
4. Loosen fuel lines (ill.1/pos.4) (SW 19) and hydraulik
lines (SW 22)
5. Unscrew three Allen head screws (SW6) (ill.1/pos.5)
of clamps, and remove triple cooler (ill.1/pos.6).
Assembly
Assembly is done in reverse order.
ATTENTION: Use new sealing rings for oil hoses.
Secure union nuts of oil hoses with
LOCTITE 243 and tighten with a
torque of 45 NM +/-2

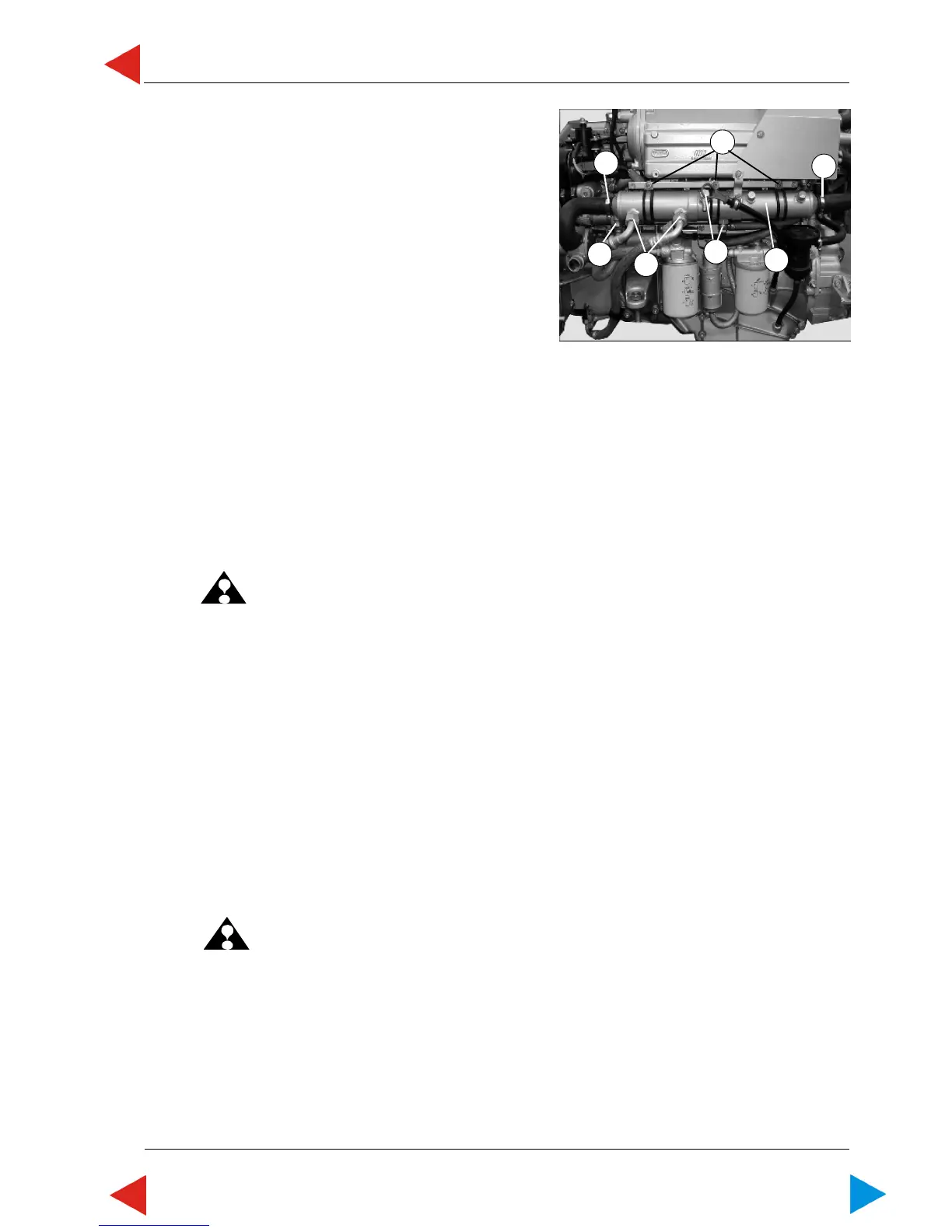

01.08 ill.1
1
2
3
4
5
6
3
