Z001019/0_6_July 2008 Page ELECTRICAL SYSTEM - 29
06 ELECTRICAL SYSTEM
SERVICE MANUAL MARINE ENGINES
06.05.03.01 Components of E-box; from eng. no.: 482 18 000 / 682 18 000 + SOLAS

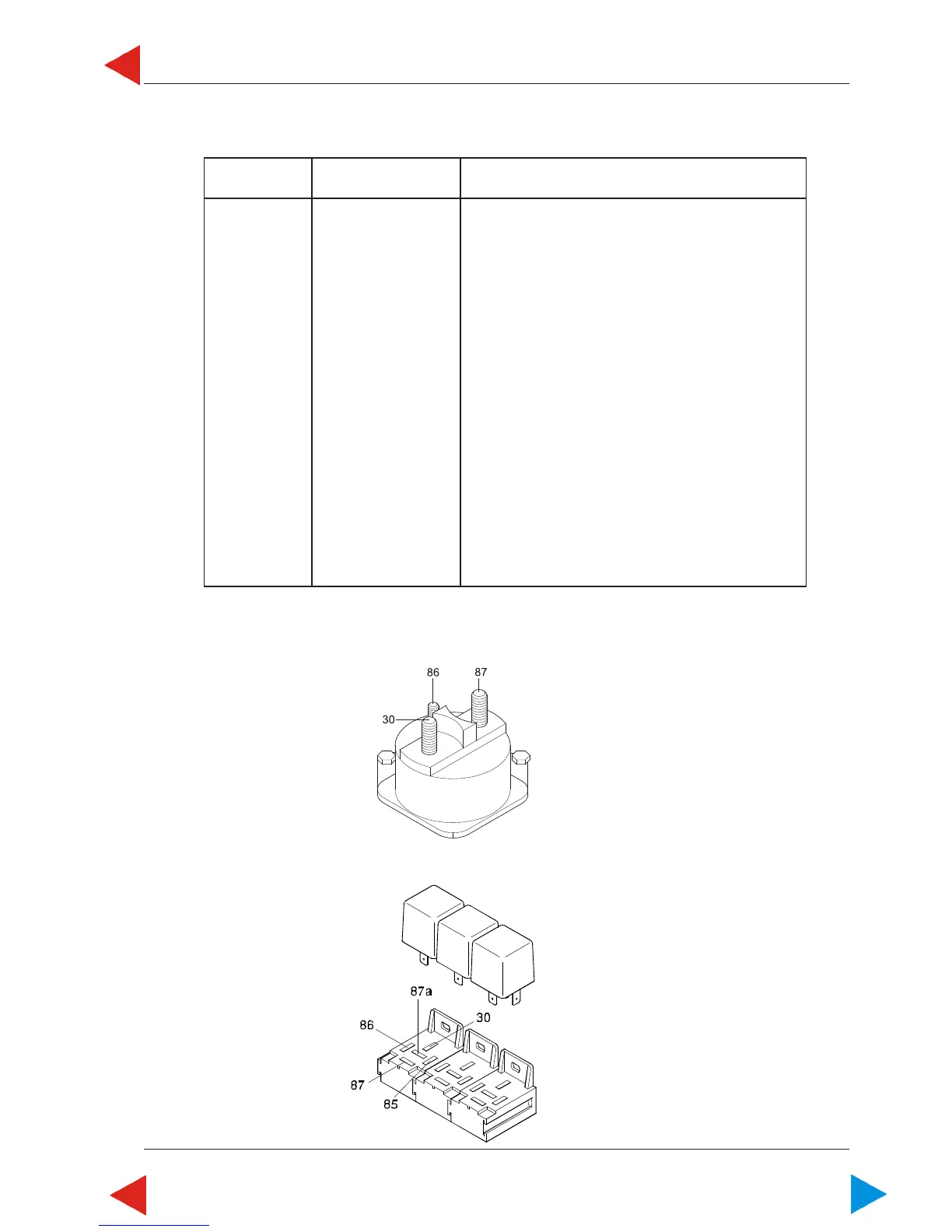

06.05.03.02 Connection relay K28 and K26/2
05.03 ill.2
05.03 ill.3
Designat. Component Description
A5 E - box control unit
F1 fuse 50 A main fuse
F2 fuse 50 A glow plugs
F3 fuse 50 A glow plugs
F4 fuse 5 A permanent current module
F5 fuse 10 A switched current for module (K27)
F6 fuse 10 A fuel pump
J1 plug 23-pole connection engine cable - instrument cable
K24 relay fuel pump
K26-1 relay preheating
K26-2 realy preheating
K27 relay main circuit
K28 relay start
X3 plug 2-pole inversion switch (for SOLAS only)
S3 inversion switch (for SOLAS only)
X5 plug 35-pole module
06.05.03.03 Connection relay socket for K24, K26-1 and K27
