Z001019/0_6_July 2008 Page ELECTRICAL SYSTEM - 43
06 ELECTRICAL SYSTEM
SERVICE MANUAL MARINE ENGINES
Pin Cable - no. Explication
A 15000-01 ignition 15
B 15000-02 ignition 15
C 30012-07 terminal 30
D 30012-08 terminal 30
E 31000-01 ground connection
F 31000-02 ground connection
G 60616-01 lamp - oil pressure L3
H 31615-01 warning horn
J 60706-01 const. speed switch
K 60614-01 temperature display
L 61000-02 alternator D+
M blind plug
N 60613-01 tachometer (speed)
O 60121-01 oil pressure gauge (optional)
P 60810-01 check engine lamp
Q 50000-02 ignition lock start
R 50000-03 ignition lock start
S 60120-01 trim (optional)
T 61001-02 alternator B+ 24V DC (ifused)
U 60901-03 CAN-low
V 60900-03 CAN-high
W blind plug
X blind plug

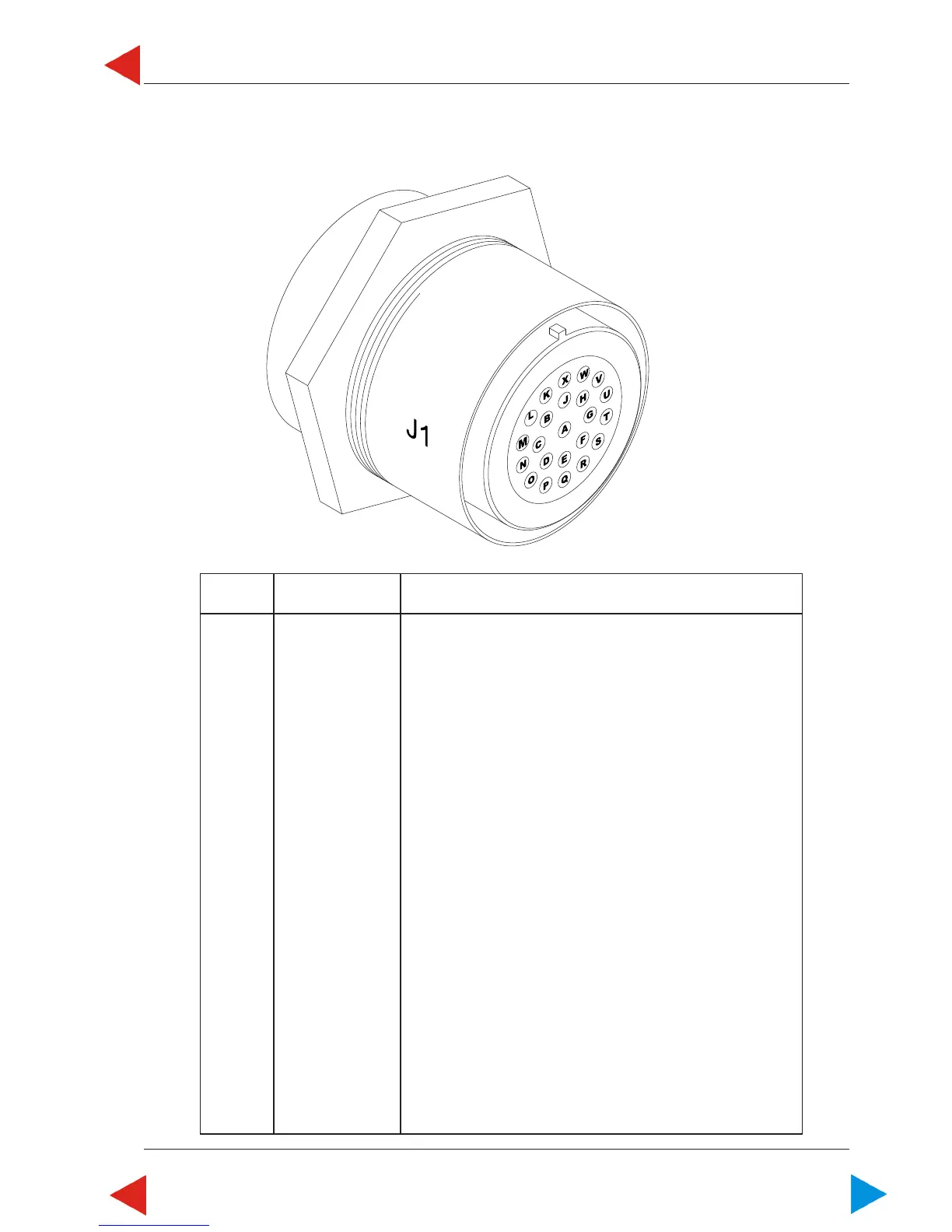

06.06.07 Connection J1
06.07 ill.1
