01 ENGINE
Page ENGINE - 32
Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
01.01.05

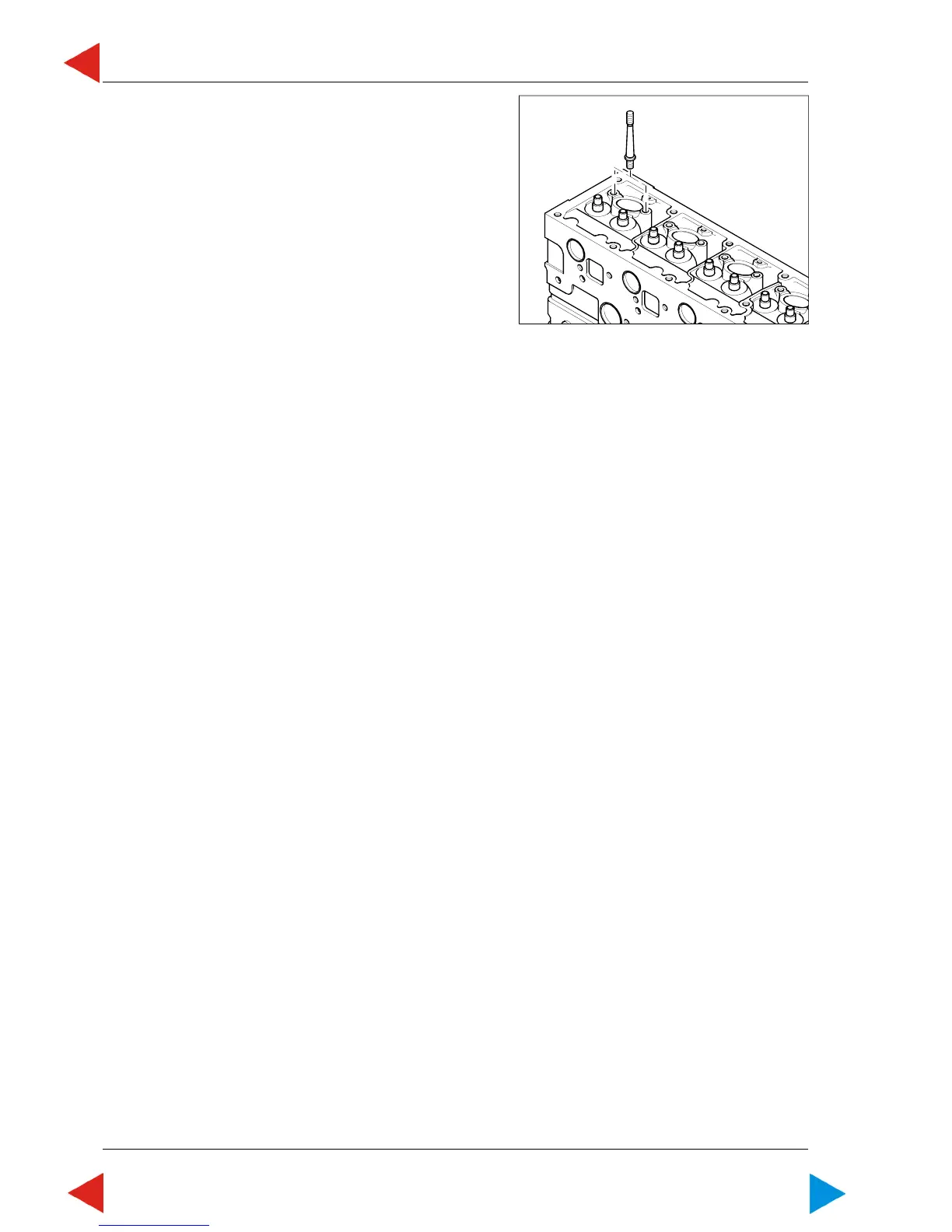

Replace stud bolt for
unit injector
Preparation: Remove camshaft housing cover,
01.05.01
Remove unit injector, 03.02.02
1
Tighten threaded pin with a torque of
21 +/- 1 Nm.
01.05 ill.1
