01 ENGINE
Page ENGINE - 72 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
01.06.04 Replace oil pump
(front ring carrier)
Preparation: dismantle engine housing, 01.06.01.
remove timing belt
remove vibration damper
1 Pull of timing belt sprocket by means of special tool
No. 2300636/0 (ill.1).
2 Loosen 6 hexagon screws (SW13) (ill.2), remove oil
pump housing.
ATTENTION:Replace radial shaft sealing ring (ill.3/
pos.1) in oil pump housing. Mount oil
pump housing, and insert radial shaft
sealing ring with special tool No.
VR00118/0.
NOTE: Check sealing ring (ill.3/pos.2) on oil
pump housing for damage; exchange
if necessary. (wet new sealing ring
with surface sealing agent LOCTITE
5910)
Apply LOCTITE 509 to flange surface
to front main bearing block and oil
pump (front ring carrier)
Secure the 6 hexagon screws (ill.2)
with thread protection LOCTITE 243
and tighten with a torque of
23 Nm +/-2.
õ

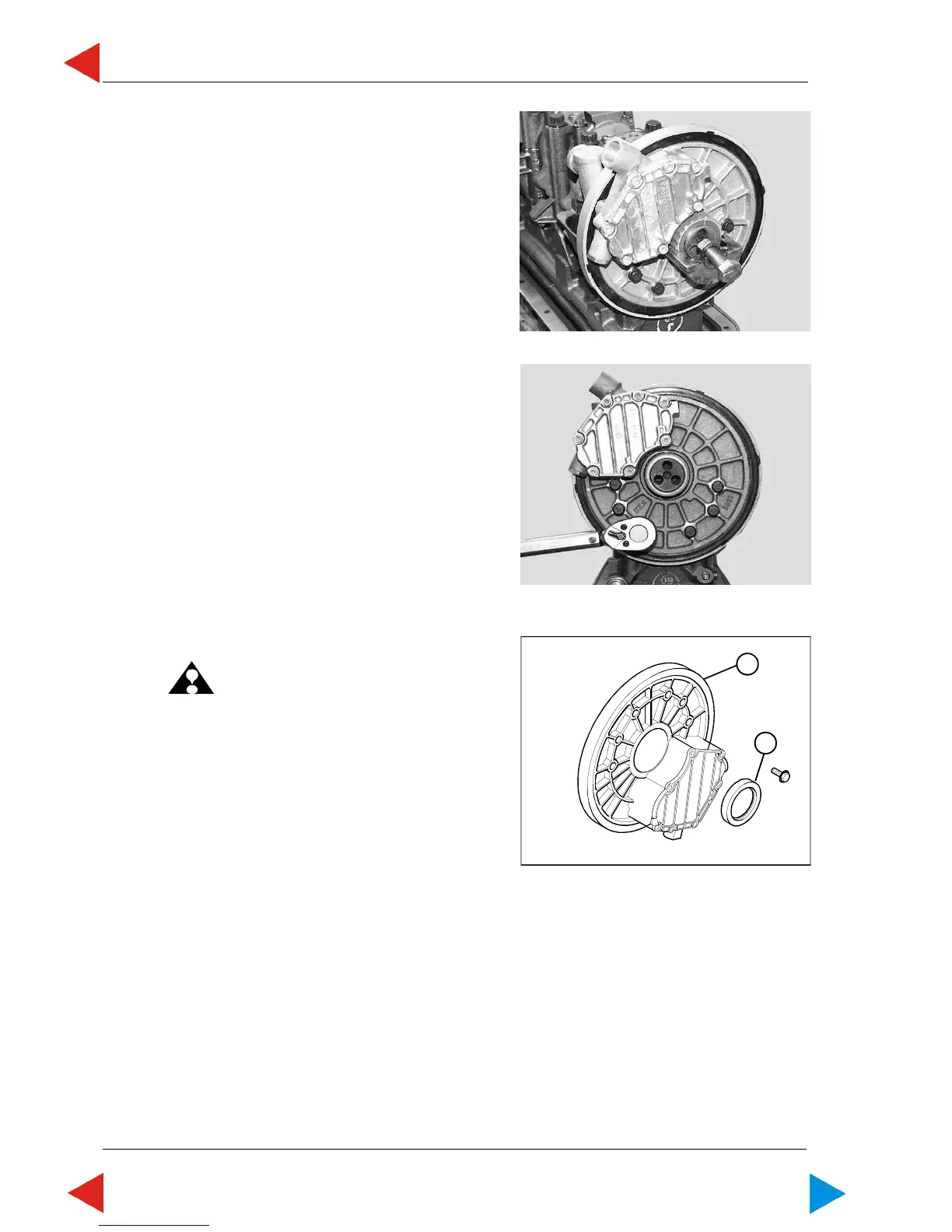

06.04 ill.1
06.04 ill.2
06.04 ill.3
