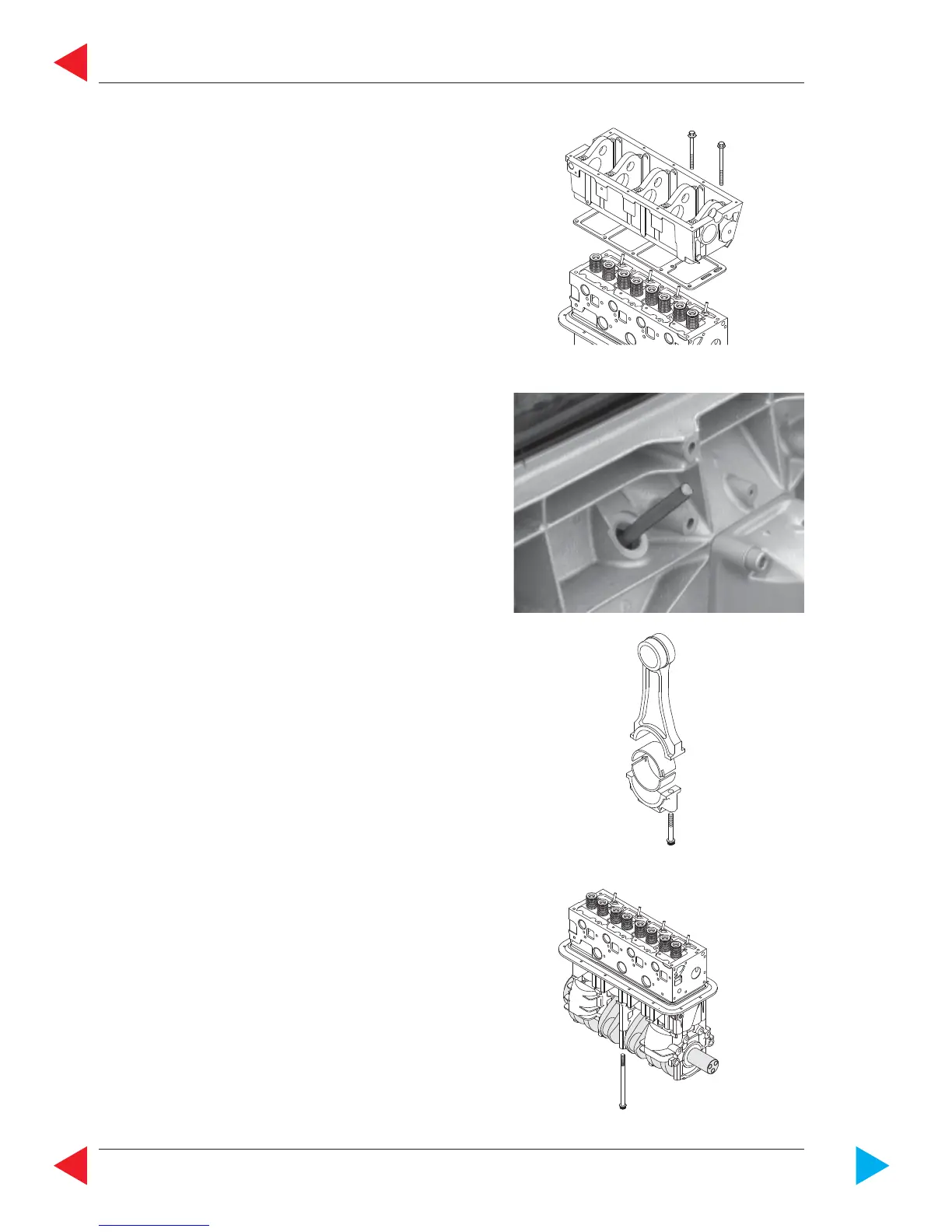

H Tightening Torques
H 1 Listing of Tightening Torques
Camshaft Housing
Screw joint to cylinder block
1. step: 15 Nm +/- 2
2. step: 25 Nm +/- 1
Tighten screws of camshaft housing in two
steps in precedence of numbering on bearings
(from the inside outwards).
Plug screw for locking pin
in engine housing
50 Nm +/- 5
Connecting rod screws
(apply oil to thread and screwhead support)
1. step: 10 Nm +/- 1
2. step: 30 Nm +/- 3
3. step: 75° +/- 4°
Main bearing screws
(apply oil to thread and screwhead support)
1. step: 35 Nm +/- 3
2. step: 45° +/- 4°
3. step: 45° +/- 4°
