03.08 CONTROL SOLENOID
03.08.01 Remove control solenoid
Prepartion: for 4 cyl. engines only
remove intercooler,
refer to 01.08.01.
1 Disconnect battery.
For 4 cyl. engines only (item 2-3)
2 Loosen plug connection (ill.2/pos.1) for control rack
potentiometer.
3 Remove plug from control solenoid (ill.2/pos.2).
For 6 cyl. engines only (item 4-11)
4 Unscrew 3 hexagon screws (SW10) (ill.3/pos.1) of
upper timing belt covering.
5 Unscrew 2 hexagon screws (SW10) (ill.4/pos.1) of
front control solenoid covering.

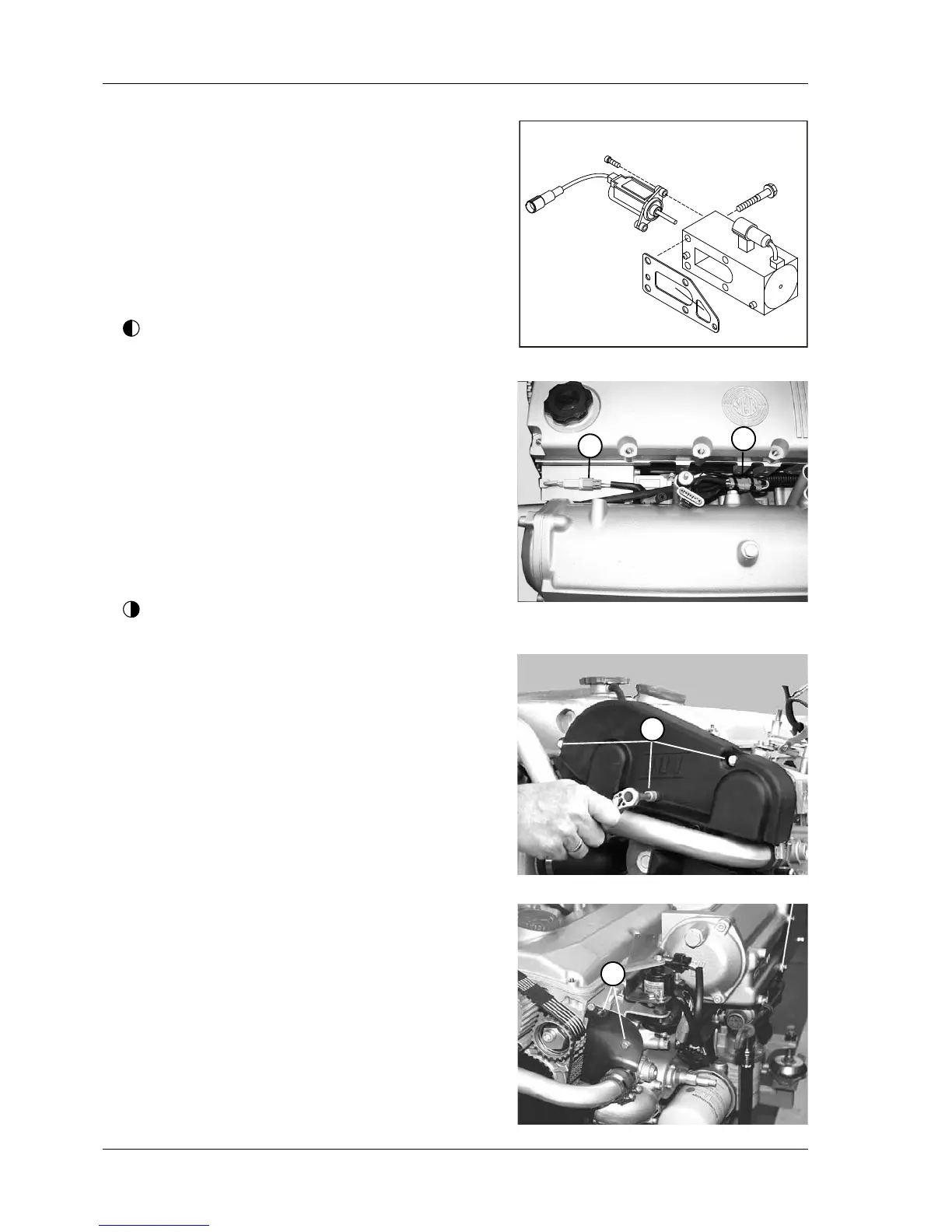

08.01 ill.2
08.01 ill.3
08.01 ill.4
08.01 ill.1
1
2
1
1
