SERVICE MANUAL MARINE ENGINES
03 FUEL SYSTEM
6 Loosen 2 hexagon nuts (SW10) (ill.5/pos.1). Remove
boost pressure sensor.
7 Loosen plug (ill.5/pos.2) for potentiometer accele-
rator.
8 Loosen 3 hexagon nuts (SW10) (ill.5/pos.3). Remove
bracket with potentiometer accelerator.
9 Remove plug (ill.5/pos.4) for sensor of control rod.
10 Remove plug (ill.6/pos.1) from control solenoid.
11 Loosen 4 hexagon screws (SW13) (ill.6/pos.2) on
control solenoid housing; Remove control solenoid
assembly. Remove seal and dispose.
For 4 cyl. engines only
12 Loosen 4 hexagon screws (SW13) (ill.7) on control
solenoid housing, remove control solenoid assembly.
Remove seal and dispose.

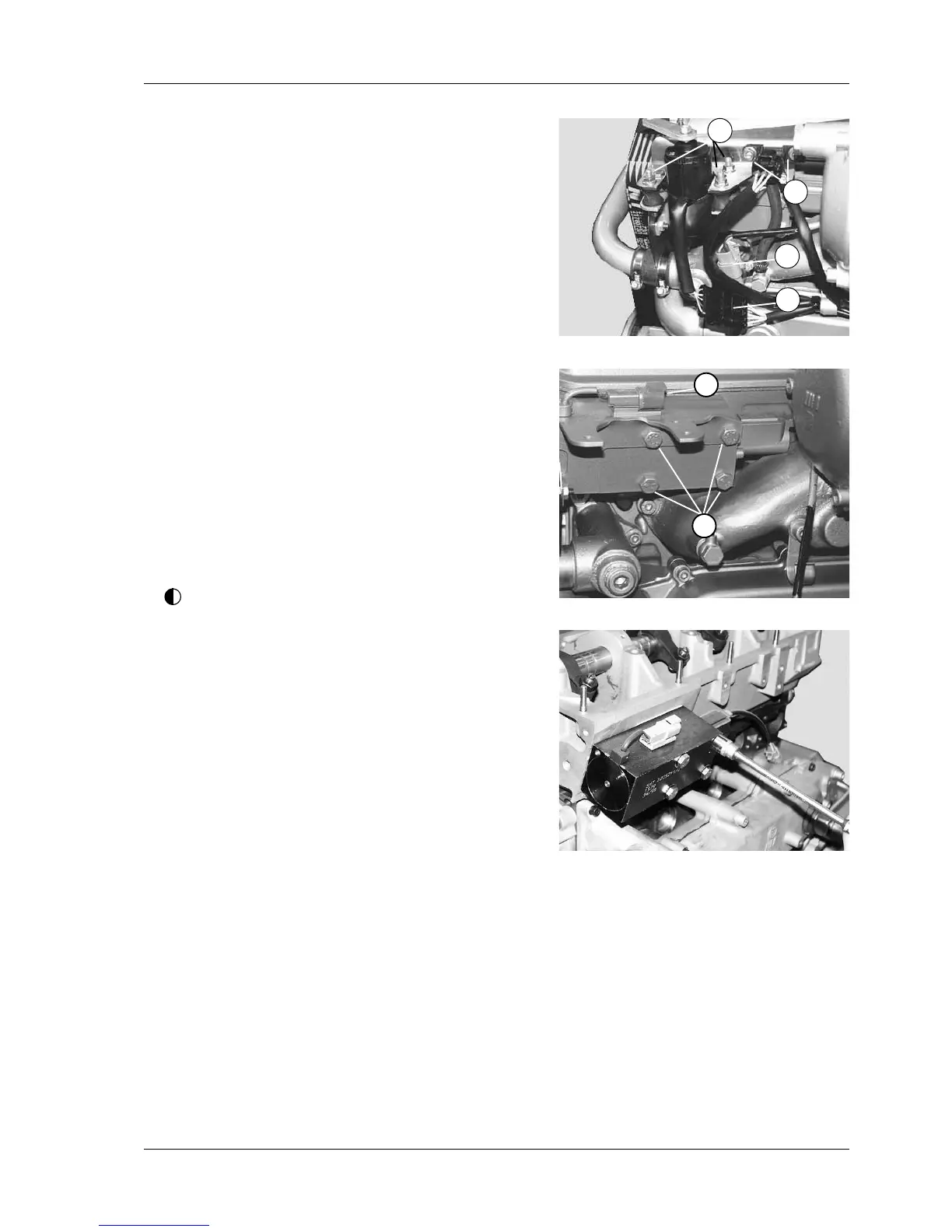

08.01 ill.5
08.01 ill.7
08.01 ill.6
