06 ELECTRICAL SYSTEM
Page ELECTRICAL SYSTEM - 44 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES

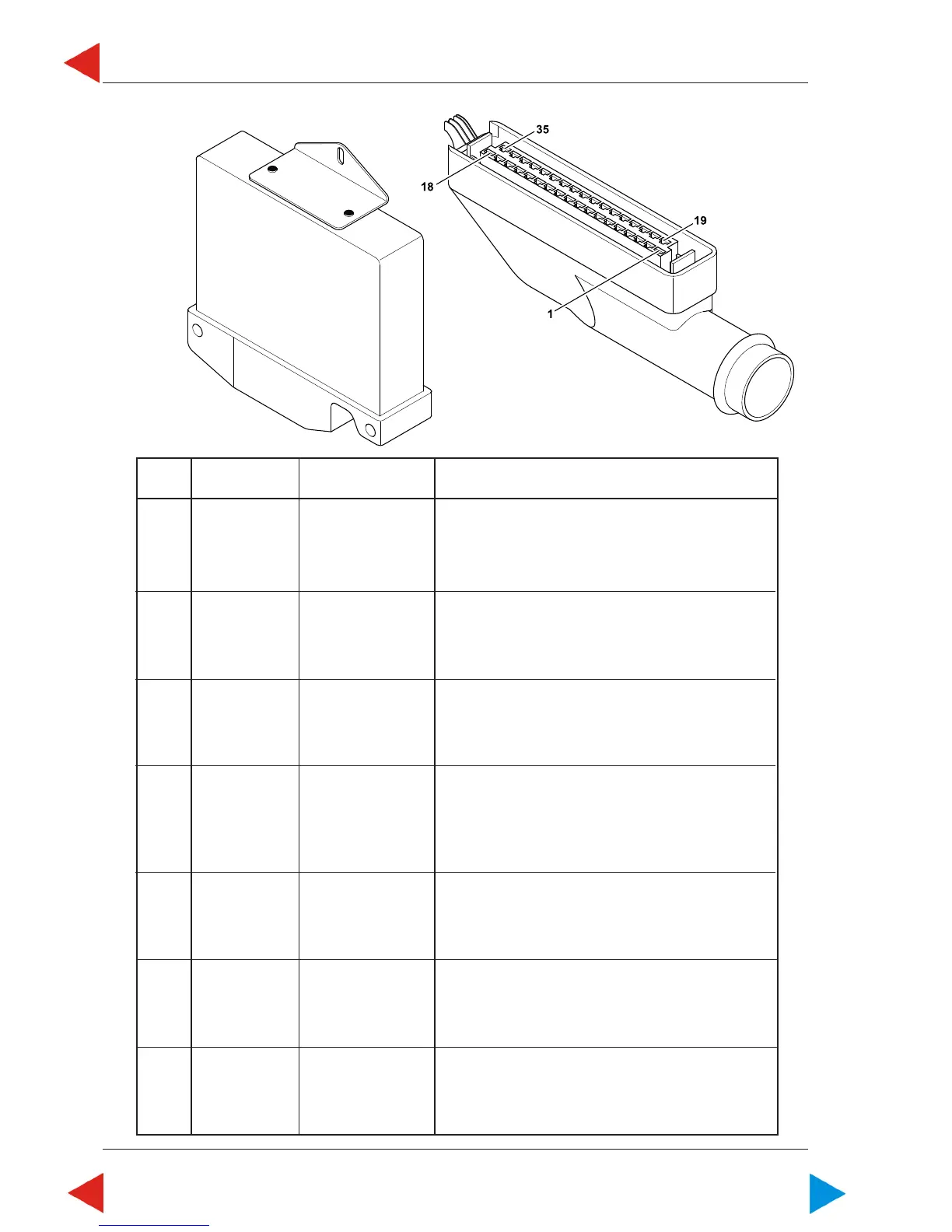

06.06.08 Connection A5 and X5
Pin Cable no. Designation Explication
1 30012 / 01 Vbat terminal 30
2 31000 / 06 GND terminal 31
3 15100 / 01 Vref + 5V
4 free free not busy
5 free free not busy
6 60616 / 01 GPL oil pressure lamp L3
7 31555 / 01 GPR preheating relay
8 60613 / 01 Tacho speed instrument
9 60114 / 01 ECT engine coolant temperature sensor
10 60117 / 01 LPS oil pressure sensor
11 60112 / 01 RPOS pot. rack position
12 60111 / 01 PED1 pedal 1
13 50000 / 01 CRI start signal identification
14 60122 / 01 CLS gear switch
15 60900 / 01 CANH canbus high
16 60901 / 01 CANL canbus low
17 15012 / 01 VPROT2 direct supply line to control solenoid
18 15012 / 02 VPROT protected 12V (after K27 and protective
wiring in governor)
19 15000 / 03 IGN ignition terminal 15
20 31100 / 01 Gnd Vref sensor ground connection
21 free free not busy
22 31554 / 01 FPR fuel pump relay
23 60810 / 01 CEL check engine lamp
24 31558 / 01 MR main relay (K27)
25 31615 / 01 WOUT warning horn
26 60614 / 01 TEMP temperature display
27 60118 / 01 EXT exhaust gas water temperature
28 60110 / 01 MAP boost pressure sensor
29 60706 / 01 AUX fixed speed
30 60116 / 01 PED2 pedal 2
31 60123 / 01 WS warning switch / Solas inversion switch
32 60808 / 01 ISO ISO 9141 (diag. cable)
33 60113 / 01 RPM engine speed sensor
34 free free not busy
35 31409 / 01 FMS approach line for control solenoid
06.08 ill.1
