01 ENGINE
Page ENGINE - 58 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
01.05.05 Replace rocker arm shaft
Preparation: Disassemble camshaft housing
cover, 01.05.01.
Loosen setscrews of unit
injector on rocker arm.
1 Remove half-moon rings (ill.1/pos.1) on both sides
of rocker arms.
2 Variant 1:
Extract axial holder (ill.2) of camshaft and rocker
arm shaft.
3 Variant 2:
Extract axial half-moon rings (ill.3) of rocker arm
shaft (2x)
(same as for rocker arms)
4 Displace rocker arm, remove slide rings, remove
rocker arms one by one and pull out rocker arm
shaft towards cyl. 4 or 6. (ill.4).

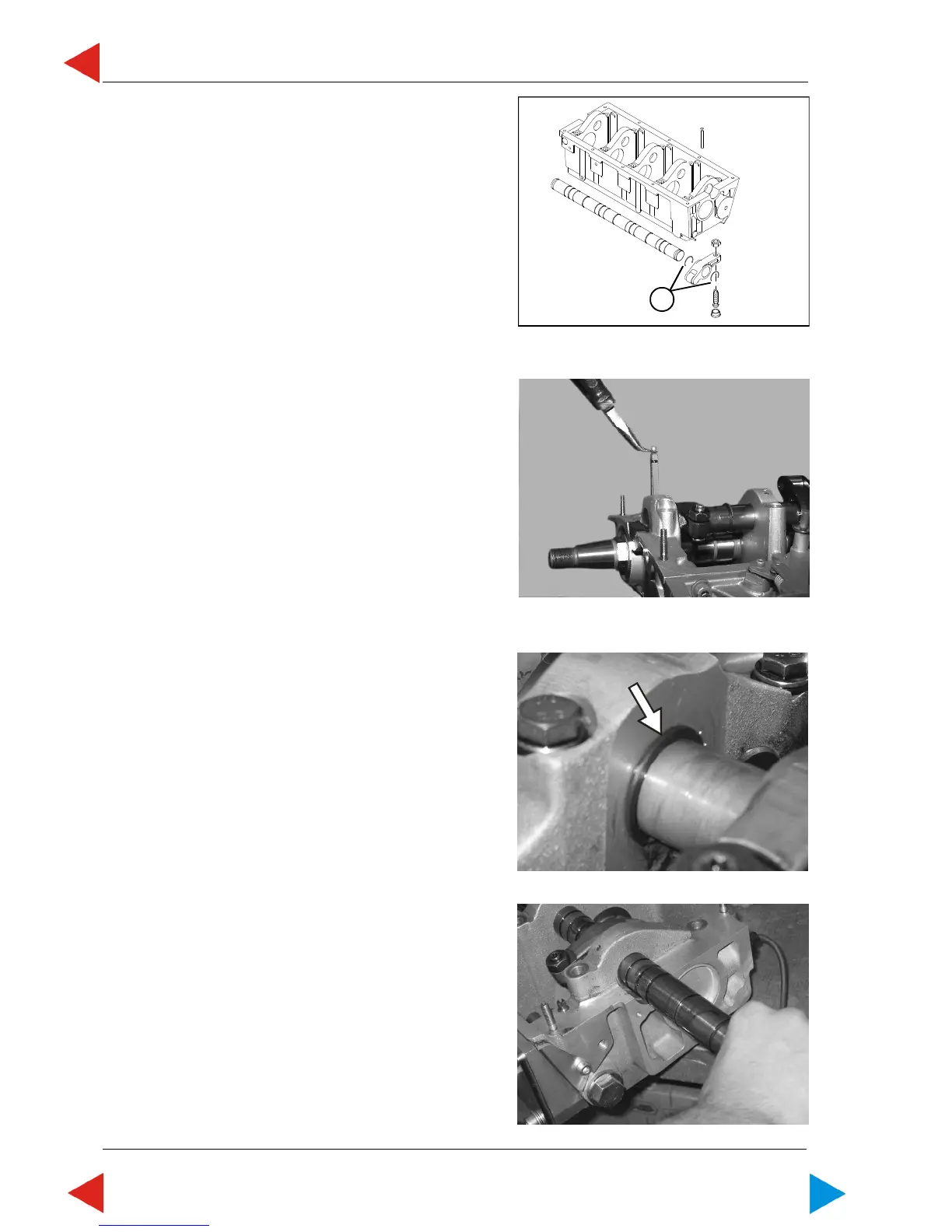

05.05 ill.1
05.05 ill.2
1
05.05 ill.3
05.05 ill.4
