01 ENGINE
Page ENGINE - 50 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
For 6 cyl. engines (item 13-15)

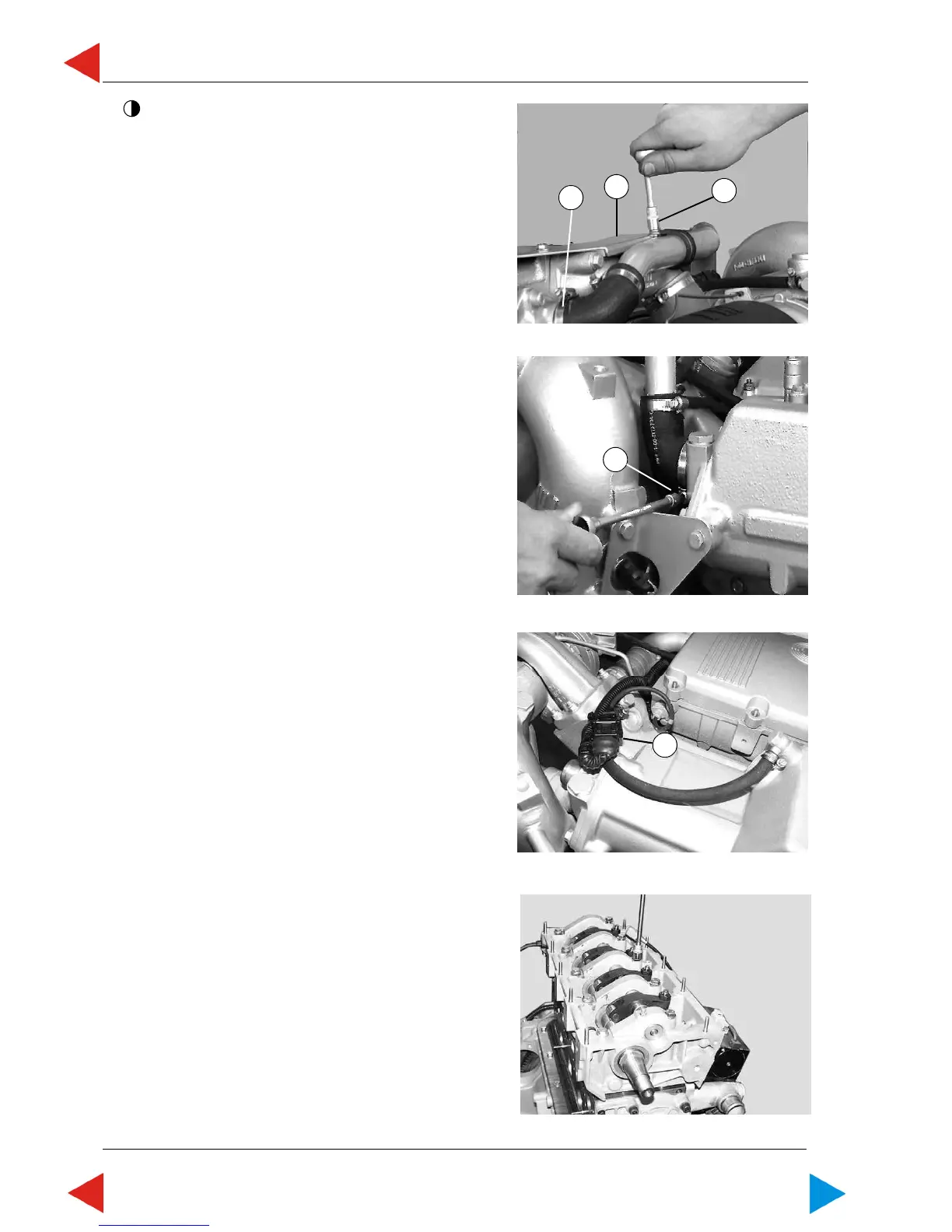

13 Loosen setscrews (ill.8/pos.1) for support of raw
water pipe.
14 Loosen hose clamp (ill.8/pos.2 and ill.9/pos.1) and
dismantle raw water pipe and bend.
15 Dismantle cover (ill.8/pos.3) to intercooler by loosening
5 hexagon screws (SW10).
16 Disconnect speed sensor (ill.10/pos.1).
17 Loosen hexagon screws (SW13) (ill.11).
18 Remove camshaft housing upwards.
Remove sealing.
05.01 ill.10
05.01 ill.11
C
1
C
1
C
2
C
3
C
1
05.01 ill.9
05.01 ill.8
