Z001019/0_6_July 2008 Page ENGINE - 83
01 ENGINE
SERVICE MANUAL MARINE ENGINES
4 Clean marked sealing surface (ill.4) with scraper and
remove O-Ring.
Assembly oil cooler
Replace O-ring on adaptor main oil duct and slightly
grease with Staburax NB U4 before assembly. When
putting on the engine oil cooler, immediately fix the
water intake of the oil cooler on the hose albow of the
water pump . Take care that the engine oil cooler is
led parallel to the assembly surface (O-ring may be
damaged in main oil duct ill.6/pos.1). Replace O-
rings of oil hoses and grease with Staburax NB04.
Filling refer to 05.00.08
Filling - closed cooling system.
NOTE: Cover the three contact surfaces with
surface sealing agent LOCTITE 5900
Tighten 4 allen head screws with a
torque of 23 Nm +/- 2.
Secure union nuts of oil hoses with
LOCTITE 243 and tighten with a torque
of 20 Nm +/-2.
Further assembly is done in reverse order of
disassembly.

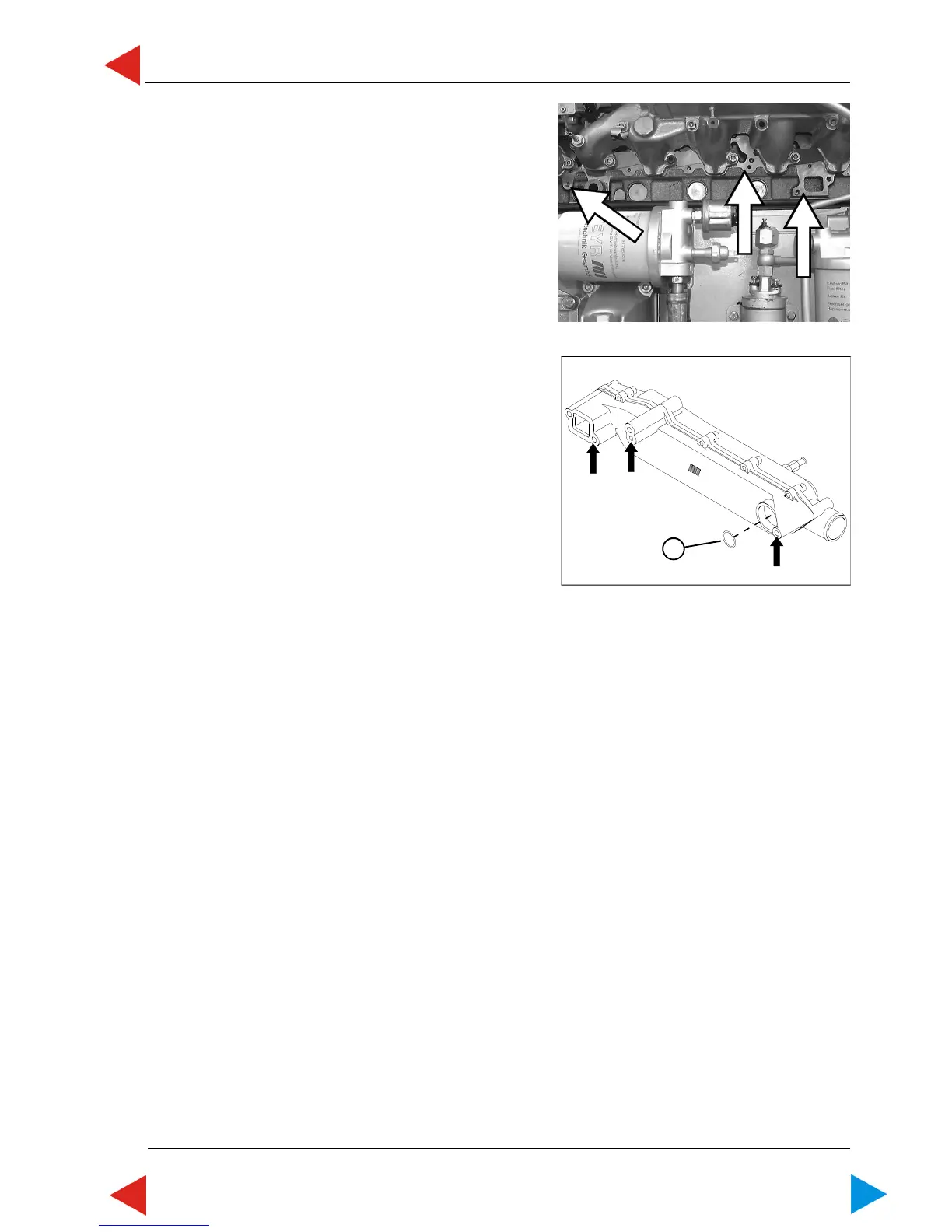

13.01 ill.5
1
13.01 ill.4
