Assembly
For 4 cyl. engines only (item 1-3)
1 Place new fuel pump.
2 Mountlterbracketwithholdingstrapbymeansof
2 hexagon screws.
3 Attachfuellinebetweenlterandpump(ill.9/pos.1)
as well as pump and block (ill.9/pos.2). Tighten hollow
screws with a torque of 30 Nm +/-3.
For 6. cyl. engines only (item 4-7)
4 Mount bracket in correct position onto new fuel pump.
Tighten screws of bracket.
5 Mountpumpandgroundwireonlterplateandxwith
two hexagon screws (ill.10/pos.1). Tighten screws
with a standard torque of 10 Nm +/-1 .
Torque wrench No. 2300704/0.
Fix ground cable together with bracket.
6 Mount adaptor with Cu-sealing rings at top face of
fuel pump.
7 Attachfuellinesbetweenlterandpump,aswellas
pump and block. Tighten hollow screws with a torque
of 30 Nm +/-3.
ATTENTION: Hold up with second wrench on he-
xagon of pump housing, to avoid a
damage to the E-pump.
Always use new Cu-sealing rings.
8 Connect two cables to negative terminal (-) and to
positive terminal (+). Cover the two terminals with
neoprene lacquer sealing No. P/N Z909570/0.
9 Connect battery cables.
10 Connect fuel lines and operate electric fuel pump
3 times for 10 sec., to bleed fuel system.
11 Check fuel system for leakage.ò
(No. 2300719/1, mount fuel return line)
1
2
+
-

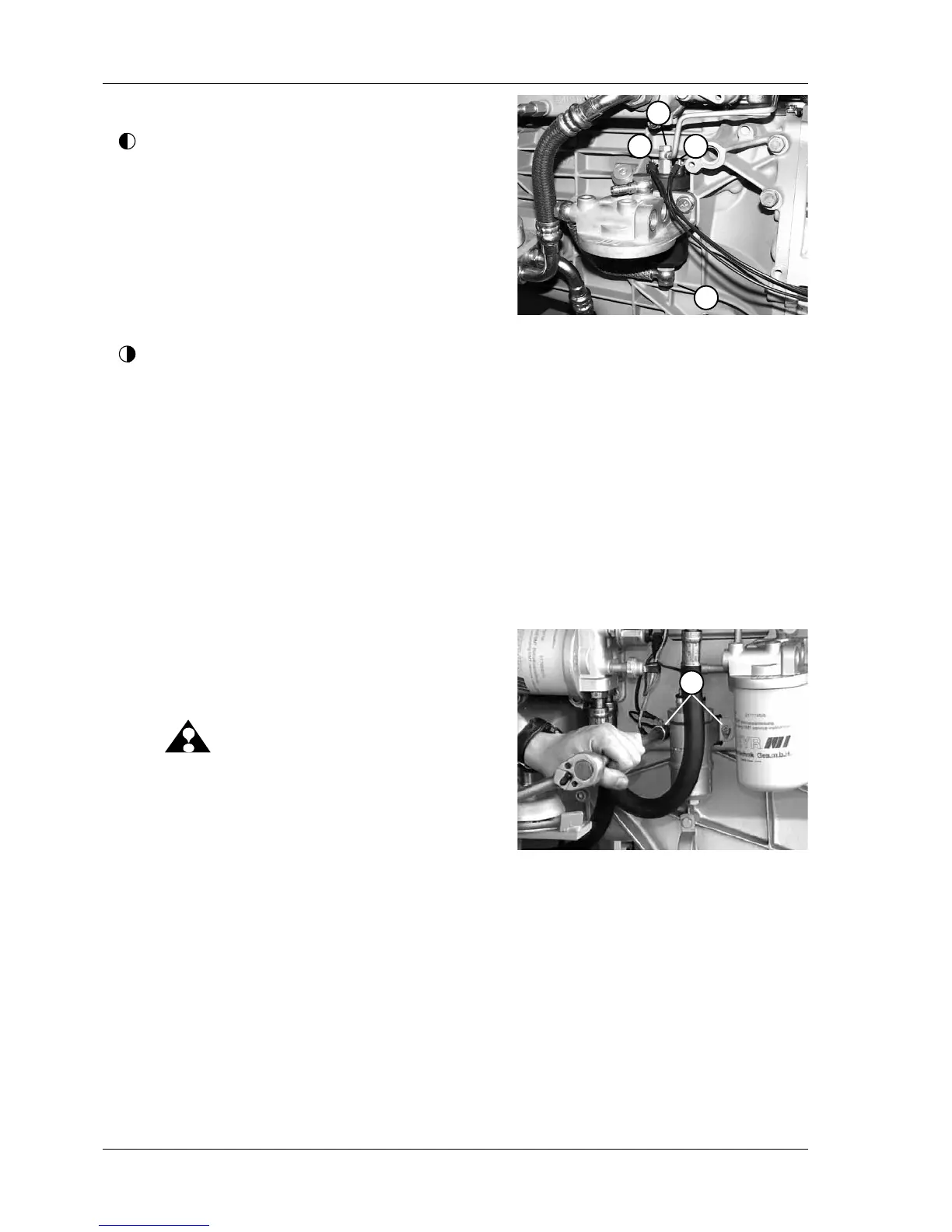

02.01 ill.9
