7 Move the rocker arm towards timing belt side of engine
and remove the tappet.
NOTE: Adjusting screw and slide cup match
exactly and thus have to be removed
kept matched.
8 Check position of control link(s) against bulkhead
as illustrated.
9 Insert the unit injector lever SMO No. VR00126/0
below the camshaft and push upwards against the
body of unit injector. The unit injector is thus lifted out
from the engine block and may be removed manually.
NOTE: For disassembly of the unit injector
from cylinder No. 1, the control rack
is to be moved forward.
10 Removeunitinjectorwithmountingange.

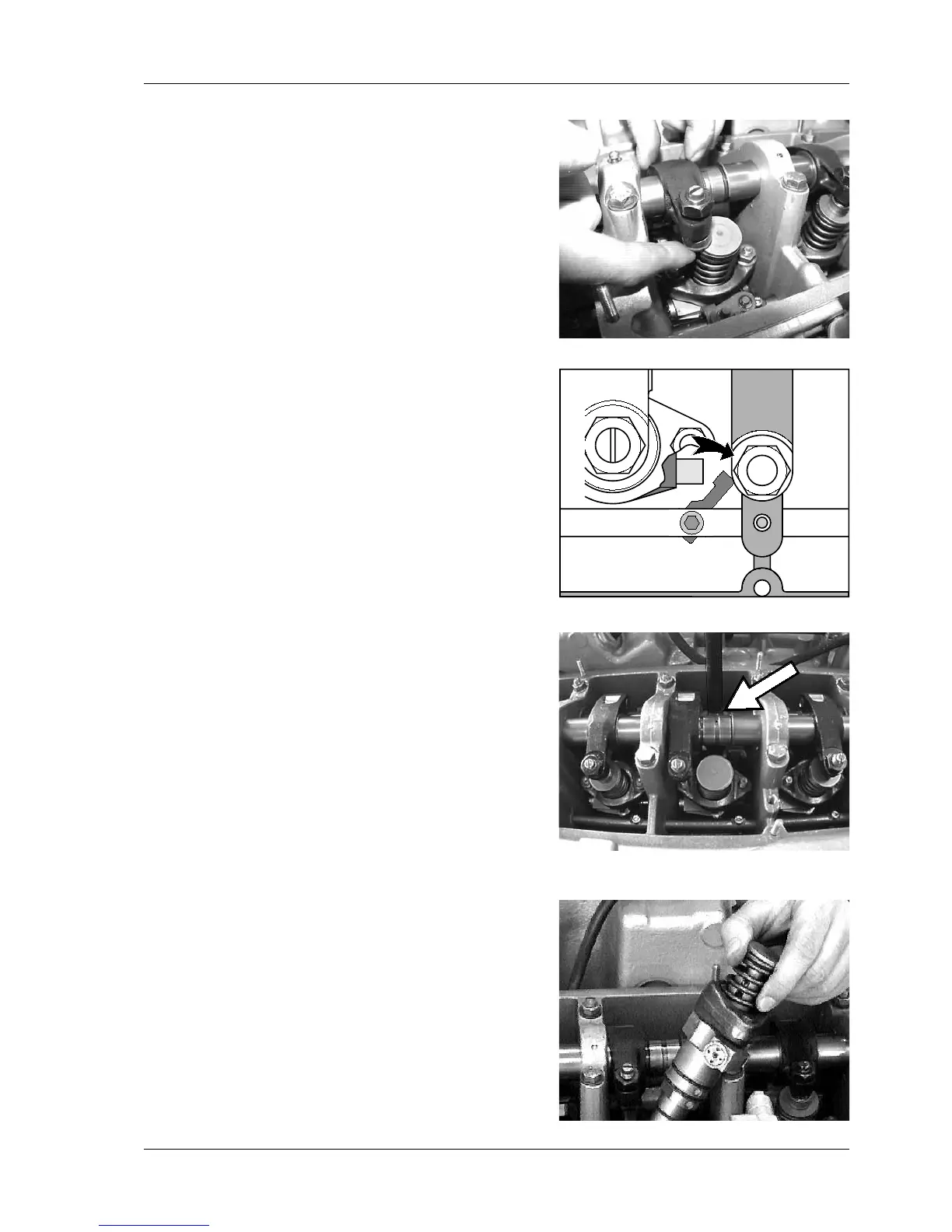

02.02 ill.12
02.02 ill.9
02.02 ill.10
02.02 ill.11
