Page FUEL SYSTEM - 12 Z001019/0_7_July 2012
03 FUEL SYSTEM
SERVICE MANUAL MARINE ENGINES
8 Pushunitinjectorrmlydownwardsinordertoposition
it correctly with the O-rings.
9 Lubricate slide cup with motor oil, put it onto adju-
stment screw, as shown, and shift it together with
rocker arm onto unit injector.
10 Install retainer ring to secure the rocker arm.
11 Screw on ange nuts (hexagon nuts SW 13) and
tighten evenly. Absolutely tighten nuts with a torque
of 18 /-2 Nm.
ATTENTION: Payattentiontohorizontalinstallation
ofmountingange.

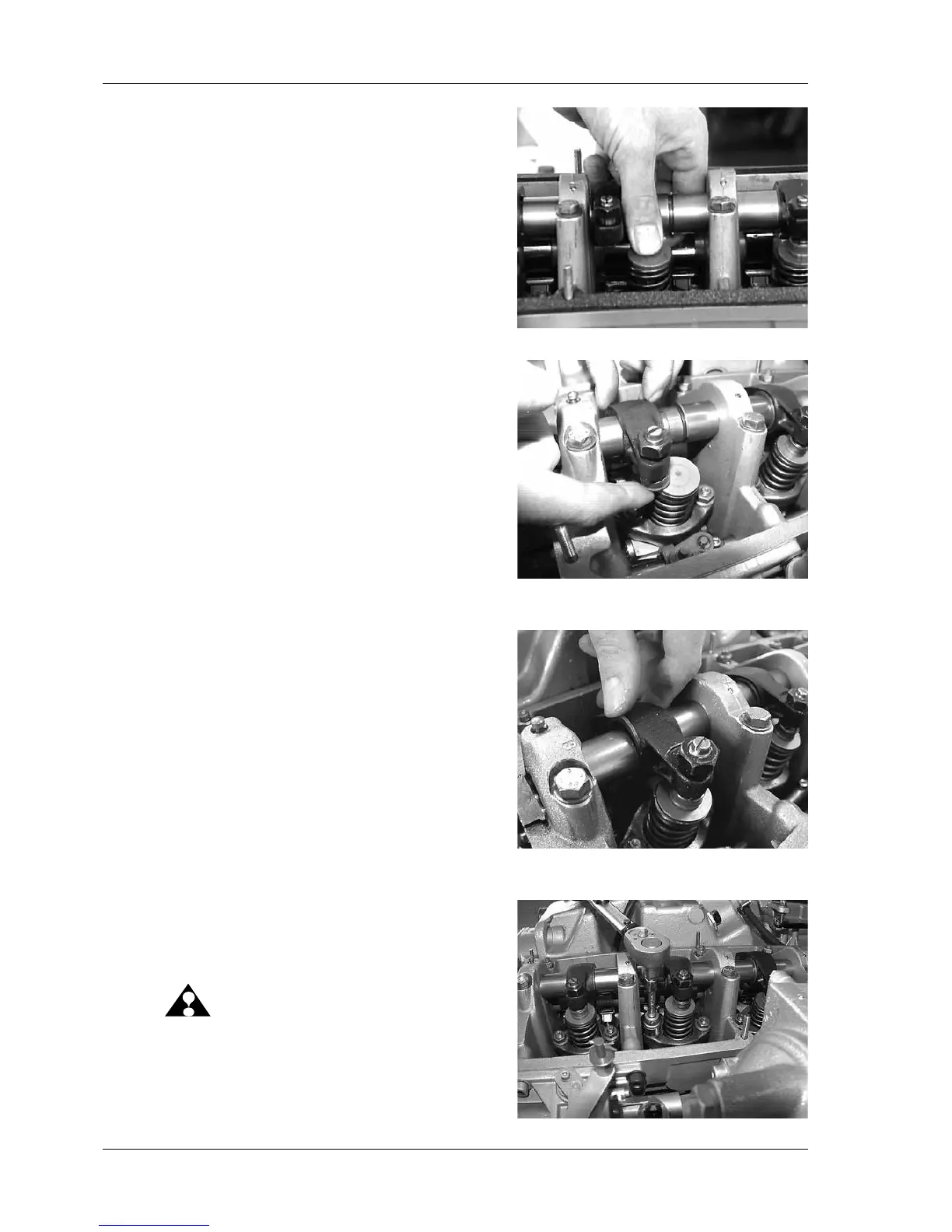

02.02 ill.21
02.02 ill.22
02.02 ill.23
02.02 ill.24
