Z001019/0_8_Octobre 2011 Page GENERAL-13
GENERAL
SERVICE MANUAL MARINE ENGINES
ToC

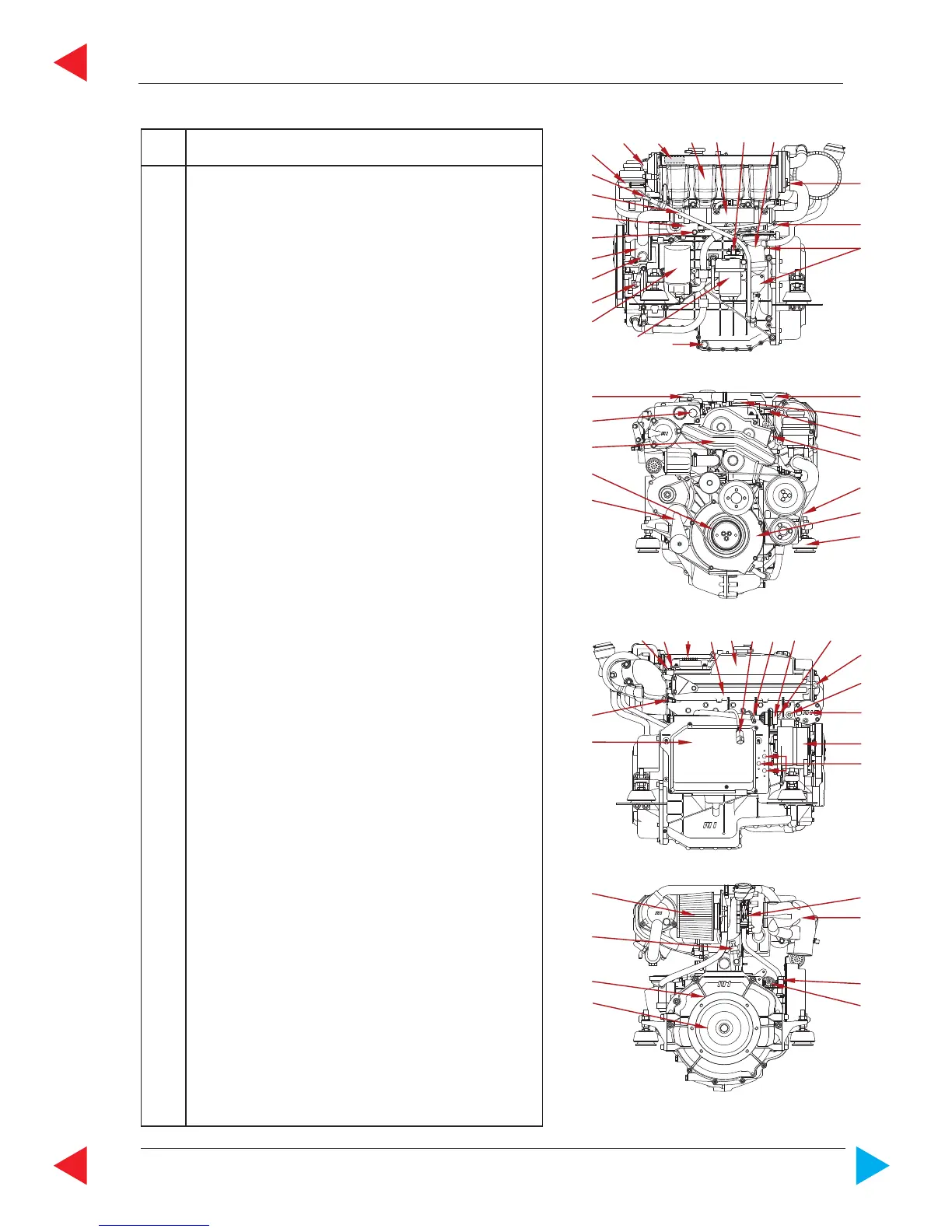

Overview for all STEYR 4 Cyl. Marine Engines
06001
19
18
17
16
15
14
13
12
11
15
1
4
7
8
23
6
10 9
06002
31
30
22
23
24
21
25
26
27
20
29
28
38
06003
44
43
136
15
34
40
41
1
3932 33
37
42
35
06004
45
52
51
50
46
47
48
49
Item Designation
1 Zinc Anode (4 Units)
2 Model and Serial Number
3 Intercooler
4 Fuel/Oil Cooler with Raw Water Drain Plug
5 Fuel Pump
6 Oil Seperator
7 Raw Water Drain Plug
8 Valve Crankshaft Housing Ventilation
(only SOLAS)
9 Oil Drain Plug
10 Fuel Filter
11 Oil Filter
12 Hydraulic Pump
13 Raw Water Inlet Fitting
14 Raw Water Pump
15 Coolant Drain Plug (2 Units)
16 Engine Oilcooler
17 Oil Suction Pipe
18 Oil Dipstick
19 Hydraulic Oil Tank
20 Cooler Cap
21 Potentiometer Accelerator
22 Motor Oil Filler Cap
23 Boost Pressure Sensor
24 Rack Position Sensor *)
25 Drive Belt
26 Cover T-Belt, Lower
27 Engine Mount
28 Drive Belt Tensioner
29 Vibration Damper
30 Cover T-Belt, Upper
31 Engine Lifting Eye
32 Speed Sensor
33 Valve Cover
34 Heat Exchanger
35 Coolant Expansion Tank
36 Diagnostic Outlet
37 Inversion Switch (only for SOLAS)
38 Connector Instrument Panel
39 Coolant Temperature Sensor
40 Thermostat Housing
41 Alternator
42 Circuit Breakers
43 Engine Management System/Fuses
44 Exhaust Temperature Sensor
45 Air Filter
46 Turbo Charger
47 Exhaust Elbow
48 Starter Relais (Backside E-Box Ground Plate)
49 Starter Motor
50 Flywheel
51 Flywheel Housing
52 Oil Pressure Sensor
*) This sensor is magnetism sensitive. All external magnets must be kept away.
