Page COOLING SYSTEM - 18 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
05 COOLING SYSTEM

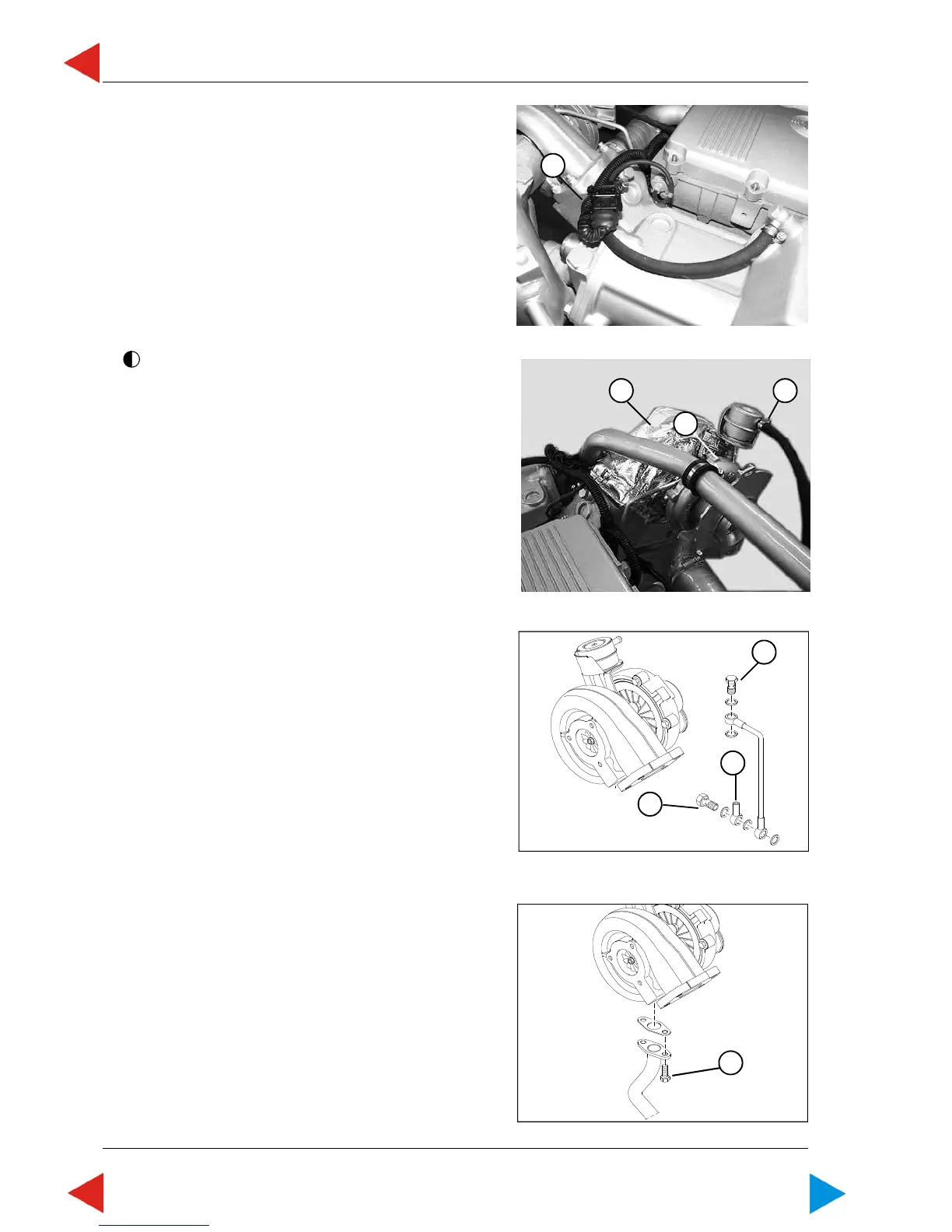

8 Cut cable tie for cable- and plug fixing of speed
sensor (ill.5/pos.1) on relief hose.
For 4 cyl. engines only (item 9-12)
9 Loosen fixing of heat protection. Remove heat
protection (ill.6/pos.1).
10 Loosen hose clamp (ill.6/pos.2) and remove hose
for air charge pressure box.
11 Loosen screw (SW10) (ill.6/pos.3) for raw-water-
pipe support.
12 Loosen hollow screw (SW14) (ill.7/pos.1) of oil feed
line on turbocharger.
13 Remove plug of oil pressure switch (ill.7/pos.2).
14 Loosen hollow screw (ill.7/pos.3) of oil feed line on
motorblock. Dispose Cu-sealing rings.
15 Loosen 2 hexagon screws (ill.8/1) of oil return line.
Dispose seal.
01.02 ill.5
01.02 ill.7
1 2
3
01.02 ill.6
01.02 ill.8
1
1
2
3
1
