Page COOLING SYSTEM - 20 Z001019/0_6_July 2008
SERVICE MANUAL MARINE ENGINES
05 COOLING SYSTEM

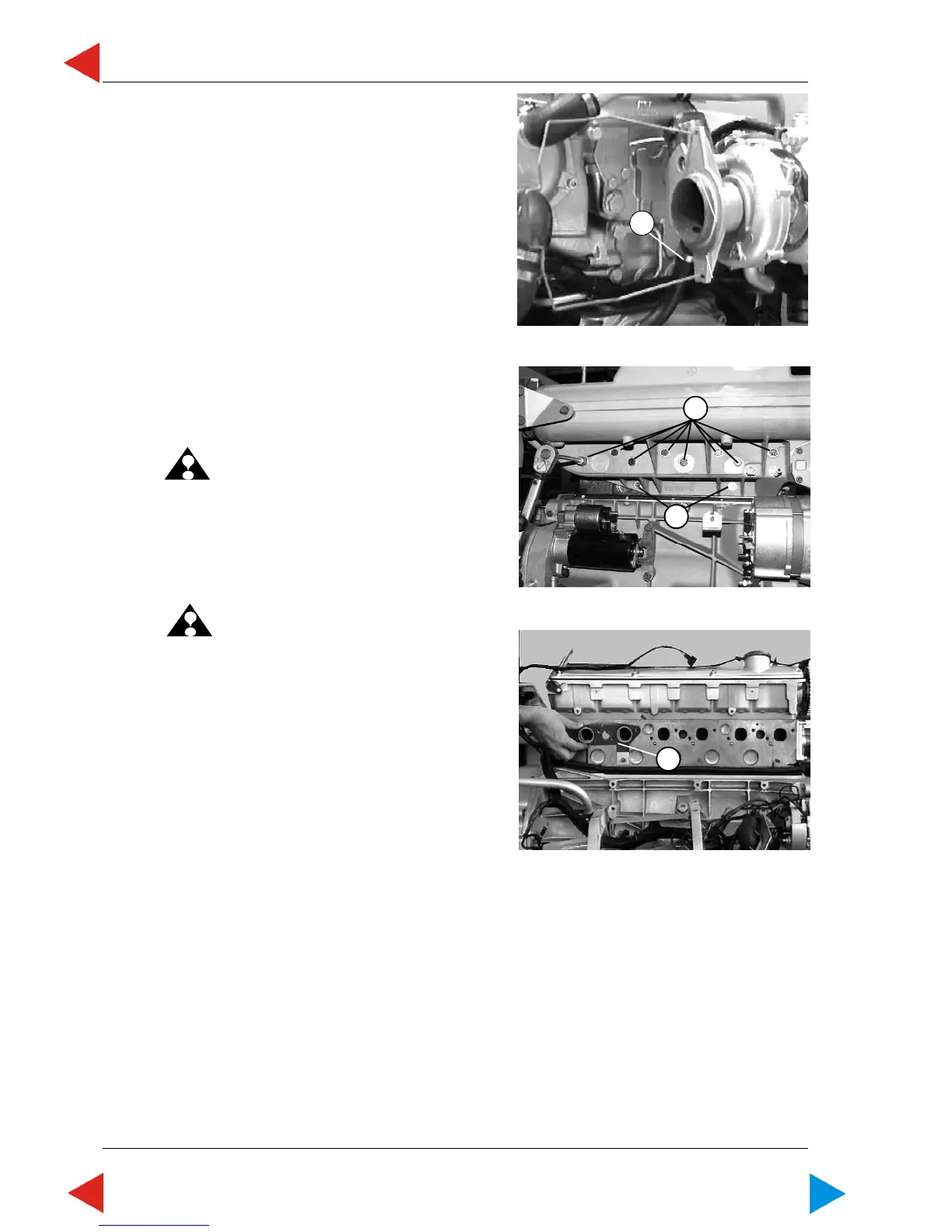

22 Loosen hose clamp (ill.13/pos.1) of oil separator and
remove hose.
23 Unscrew 8 - 12 screws (SW13) (ill.14/pos.1) and
2 - 3 nuts (ill.14/pos.2) .
CAUTION: If the exhaust manifold is not secured,
it migth fall when loosening the screws.
24 Remove exhaust manifold with turbocharger and
high-riser.
CAUTION: Heavy unit (approx. 40 kg).
Disassembly ONLY with suitable lifting
device or second person.
25 Remove O-rings or gaskets from exhaust manifold or
cyl. block, and dispose.
01.02 ill.13
01.02 ill.15
01.02 ill.14
1
1
2
1
