Z001019/0_6_July 2008 Page COOLING SYSTEM - 35
SERVICE MANUAL MARINE ENGINES
05 COOLING SYSTEM

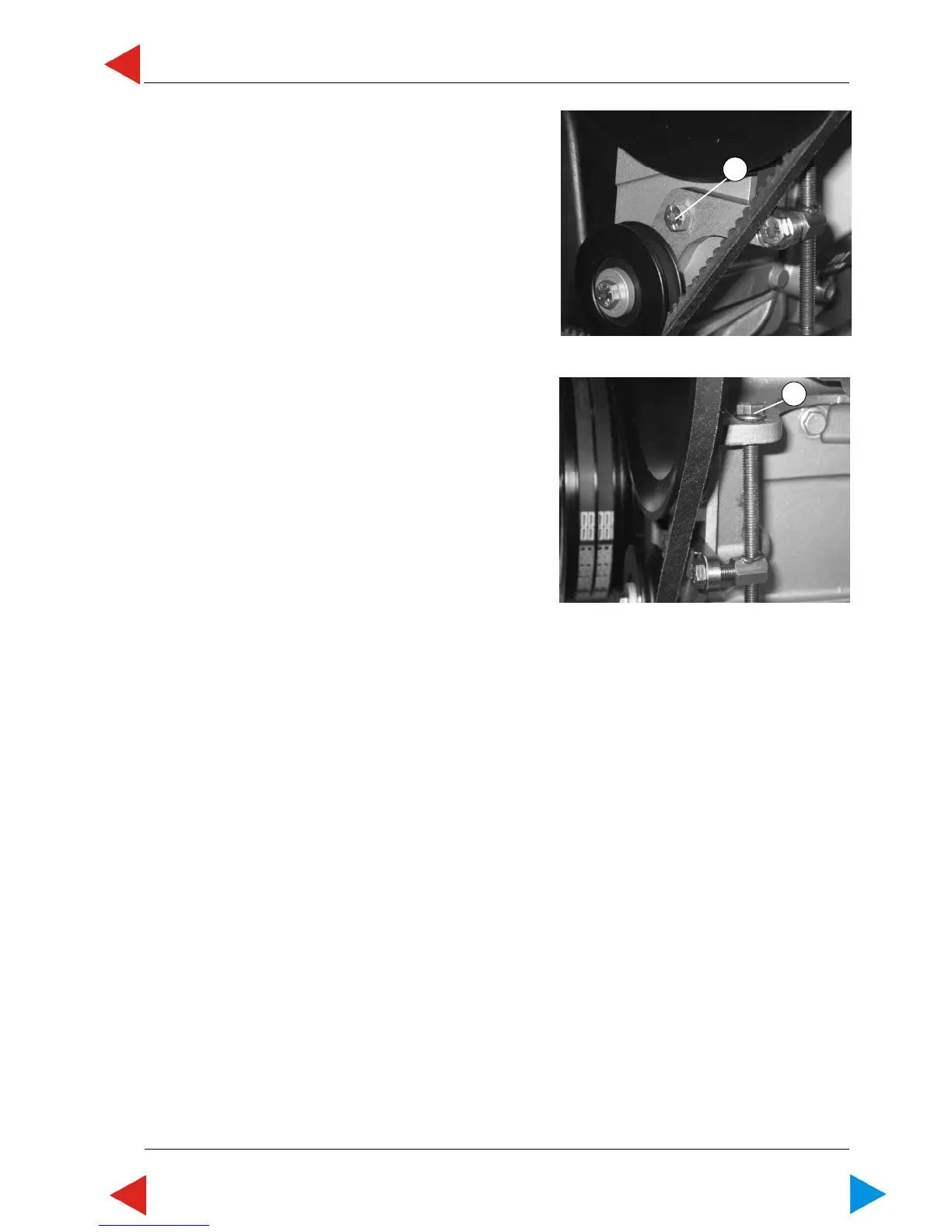

Raw water pump: (current version)
Preparation: Remove alternator V-belts.
1 Loosen screw (ill.5/pos.1).
Turn screw counter (ill.6/pos.1) clockwise to reduce
of tension V-belt.
2 Remove V-belt.
3 Assembly is done in reverse order.
4 Adjust V-belt tension; according 05.07.02
5 Tighten screw (ill.5/pos.1) with a
Torque of 23 N +/-2 to secure idler pulley bracket.
1
07.02 ill.5
07.02 ill.6
1
